Table of Contents

Connections

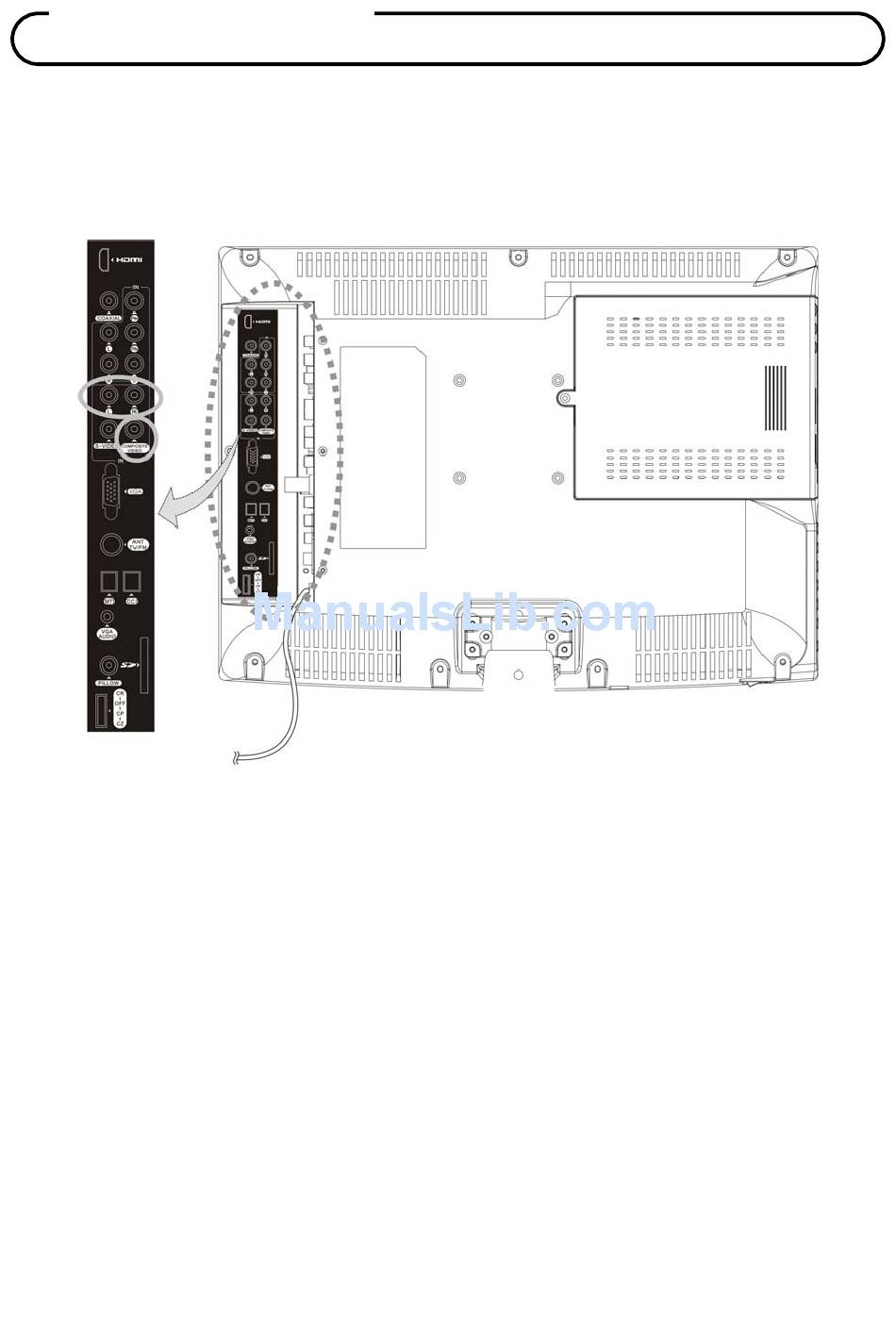

A/V IN

Connects composite video, and stereo or mono audio from devices such as VCR's, DVD's, and

Game Boxes.

1. Connect the audio outputs from the device (L, R) to the COMPOSITE VIDEO IN L & R on the

TV. Connections are color code.

2. Connect the video output from the device to the COMPOSITE VIDEO IN on the TV.

Connection is color-coded.

3. Verify that the COMPOSITE VIDEO mode is enabled in the Source Setup menu. Please see

"Source Setup" instructions elsewhere in this manual for details.

4. Press the TV/AV button repeatedly until COMPOSITE VIDEO appears in the lower right corner

of the screen indicating selection of COMPOSITE VIDEO.

5. Activate the device.

Document Number: PD196-120 Rev 2
