Controls

Rear Panel

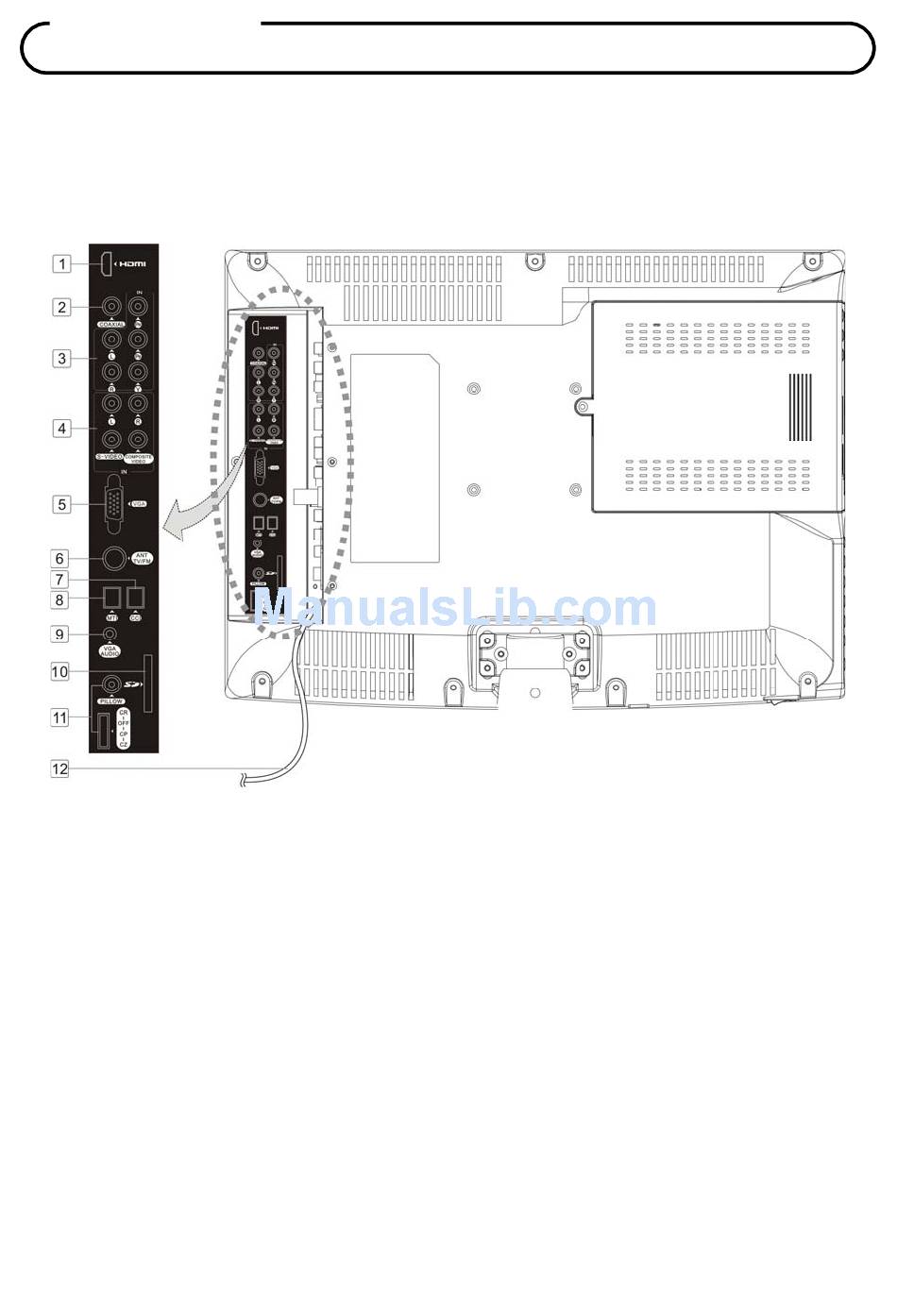

Open the back cover on the left side of the unit's rear panel and all the jacks will appear, as shown
on the figure below:
1. HDMI Jack
Connection for HDMI device.
2. COAXIAL OUT
Provides a digital audio output signal for
connection to an external digital audio
device.
3. COMPONENT IN
Connect the COMPONENT audio/video
output sockets of the DVD to the
COMPONENT audio/video input sockets
of the set.
4. COMPOSITE/S-VIDEO IN
Connect the Video outputs of external
equipment to this input.
Connect the output of an S-VIDEO VCR to
the S-VIDEO input.
Connect the audio cable from the external
equipment or S-VIDEO VCR to the L & R
IN of the set.
5. VGA IN
Connection to the video output jack on
your PC.
6. ANT TV/FM Jack
Connection to TV or FM antenna.
13
