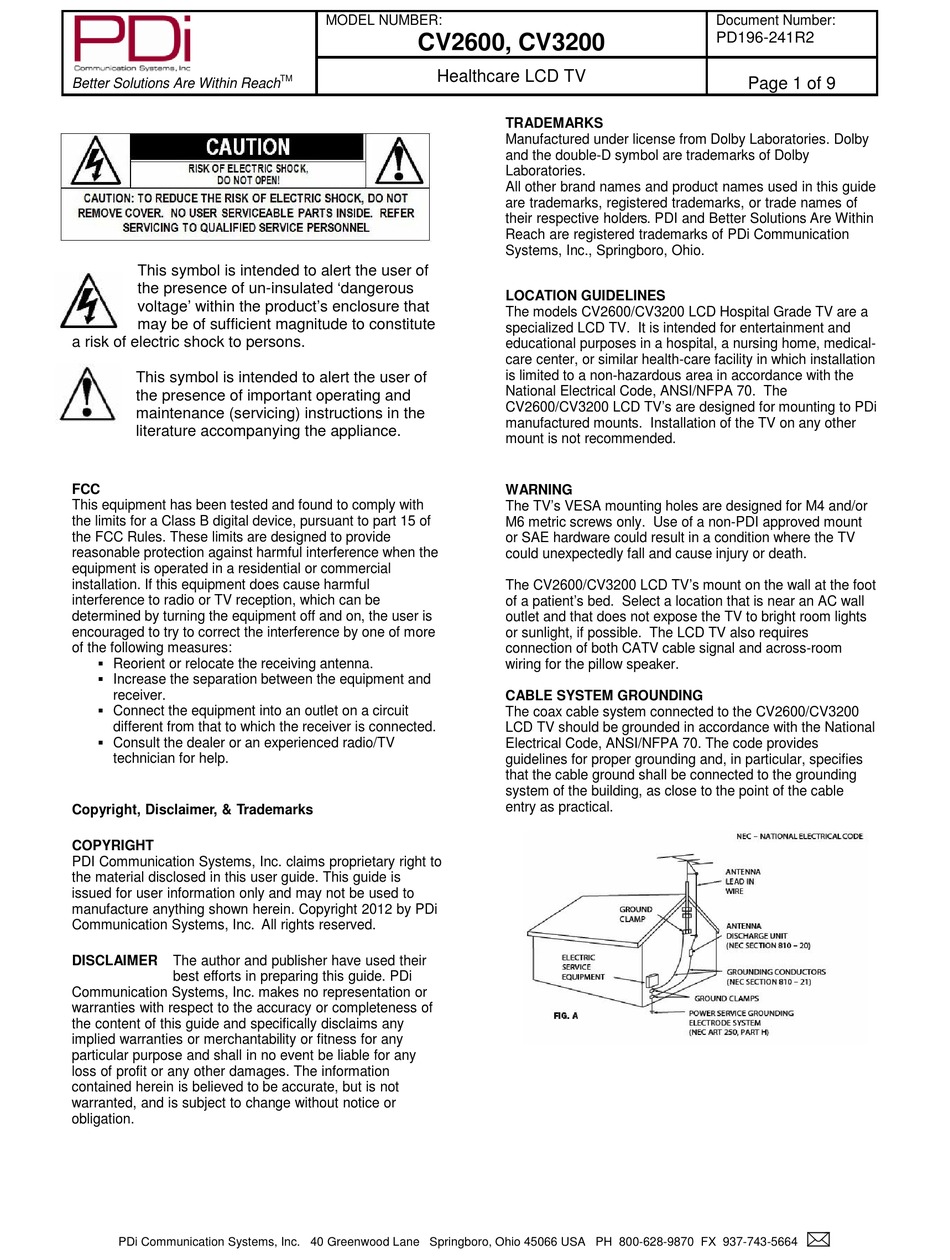

LOCATION GUIDELINES

The models CV2600/CV3200 LCD Hospital Grade TV are a
specialized LCD TV. It is intended for entertainment and
educational purposes in a hospital, a nursing home, medical-
care center, or similar health-care facility in which installation
is limited to a non-hazardous area in accordance with the
National Electrical Code, ANSI/NFPA 70. The
CV2600/CV3200 LCD TV's are designed for mounting to PDi
manufactured mounts. Installation of the TV on any other
mount is not recommended.
WARNING
The TV's VESA mounting holes are designed for M4 and/or
M6 metric screws only. Use of a non-PDI approved mount
or SAE hardware could result in a condition where the TV
could unexpectedly fall and cause injury or death.
The CV2600/CV3200 LCD TV's mount on the wall at the foot
of a patient's bed. Select a location that is near an AC wall
outlet and that does not expose the TV to bright room lights
or sunlight, if possible. The LCD TV also requires
connection of both CATV cable signal and across-room
wiring for the pillow speaker.

CABLE SYSTEM GROUNDING

The coax cable system connected to the CV2600/CV3200
LCD TV should be grounded in accordance with the National
Electrical Code, ANSI/NFPA 70. The code provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of the cable
entry as practical.
