PDi -P14T2 User Manual
  1. Manuals
  2. Brands
  3. PDi Manuals
  4. LCD TV
  5. PDI-P14T2
  6. User manual

PDi -P14T2 User Manual

Arm-mounted, healthcare-grade lcd hdtv with android
Hide thumbs Also See for PDI-P14T2:
Table of Contents

Advertisement

Quick Links

Download this manual

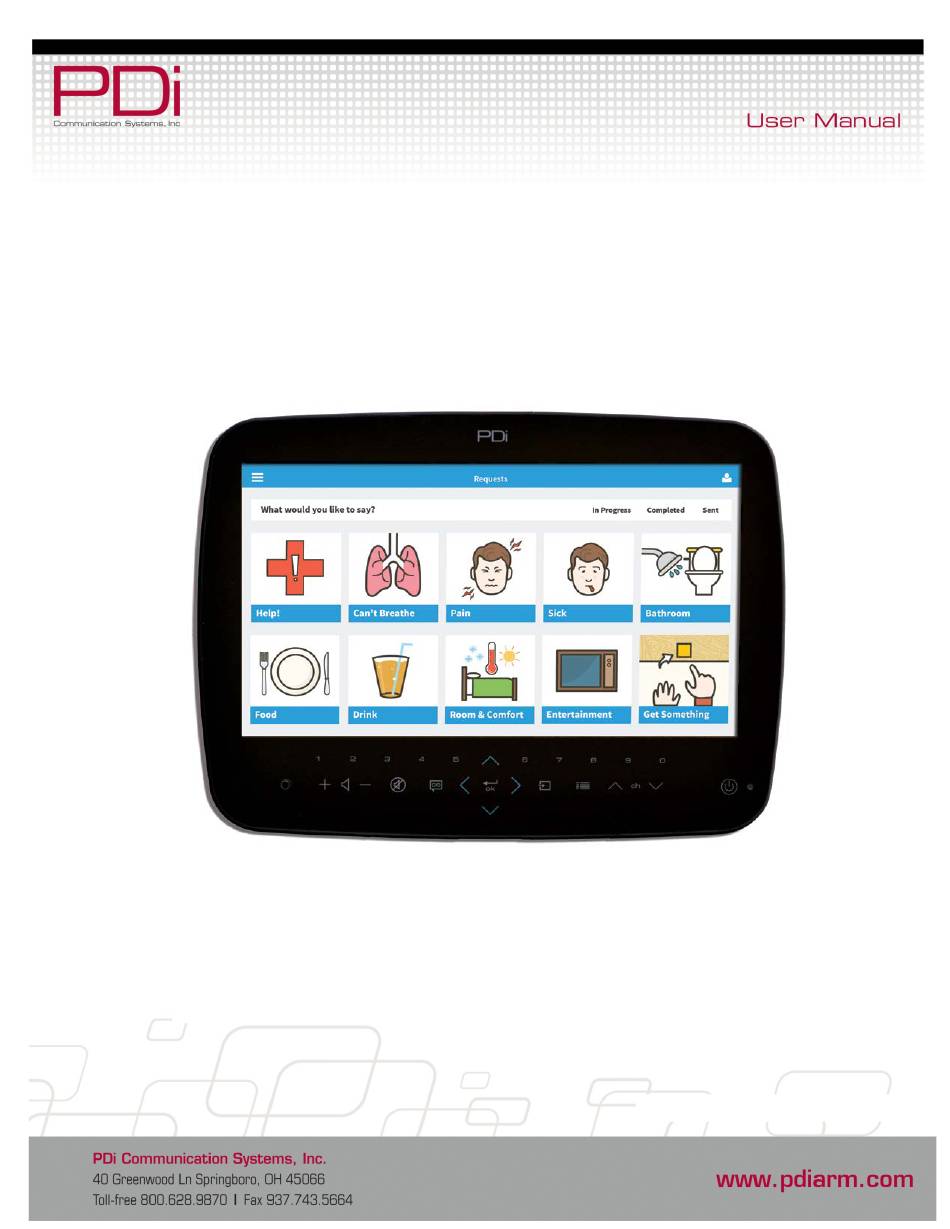

Document No: PD196-251R4
PDI-P14T2 LCD HDTV with Android
Page 1 of 64

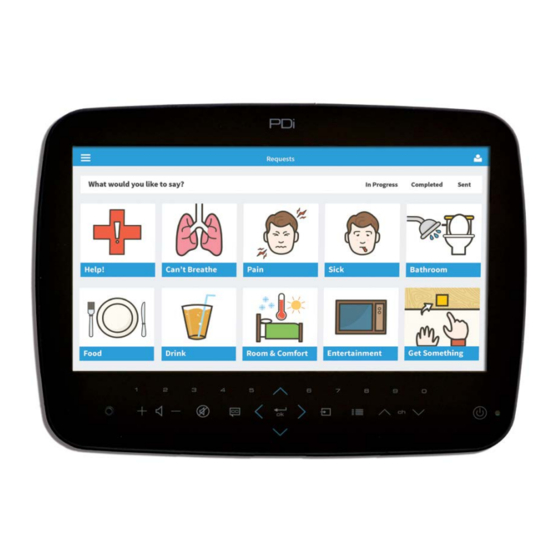

P14T2 shown with VerbalCare software system
PDI-P14T2
Arm-Mounted, Healthcare-grade
LCD HDTV with Android
Document Number: PD196-251R4
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
