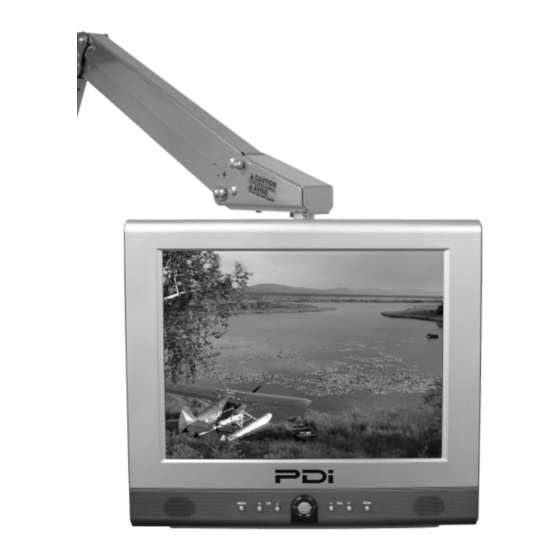

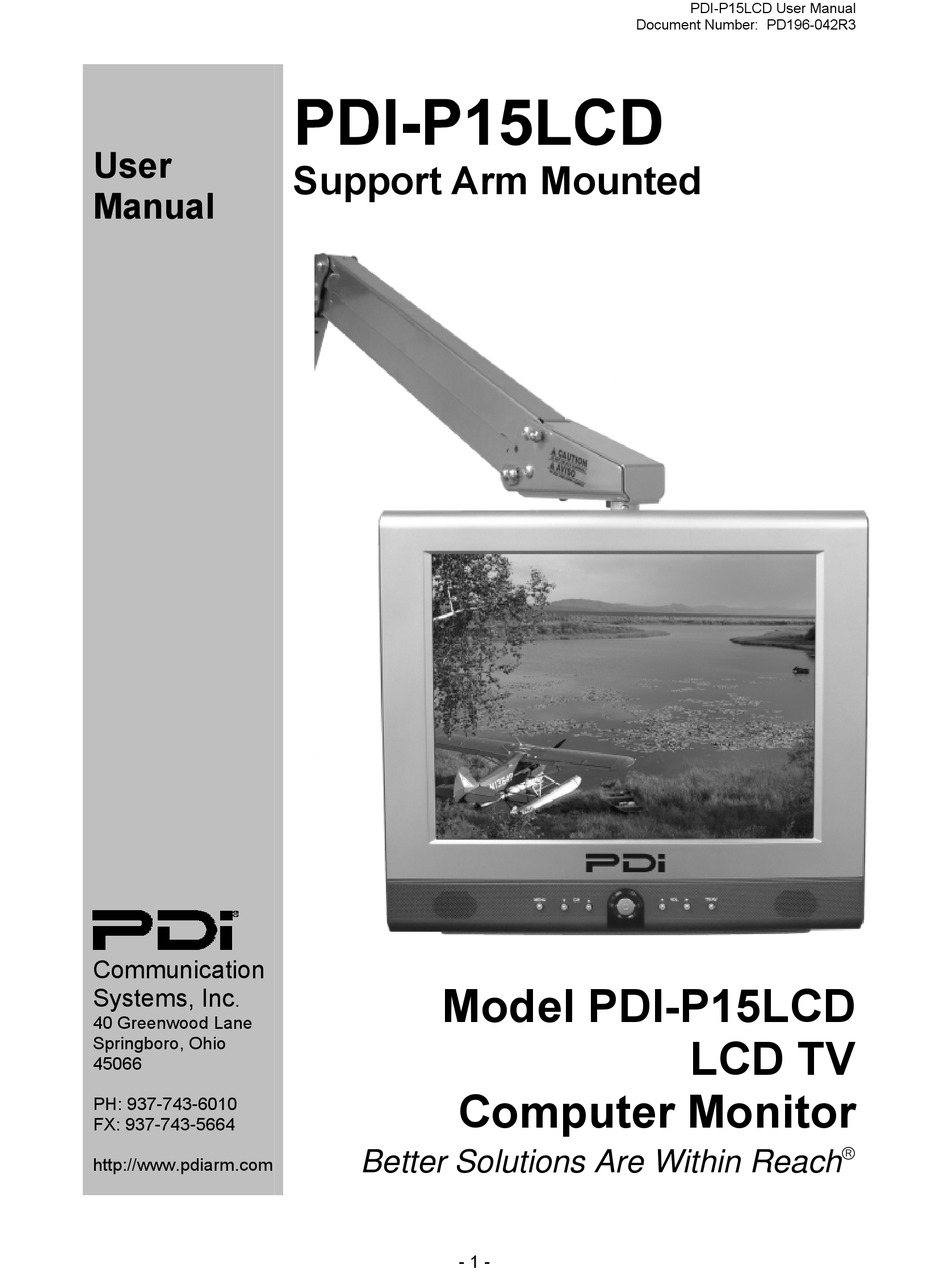

- Page 1 PDI-P15LCD User Manual Document Number: PD196-042R3 User Support Arm Mounted Manual Communication Model PDI-P15LCD Systems, Inc 40 Greenwood Lane Springboro, Ohio LCD TV 45066 Computer Monitor PH: 937-743-6010 FX: 937-743-5664 â Better Solutions Are Within Reach http://www.pdiarm.com - 1 -...
-
Page 2: Maintenance And Servicing
OXYGEN ENVIRONMENT WARNING: Do not use in any oxygen tent or oxygen chamber. Such use may cause a fire hazard. SUPPORT DEVICE The PDI-P15LCD requires a model PDI 400 or 500 series support arm for mounting. - 2 -... -
Page 3: Product Modification
POWER This set operates from a PDI-771-LCD power supply. The supply mounts in the support arm wall bracket and provides a clean installation. a. Connect the arm power cord that exits the base of the support arm. -
Page 4: Important Safety Instructions
Copyright, Disclaimer, and Trademarks COPYRIGHT PDI Communication Systems, Inc. claims proprietary right to the material disclosed in this user manual. This manual is issued for user information only and may not be used to manufacture anything shown herein. Copyright by PDI Communication Systems, Inc. All rights reserved. -
Page 5: Installation
National Electrical Code (NEC), ANSI/NFPA 70. The PDI-P15LCD TV is designed to be mounted and supported on either a PDI 400 or 500 series support arm. Select a location that is near a AC wall outlet and that does not expose the TV to bright room lights or sunlight if possible. - Page 6 PDI-P15LCD User Manual Document Number: PD196-042R3 Align Bottom Cover a. Insert studs “D” into slots “E”, being careful to not pinch any wires. Attach Bottom Cover a. Align (4) holes in “B” and “C”. Install (4) 10-32 x 3/8 Phillips head machine screws.
-
Page 7: Battery Installation
PDI-P15LCD User Manual Document Number: PD196-042R3 REMOTE BATTERY INSTALLATION 1. Pull the battery cover upward in the arrow direction to remove. 2. Insert two “AAA” batteries. Observe the correct polarity. 3. Replace the battery cover. USING THE REMOTE 1. Make sure there are no objects between the remote control and its sensor. - Page 8 PDI-P15LCD User Manual Document Number: PD196-042R3 Controls 1. MENU – Displays on screen menu. The Menu button can be disabled using the remote control to prevent patient and visitor tampering – see the “Special” menu and “Childlock” instructions elsewhere in this manual for details.
-
Page 9: Dvd Player
PDI-P15LCD User Manual Document Number: PD196-042R3 ANT. Connect the hospital’s cable to this fitting. CAUTION: Some hospital cable systems provide power voltage on the coaxial cable. The P15LCD is NOT designed to be powered over a coaxial cable. Do NOT connect to a powered coaxial cable. - Page 10 PDI-P15LCD User Manual Document Number: PD196-042R3 S-VIDEO (VCR or DVD) Many VCRs provide S-Video signals to provide improved picture quality. 1. Connect the S-VIDEO output of a VCR to the S-VIDEO input on the TV. 2. Connect the audio cables from the S-VIDEO VCR to the L(MONO) R A/V IN inputs of the 3.
- Page 11 Document Number: PD196-042R3 COMPUTER The PDI-P15LCD is designed to also be used as a computer monitor. However, the support arm must be pre-strung with a compatible VGA computer cable to utilize this feature. 1. Connect the VGA computer cable to the PC/DTV IN jack on the set.
- Page 12 PDI-P15LCD User Manual Document Number: PD196-042R3 1. Connect the PC in cable (D sub jack) from the DTV output of the DTV receiver to PC/DTV IN of the TV. 2. Connect the Audio cable from the Audio output of DTV receiver of L(MONO) and R of the set.
- Page 13 PDI-P15LCD User Manual Document Number: PD196-042R3 Equalizer MENUS Flat Music ▄ ▄ ▄ ▄ ▄ Movie MENU TREE ▄ ▄ ▄ ▄ ▄ Speech ▄ ▄ ▄ ▄ ▄ The on screen menus are navigated by first pressing the MENU User button on the remote and then using the CH ▲▼...
-
Page 14: Auto Program
PDI-P15LCD User Manual Document Number: PD196-042R3 AUTO PROGRAM Automatically memorizes all the receivable channels on a hospital’s cable TV system. Press the MENU button on the remote. 1. Select the Setup menu. Auto Program 2. Select Auto Program. 3. Press the CH▲▼ button and select Table. -
Page 15: Program List
Picture You can adjust picture Contrast, Brightness, Color, Sharpness and Tint to the levels you prefer using the on screen menus or select PDI factory preset picture modes using the remote control. USER PICTURE CONTROL Picture 1. - Page 16 PDI-P15LCD User Manual Document Number: PD196-042R3 Sound Sound You can adjust the sound using Equalizer levels via the on Equalizer ► screen menus or select PDI factory preset sound modes using Balance the remote control. Surround EQUALIZER Sound Mode MONO 1.
-
Page 17: Sound Mode
PDI-P15LCD User Manual Document Number: PD196-042R3 4. Press VOL◄► to adjust the sound balance from the TV. 5. Press the MENU button to return to the preceding Menu and the TV/AV button to return to normal TV viewing. SURROUND Surround sound is available through this setting. With the Surround set to On, the TV’s audio is processed and provides an added dimension to listening. -
Page 18: Auto Sleep
PDI-P15LCD User Manual Document Number: PD196-042R3 7. Press the TV/AV button to return to normal TV viewing. Hints: Off and On times can also be set that allow the TV to turn OFF at a specified time or ON at a specified time to a specified On Program channel. -
Page 19: Parental Control
PDI-P15LCD User Manual Document Number: PD196-042R3 CAPTION Captions is a process which converts the audio portion of a television program into written words which than appear on the television screen in a form similar to subtitles. Closed captions allow viewers to read the dialogue and narration of TV programs. -
Page 20: Motion Picture Association Of Usa (Mpaa) Rating System
PDI-P15LCD User Manual Document Number: PD196-042R3 9. Press the VOL◄► buttons to select the MPAA Rating. Then press the CH▲▼ buttons to select particular MPAA Ratings. While a particular category is selected, press the VOL◄► buttons to activate it. A highlighted letter (“U” or “B”) will be displayed. Press the CH▲▼... -
Page 21: Product Specifications
PDI-P15LCD User Manual Document Number: PD196-042R3 Product Specifications Model PDI-P15LCD Horizontal 13 ¾ Inches Thickness 2 ½ Inches Size Height 15 3/8 Inches Weight 14 lbs. Power Requirements DC 12V at 3A maximum Television System NTSC Channels VHF (2 ~ 13), UHF (14 ~ 69), CABLE (01 ~ 125) Display Panel 15.1 Inches, TFT-LCD... - Page 22 PDI’s shipment of this product. After receipt of written notice of a defect or malfunction occurring during the warranty period, PDI will repair or replace goods returned to its Springboro, Ohio location, at its discretion, free of charge to the original purchaser, the whole or any component part of any product manufactured by PDI and found by PDI to be defective.
- Page 23 PDI-P15LCD User Manual Document Number: PD196-042R3 Blank Page - 23 -...
- Page 24 PDI-P15LCD User Manual Document Number: PD196-042R3 Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH: 937-743-6010 FX: 947-743-5664 - 24 -...
