Wall Mounting on Bracket

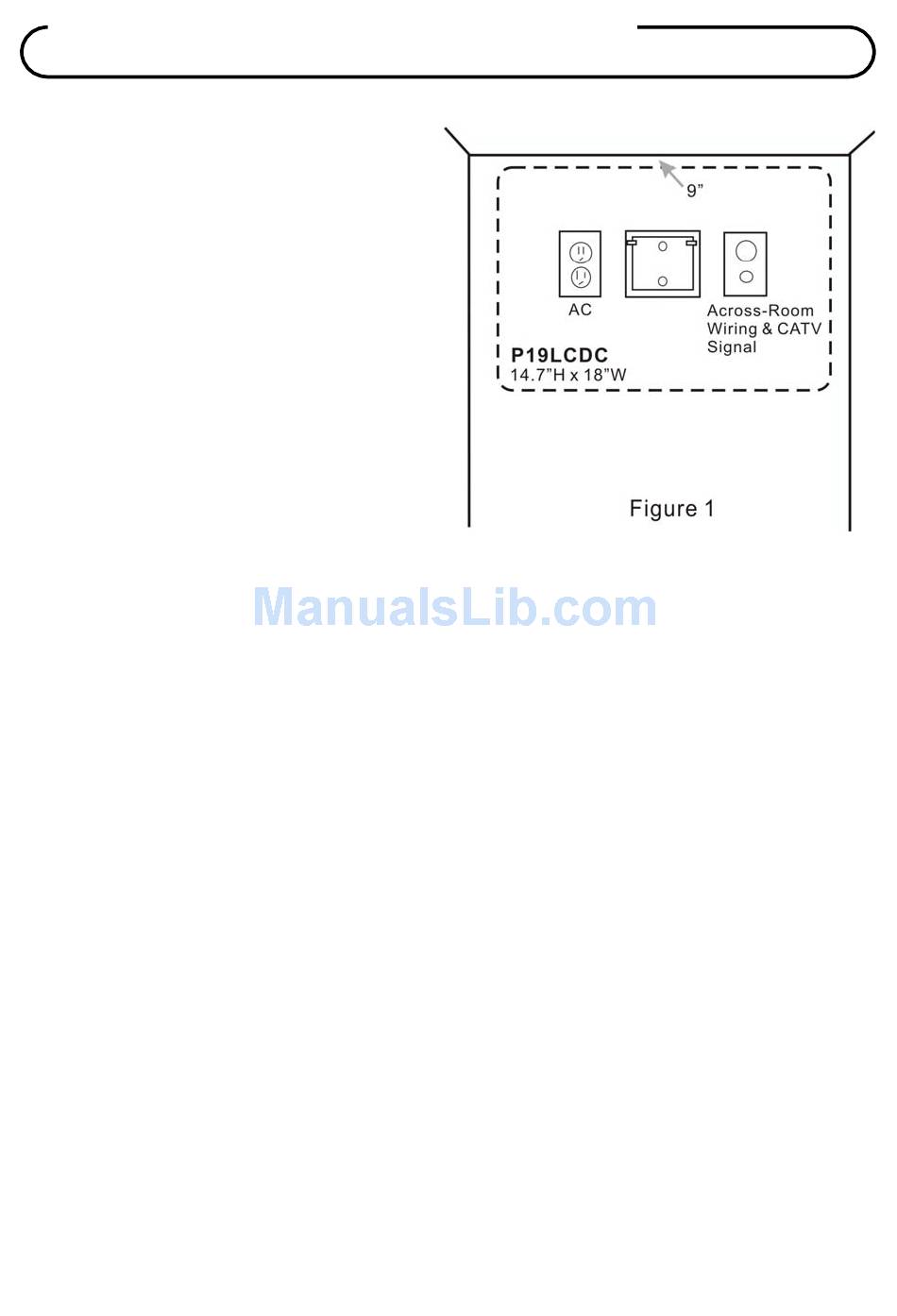

1. Refer to Figure 1. Select a location on
the wall approximately 9 inches below
the ceiling.
NOTE: Do not locate AC, Across-Room
Wiring, and CATV Signal outlets below
the Wall Bracket's location as it will
cause clearance issues and interfere
with the TV's cabinet when mounted to
the bracket.
Position the Wall Bracket and locate two
mounting holes. Secure the bracket to
the wall (mounting hardware is not
included).
2. Refer to Figure 2. Position the Back Mount on the LCD TV cabinet. Attach with four M6 screws
provided.
3. Mate the Back Mount to the Wall Bracket making sure the pivot pins are retained in the "U"
shaped slot. Using the pilfer security driver packed with the hardware, secure with two 10x32
pilfer screws.
4. Connect the AC line cord, Pillow Speaker Jumper Cable, and CATV Coax Cable.
5. The TV's tilt can be adjusted by loosening both Pilfer Screws, adjusting tilt, and then tighten.
