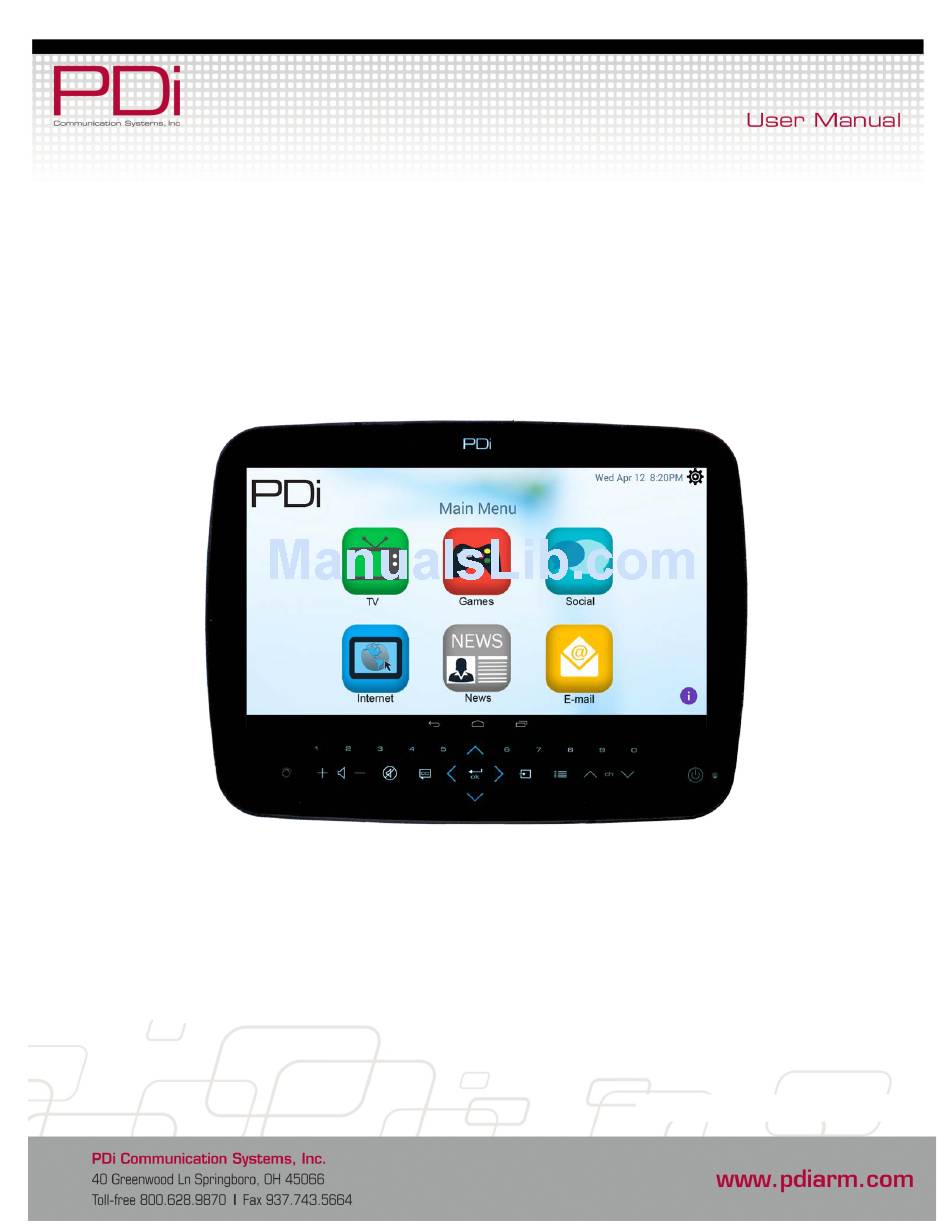

Document No: PD196-377R1

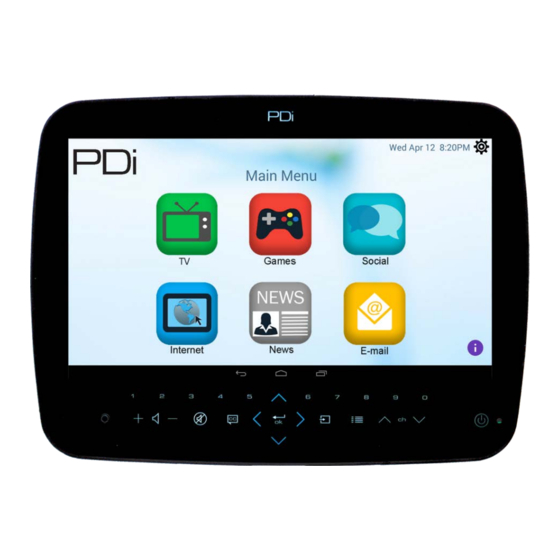

PDI-P14T2S LCD HDTV with Android
Page 1 of 59
PDI-P14T2S
Arm-Mounted, Healthcare-grade
LCD HDTV with Android
Document Number: PD196-377R1
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
