Across-Room Wiring

A ¼" stereo style pillow speaker (pendant control) jack is located on the TV's connector panel on
the backside. This TV is designed to work with either a digital pillow speaker that generates digital
style control codes or a single-button analog (switch-style) pillow speaker. A rear panel mounted
switch allows use of different brands of pillow speakers and supports the major brands; Zenith,
Philips, and RCA pillow speakers. Please refer to the "Pillow Speaker" section elsewhere in this
manual for details.
WARNING: DO NOT connect the pillow speaker circuit Common to earth ground.
Grounding of the Common will defeat the isolation circuitry of the television and
possibly expose the patient to harmful shock currents should a wiring fault occur.

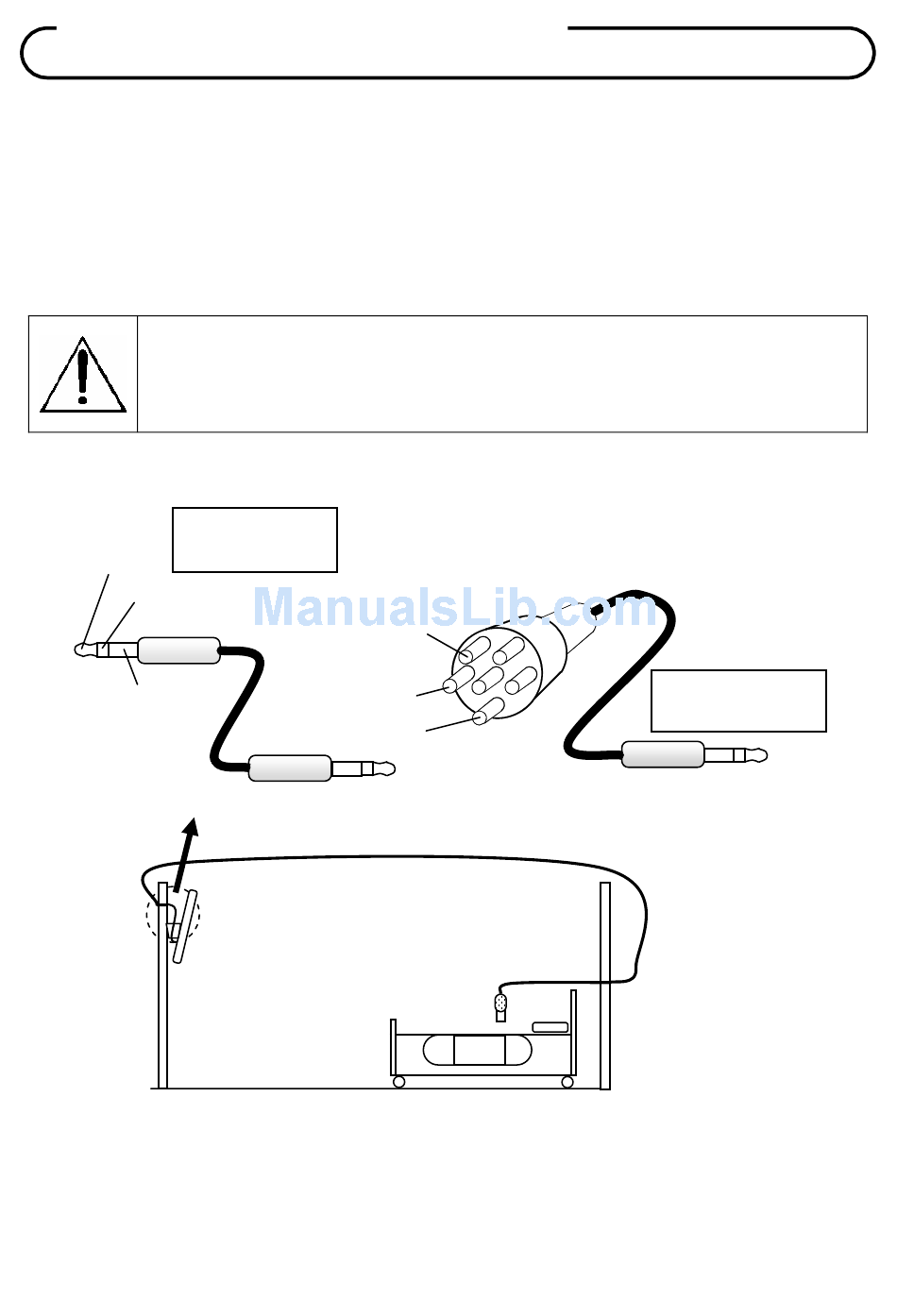

Optional Jumper
SPEAKER
DATA / SWITCH
COMMON
PD106-417
SPEAKER
COMMON
DATA / SWITCH
ACROSS ROOM WIRING
20
Jumper Supplied
with TV
Document Number: PD196-120 Rev 2
