Controls
Rear Panel

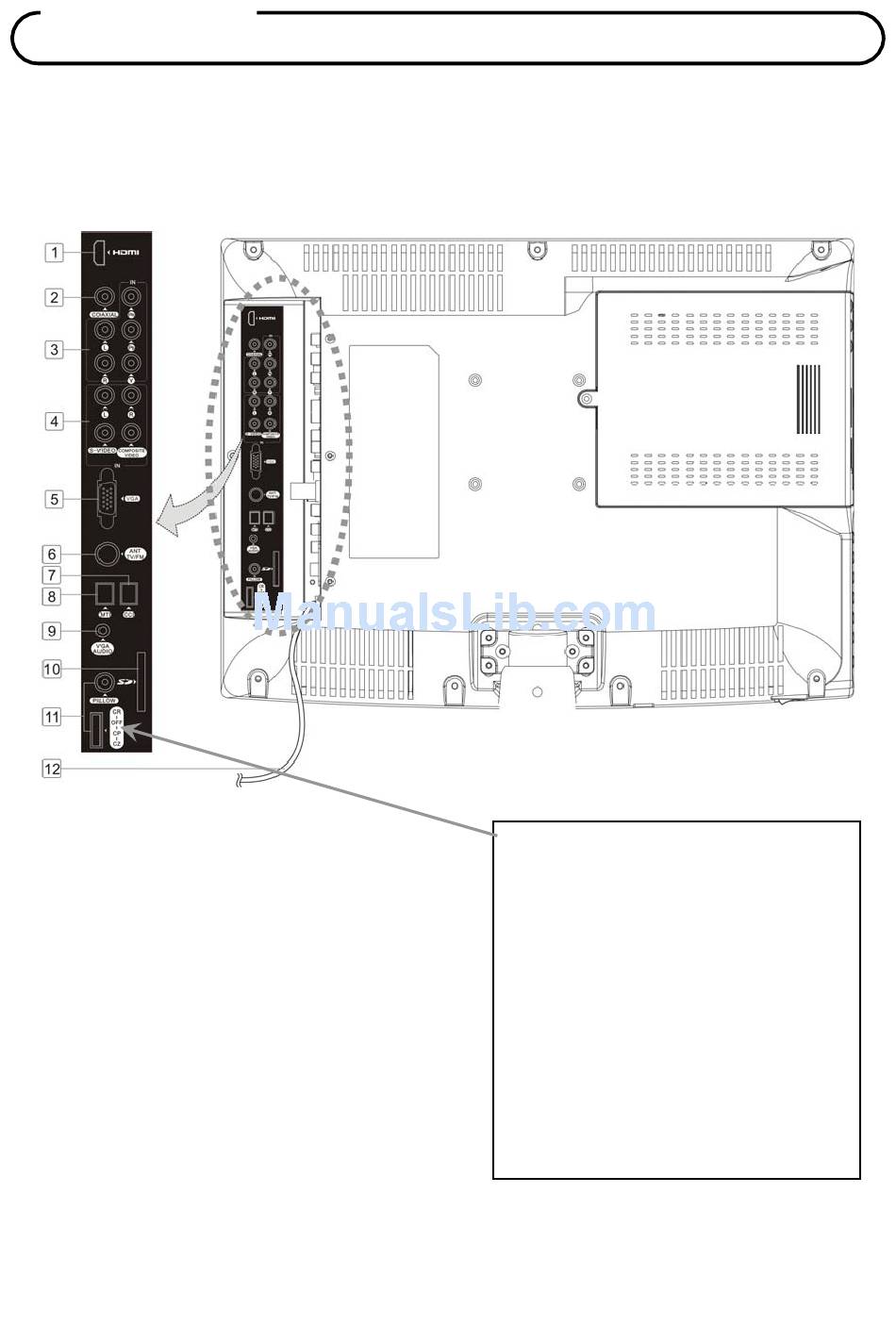

Open the back cover on the left side of the unit's rear panel and all the jacks will appear, as shown
on the figure below:
7. CCI
Communication port.
8. MTI
Connect to MTI device.
Note: CCI and MTI can not be connected
to the external public network, and can be
used by the technician only.
9. VGA AUDIO IN
Connect the audio cable from the PC to the
11. PILLOW
Pillow speaker port.
Use the switch to select correct voltage.
CZ: Zenith Compatible (+14V)
CP: Philips Compatible (+5V)
CR: RCA Compatible (-5V)
Off: Pillow port disable (0V)
12. Power Supply Cord
AUDIO IN of the set.
10. SD Card Slot
Firmware upgrading purpose.
! CAUTION !
Moving this switch changes the voltage
supplied to the pillow speaker.
Make sure it is set correctly BEFORE
plugging in the pillow speaker jumper
cable.
Failure to do so WILL RESULT IN THE
PILLOW SPEAKER BEING
OVERDRIVEN AND POSSIBLE
DAMAGE TO THE PILLOW SPEAKER.
