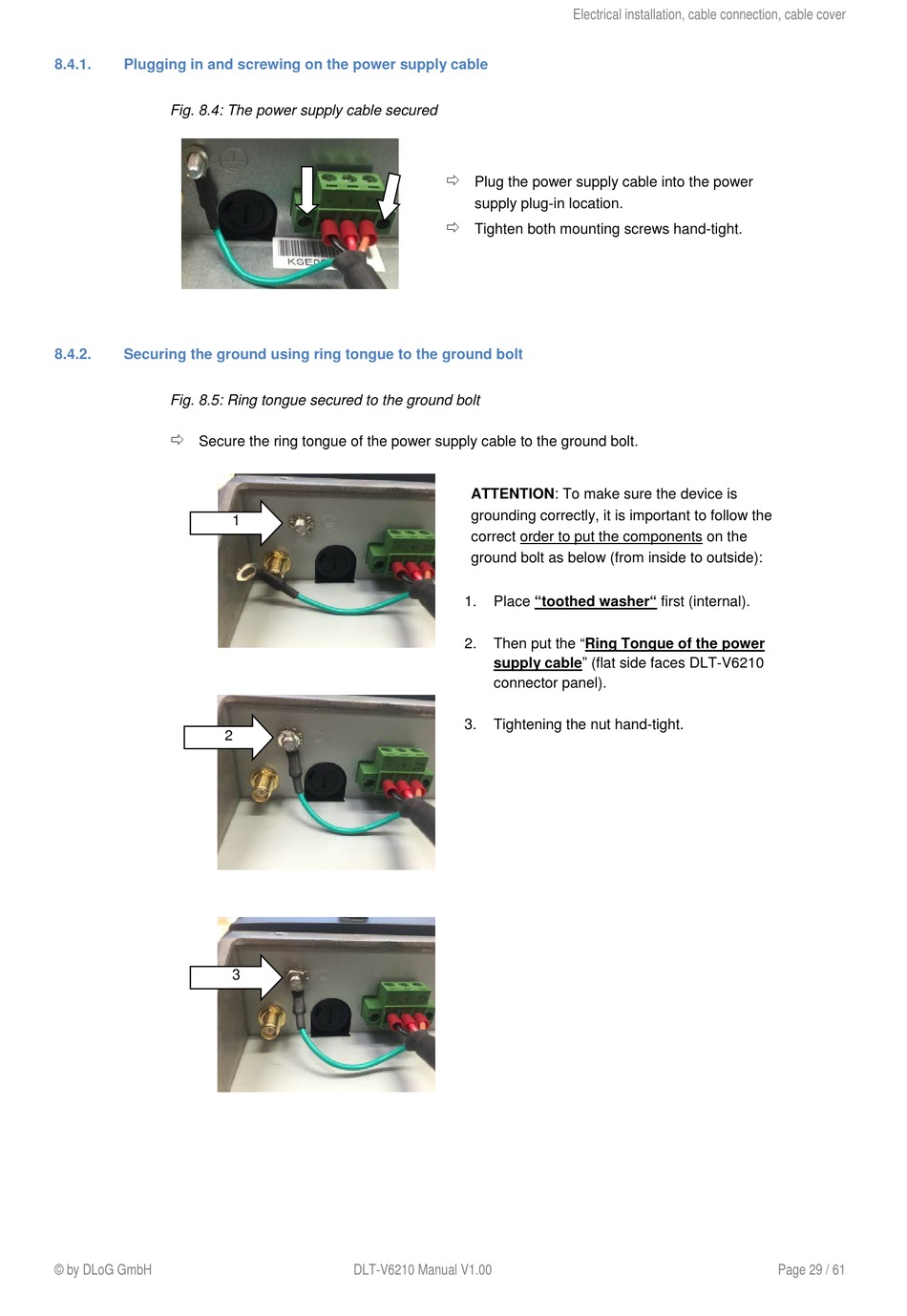

8.4.1.
Plugging in and screwing on the power supply cable
Fig. 8.4: The power supply cable secured
8.4.2.
Securing the ground using ring tongue to the ground bolt
Fig. 8.5: Ring tongue secured to the ground bolt
Secure the ring tongue of the power supply cable to the ground bolt.
© by DLoG GmbH
1
2
3
DLT-V6210 Manual V1.00
Electrical installation, cable connection, cable cover
Plug the power supply cable into the power
supply plug-in location.
Tighten both mounting screws hand-tight.
ATTENTION: To make sure the device is
grounding correctly, it is important to follow the
correct order to put the components on the
ground bolt as below (from inside to outside):
1.
Place "toothed washer" first (internal).
2.
Then put the "Ring Tongue of the power
supply cable" (flat side faces DLT-V6210
connector panel).
3.
Tightening the nut hand-tight.
