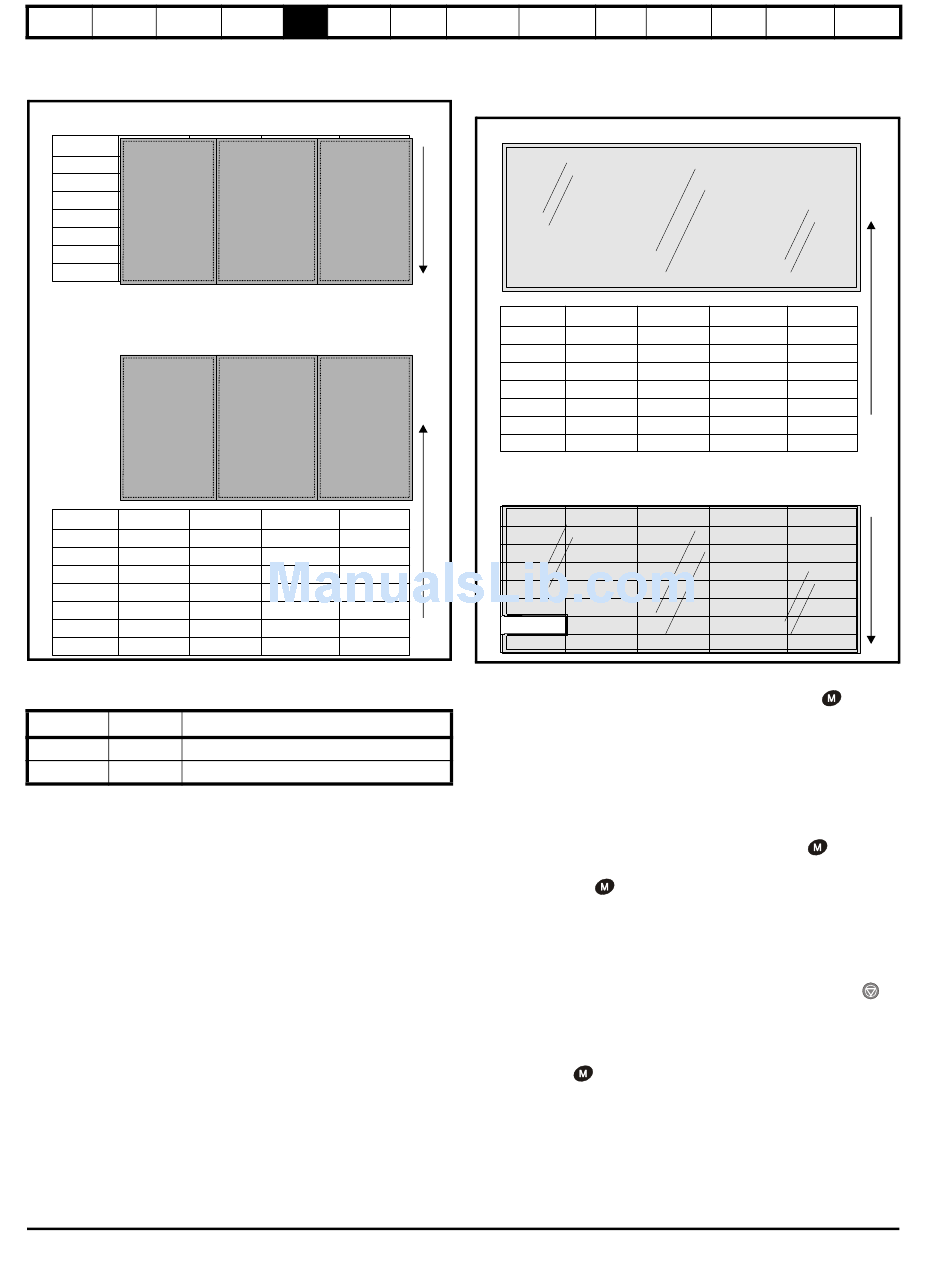

5.10.1 Access Level
The access level is set in Pr 0.49 and allows or prevents access to the
advanced menu parameters.
L1 access selected - Menu 0 only visible
Pr 0.00 Pr 1.00 ............
Pr 0.01 Pr 1.01 ............
Pr 0.02 Pr 1.02 ............
Pr 0.03 Pr 1.03 ............
............
............
Pr 0.49 Pr 1.49 ............
Pr 0.50 Pr 1.50 ............
L2 access selected - All parameters visible
Pr 0.00 Pr 1.00 ............
Pr 0.01 Pr 1.01 ............
Pr 0.02 Pr 1.02 ............
Pr 0.03 Pr 1.03 ............
............
............
Pr 0.49 Pr 1.49 ............
Pr 0.50 Pr 1.50 ............
5.10.2 Changing the Access Level
The Access Level is determined by the setting of Pr 0.49 as follows:
String Value
L1 0 Access to menu 0 only
L2 1 Access to all menus (menu 0 to menu 22)
The Access Level can be changed through the keypad even if the User
Security has been set.
98
Electrical Getting Basic Running
Installation Started parameters the motor
Pr 19.00 Pr 20.00
Pr 19.01 Pr 20.01
Pr 19.02 Pr 20.02
Pr 19.03 Pr 20.03
Pr 19.49 Pr 20.49
Pr 19.50 Pr 20.50
Pr 21.00 Pr 22.00
Pr 21.01 Pr 22.01
Pr 21.02 Pr 22.02
Pr 21.03 Pr 22.03
Pr 21.30 Pr 22.28
Pr 21.31 Pr 22.29
Effect
www.controltechniques.com
SMARTCARD
Optimization PC tools
operation
5.10.3 User Security
The User Security, when set, prevents write access to any of the
parameters (other than Pr. 0.49 and Pr 11.44 Access Level) in any
menu.
User security open - All parameters: Read / Write access
Pr 0.00 Pr 1.00
Pr 0.01 Pr 1.01
Pr 0.02 Pr 1.02
Pr 0.03 Pr 1.03
Pr 0.49 Pr 1.49
Pr 0.50 Pr 1.50
User security closed
Pr 0.00 Pr 1.00
Pr 0.01 Pr 1.01
Pr 0.02 Pr 1.02
Pr 0.03 Pr 1.03
Pr 0.49 Pr 1.49
Pr 0.50 Pr 1.50
Setting User Security
Enter a value between 1 and 999 in Pr 0.34 and press the
the security code has now been set to this value. In order to activate the
security, the Access level must be set to Loc in Pr 0.49. When the drive
is reset, the security code will have been activated and the drive returns
to Access Level L1. The value of Pr 0.34 will return to 0 in order to hide
the security code. At this point, the only parameter that can be changed
by the user is the Access Level Pr 0.49.
Unlocking User Security
Select a read write parameter to be edited and press the
display will now show CodE. Use the arrow buttons to set the security
code and press the button.
With the correct security code entered, the display will revert to the
parameter selected in edit mode.
If an incorrect security code is entered the display will revert to
parameter view mode.
To lock the User Security again, set Pr 0.49 to Loc and press the
reset button.
Disabling User Security
Unlock the previously set security code as detailed above. Set Pr 0.34 to
0 and press the button. The User Security has now been disabled,
and will not have to be unlocked each time the drive is powered up to
allow read / write access to the parameters.
Advanced Technical
Diagnostics
parameters Data
............ Pr 21.00 Pr 22.00
............ Pr 21.01 Pr 22.01
............ Pr 21.02 Pr 22.02
............ Pr 21.03 Pr 22.03
............
............
............ Pr 21.30 Pr 22.28
............ Pr 21.31 Pr 22.29
- All parameters: Read Only access
(except Pr 0.49 and Pr 11.44 )
............ Pr 21.00 Pr 22.00
............ Pr 21.01 Pr 22.01
............ Pr 21.02 Pr 22.02
............ Pr 21.03 Pr 22.03
............
............
............ Pr 21.30 Pr 22.28
............ Pr 21.31 Pr 22.29
