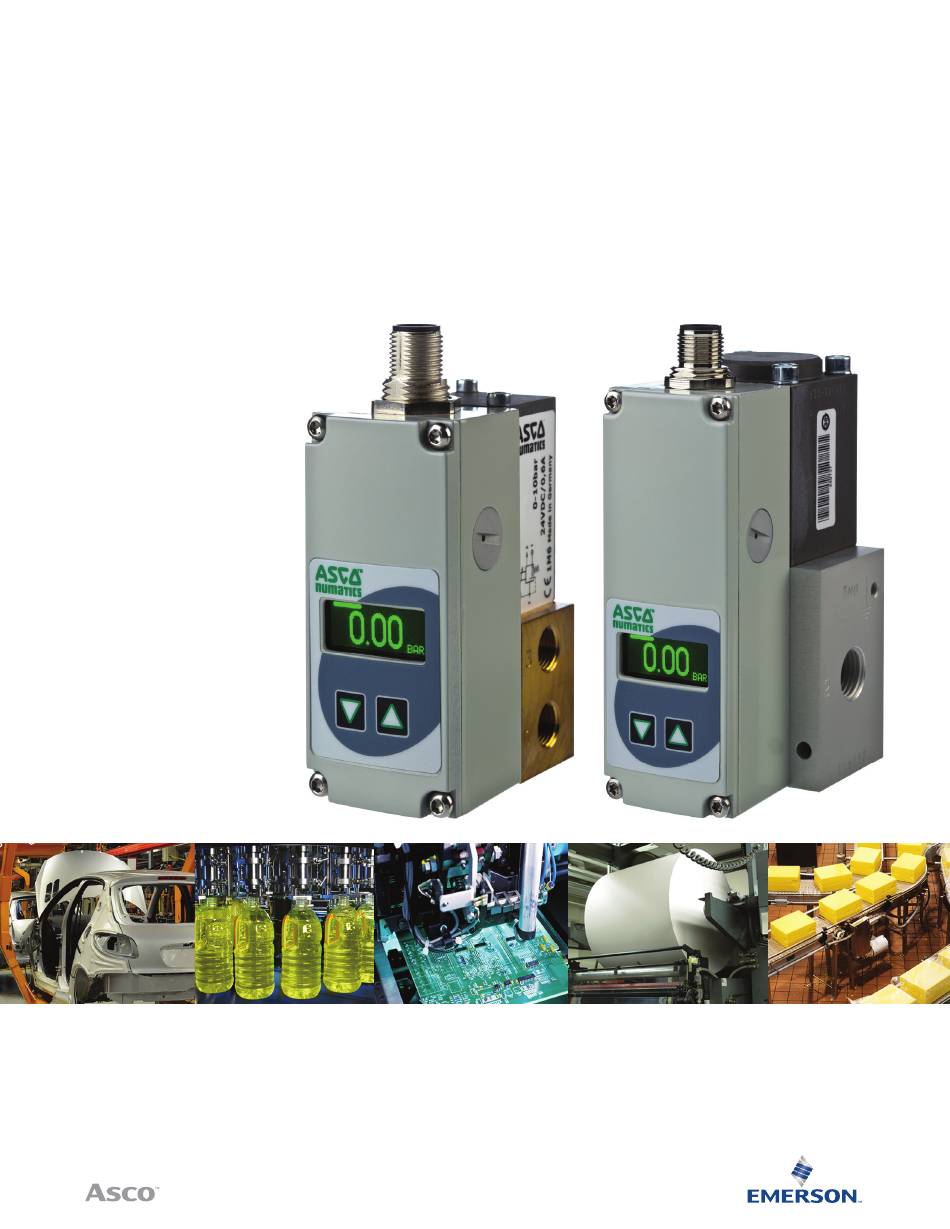

  • Page 1 PLUS Sentronic IO-Link CLASS A Electronic Pressure Regulator Installation Manual...
  • Page 2 ELECTRONIC PLUS ASCO NUMATICS™ Sentronic PRESSURE REGULATOR INSTALLATION MANUAL PLUS Sentronic Electronic Pressure Regulator PLUS Sentronic is a 3-way proportional valve with digital control. • Direct operated valve • Dynamic behavior (high speed) • IO - Link CLASS A Version •...

  • Page 3: Installation

    ELECTRONIC PLUS ASCO NUMATICS™ Sentronic PRESSURE REGULATOR INSTALLATION MANUAL How to Order 6 1 4 3 5 7 E 9 0 1 1 PB Control Panel Options B = IO-LINK with display A00 = Dual loop control C = IO-Link without display 018 = Oxygen clean Pressure Range Max.
  • Page 4 ELECTRONIC PLUS ASCO NUMATICS™ Sentronic PRESSURE REGULATOR INSTALLATION MANUAL Dimensions: Inches (mm), Weight in lbs. (kg) 1/8 NPT or GTap (DN3) Weight: 1.21 (0.55) PE (4-8 deep) 2 x M4-10 deep 0.98 (25) 0.98 (25) 1.14 (29) 2.24 (57) 1.38 (35) 1/4 NPT or GTap Weight: 1.87 (0.85) PE(4-8 deep)

  • Page 5: Connector Pinout

    ELECTRONIC PLUS ASCO NUMATICS™ Sentronic PRESSURE REGULATOR INSTALLATION MANUAL Connector Pin Out Description +24 VDC Supply not connected +0 VDC Common (Supply) not connected Body EMC shield M12 Class A & B Compatible Cables* and Accessories M12 Straight 5 Pin Female Single Ended Cable - Unshielded TC0505MIE000071P –...
  • Page 6 ELECTRONIC PLUS ASCO NUMATICS™ Sentronic PRESSURE REGULATOR INSTALLATION MANUAL Installation and Operating Instructions Before putting into operation carefully check all electrical connections and the supply voltage (24 VDC ±10 %). Overload can destroy the electronics. Recommended pre-fuse T2.0 A. The electrical connection is made with a round connector M12x1. The connector must meet the requirements of DIN 60079-15.

  • Page 7: Global Contacts

    (82) 2-3483-1570 China (86) 21-3395-0000 Italy (39) 02-356931 Spain (34) 942-87-6100 Czech Republic (420) 235-090-061 Japan (81) 798-65-6361 United Kingdom (44) 1695-713600 Dubai - UAE (971) 4-811-8200 Mexico (52) 55-5809-5640 4/19 ASCO (USA) | Tel (1) 888-686-2842 | an.insidesales@emerson.com | www.ASCO.com...
