Instruction Manual
D104673X012
September 2024
A/100 Series Self-Operated Regulators
SUMMARY
Introduction ........................................................................
PED Categories and Fluid Group ......................................
Characteristics ...................................................................
Labelling ............................................................................
Overpressure Protection ....................................................
Transport and Handling .....................................................
ATEX Requirements ..........................................................
Slam-Shut Controller .........................................................
Operation ...........................................................................
Installation .........................................................................
Startup ...............................................................................
Adjustment .........................................................................
Shutdown ...........................................................................
Periodical Checks ..............................................................
Maintenance ......................................................................
Spare Parts ........................................................................
Parts List ............................................................................
INTRODUCTION
Scope of Manual
This manual provides instructions for installation, startup,
maintenance and spare parts ordering for the A/100 Series
self-operated regulators.
Product Description
The A/100-Series (2 in. gas threaded connections) and the
A/110 Series (DN 50 PN 16 flanged connections) are spring-
loaded regulators featuring single seats and non-balanced
valves, and are normally supplied with built-in filters. The
series, which comes in both the standard and high pressure
(AP) versions, includes the following models:
A/101 and A/111: without safety devices
A/102 and A/112: with outlet overpressure relief valve
A/108 and A/118: with outlet underpressure and/or
overpressure independent, pneumatically controlled slam-
shut valve (OS/66 actuator)
A/109 and A/119: same as the A/108 and A/118 models but
fitted with an outlet overpressure relief valve.
1
1
2
2
2
3
3
3
3
4
5
5
5
5
PED CATEGORIES AND FLUID GROUP
5
6
According to EN 14382, only in integral strength type and
Class A configuration (when both over and under pressure
6
protections are set up), the possible built-in safety shut-off
device can be classified like a safety accessory according
to PED.
The minimum PS between SSD valve and pilot shall be the
PS of the safety accessory to comply the provisions of EN
14382 about integral strength type.
Downstream equipments, protected by possible built-in
safety shut-off device (in its Class A and integral strength
configuration) of this product, shall have technical features
such as to be category per table below according Directive
PED 2014/68/EU.
Table 1. PED Category for A/100 Series Regulators
PRODUCT SIZE
DN 50
Possible built-in pressure accessories (e.g. pilots OS66/)
conform to Pressure Equipment Directive PED 2014/68/EU
Article 4 section 3 and were designed and manufactured in
accordance with sound engineering practice (SEP).
Per Article 4 section 3, these "SEP" products must not bear
the CE marking.
A/100 Series

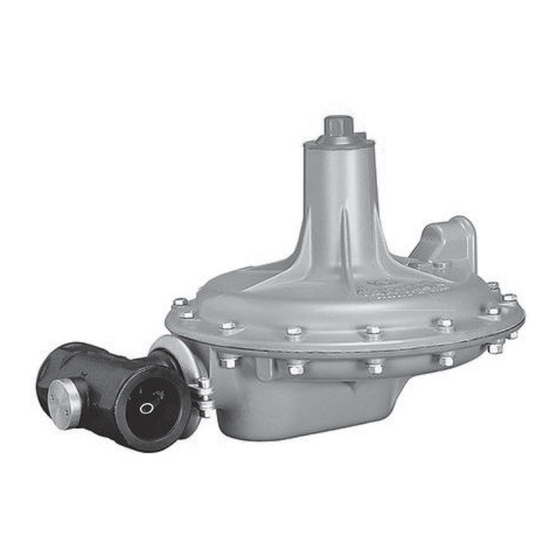

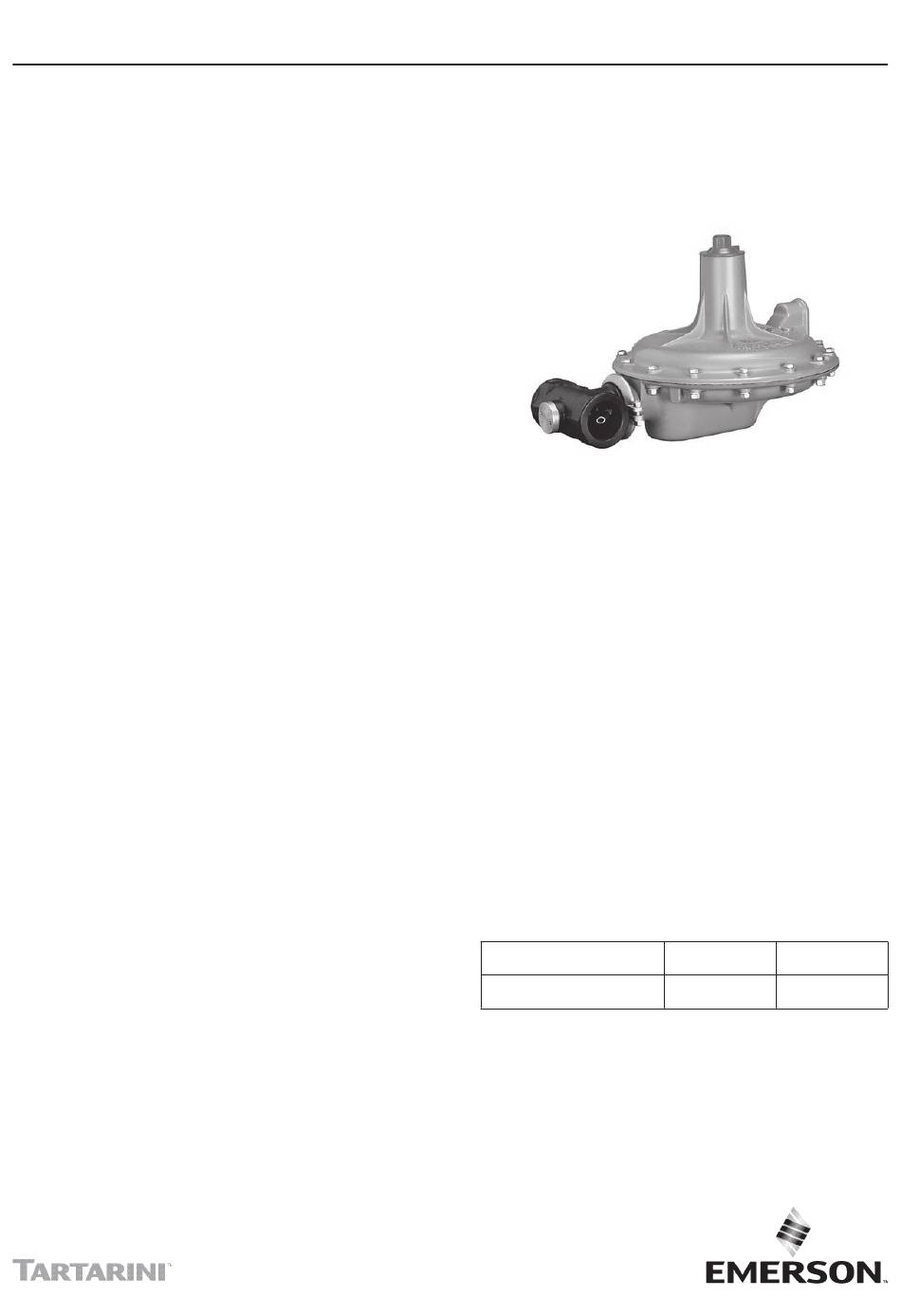

Figure 1. A/100 Series
CATEGORY
I
FLUID GROUP
1
