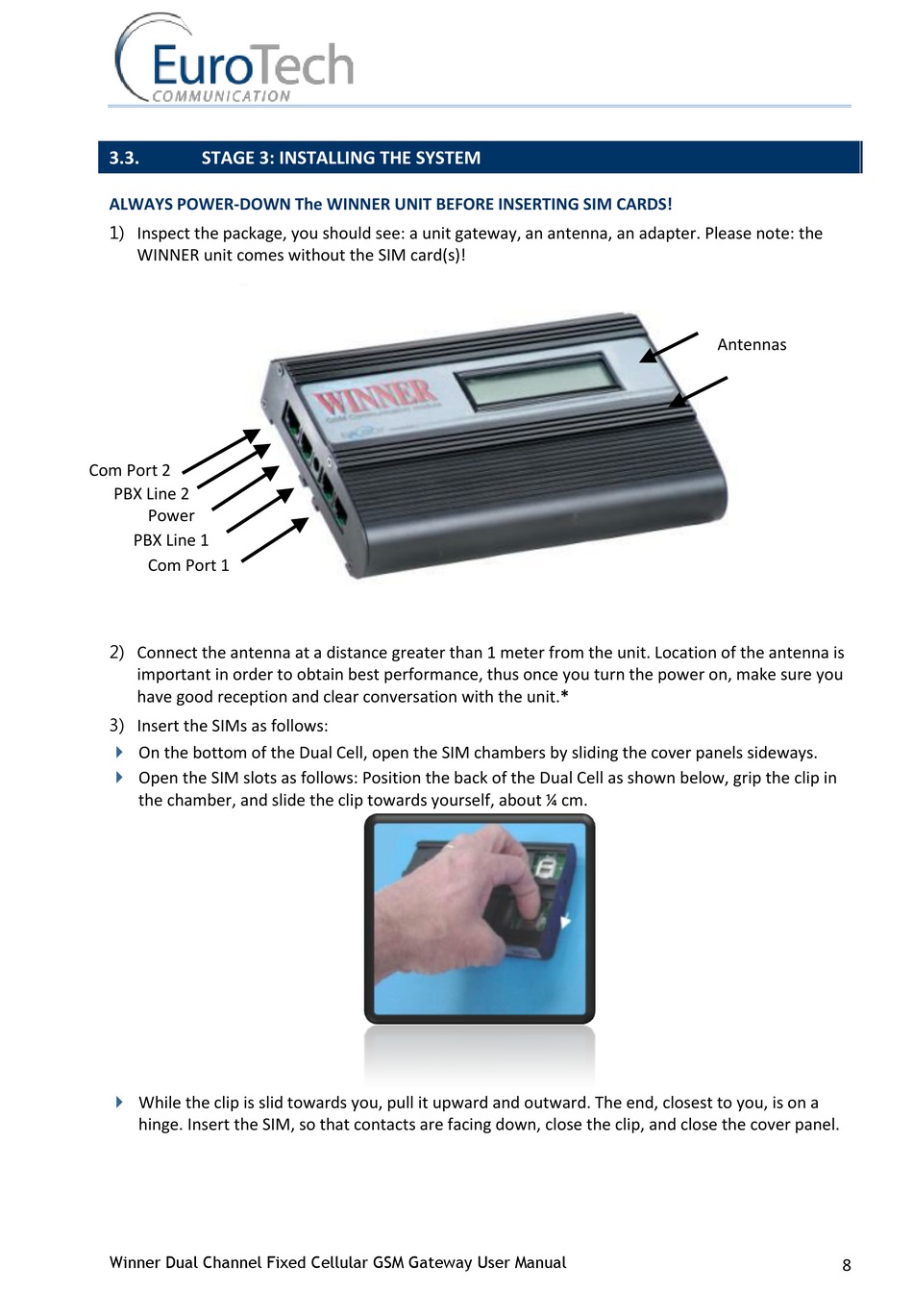

STAGE 3: INSTALLING THE SYSTEM

ALWAYS POWER-DOWN The WINNER UNIT BEFORE INSERTING SIM CARDS!
1) Inspect the package, you should see: a unit gateway, an antenna, an adapter. Please note: the
WINNER unit comes without the SIM card(s)!
Com Port 2
PBX Line 2
Power
PBX Line 1
Com Port 1
2) Connect the antenna at a distance greater than 1 meter from the unit. Location of the antenna is
important in order to obtain best performance, thus once you turn the power on, make sure you
have good reception and clear conversation with the unit.*
3) Insert the SIMs as follows:

On the bottom of the Dual Cell, open the SIM chambers by sliding the cover panels sideways.

Open the SIM slots as follows: Position the back of the Dual Cell as shown below, grip the clip in
the chamber, and slide the clip towards yourself, about ¼ cm.

While the clip is slid towards you, pull it upward and outward. The end, closest to you, is on a
hinge. Insert the SIM, so that contacts are facing down, close the clip, and close the cover panel.
