Navigation Keys:
[Back]: For moving to the previous step or layer in the navigation structure.
▲ ▼
Arrows [ ] [ ]: For maneuvering between parameter groups, parameters and within parameters.
[OK]: For selecting a parameter and for accepting changes to parameter settings.
Operation Keys:
A yellow light above the operation keys indicates the active key.
[Hand on]: Starts the motor and enables control of the frequency converter via the LCP.
[Off/Reset]: The motor stops except in alarm mode. In that case the motor will be reset.
[Auto on]: The frequency converter is controlled either via control terminals or serial communication.
[Potentiometer] (LCP12): The potentiometer works in two ways depending on the mode in which the frequency converter is running.
Auto Mode
In the potentiometer acts as an extra programmable analog input.
Hand on Mode
In the potentiometer controls local reference.

4.2 Status Menu

After power up the Status Menu is active. Use the [MENU] key to toggle
between Status, Quick Menu and Main Menu.
▲ ▼
Arrows [ ] and [ ] toggles between the choices in each menu.
The display indicates the status mode with a small arrow above "Status".

4.3 Quick Menu

The Quick Menu gives easy access to the most frequently used parameters.
1. To enter the Quick Menu, press [MENU] key until indicator in display is placed above
▲ ▼
2.
Use [ ] [ ] to select either QM1 or QM2, then press [OK].
▲ ▼
3.
Use [ ] [ ] to browse through the parameters in the Quick Menu.
4. Press [OK] to select a parameter.
▲ ▼
5.
Use [ ] [ ] to change the value of a parameter setting.
6. Press [OK] to accept the change.
7. To exit, press either [Back] twice to enter

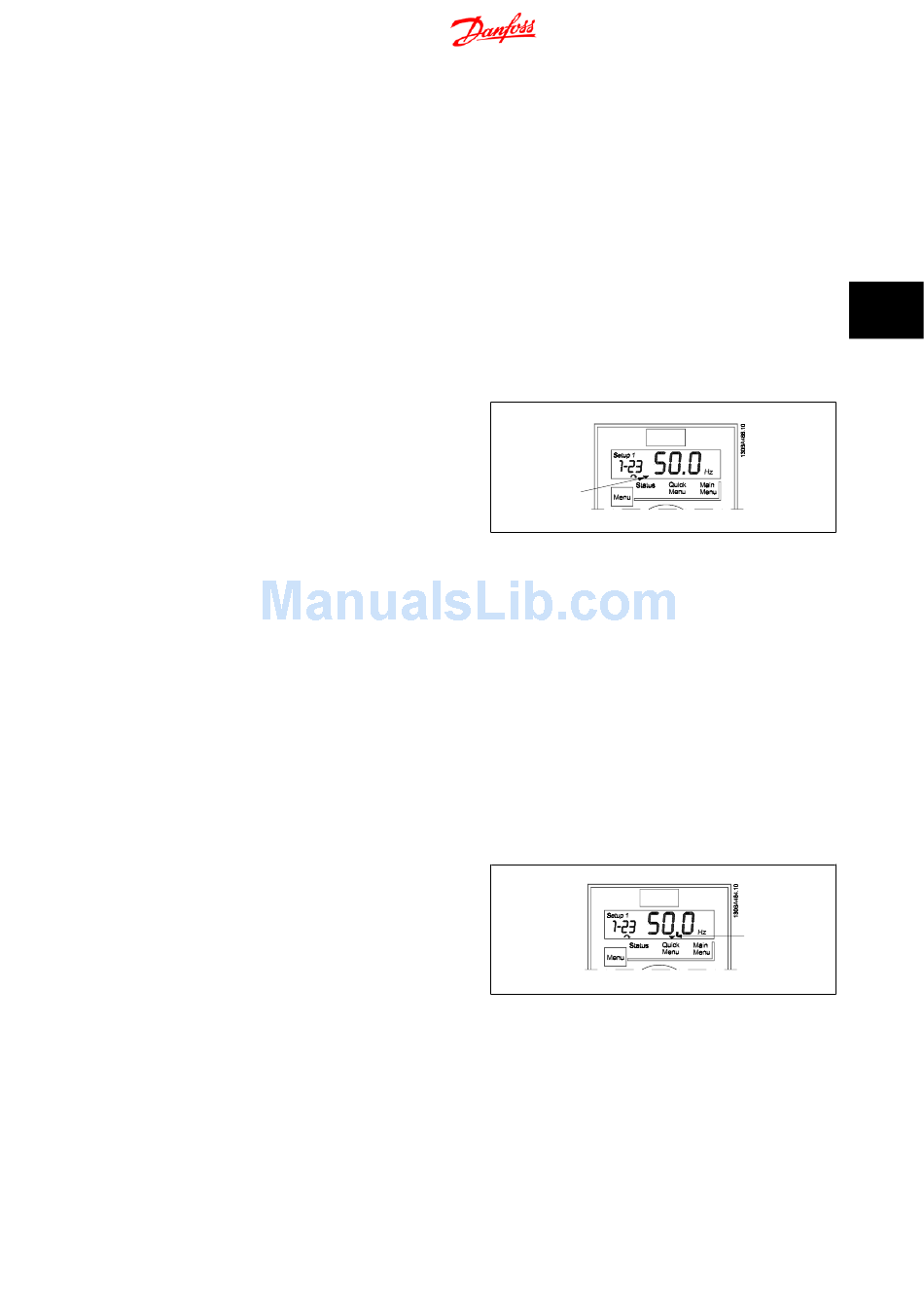

Illustration 4.8: Indicating Status mode
Status
, or press [Menu] once to enter
Illustration 4.9: Indicating Quick Menu mode
®
MG.02.A4.02 - VLT is a registered Danfoss trademark
Quick Menu .
Main Menu
.
4 Programming
4
19
