4 Programming
The small digits to the left are the selected parameter number.
The large digits in the middle of the display show the value of the se-
lected parameter.
4
The right side of the display shows the unit of the selected parameter.
This can be either Hz, A, V, kW, HP, %, s or RPM.
Motor direction is shown to the bottom left of the display - indicated
by a small arrow pointing either clockwise or counterclockwise.
Use the [MENU] key to select one of the following menus:
Status Menu:
The Status Menu is either in
display.
In Hand on Mode the local LCP reference is displayed.
Quick Menu:
Displays Quick Menu parameters and their settings. Parameters in the Quick Menu can be accessed and edited from here. Most applications can be run
by setting the parameters in the Quick Menus.
Main Menu:
Displays Main Menu parameters and their settings. All parameters can be accessed and edited here. A parameter overview is found later in this manual.
Indicator lights:
• Green LED: The frequency converter is on.
• Yellow LED: Indicates a warning. Please see section
• Flashing red LED: Indicates an alarm. Please see section
18
Readout Mode Hand on Mode
or . In
Troubleshooting
MG.02.A4.02 - VLT
®
VLT Micro Drive FC 51 Operating Instructions

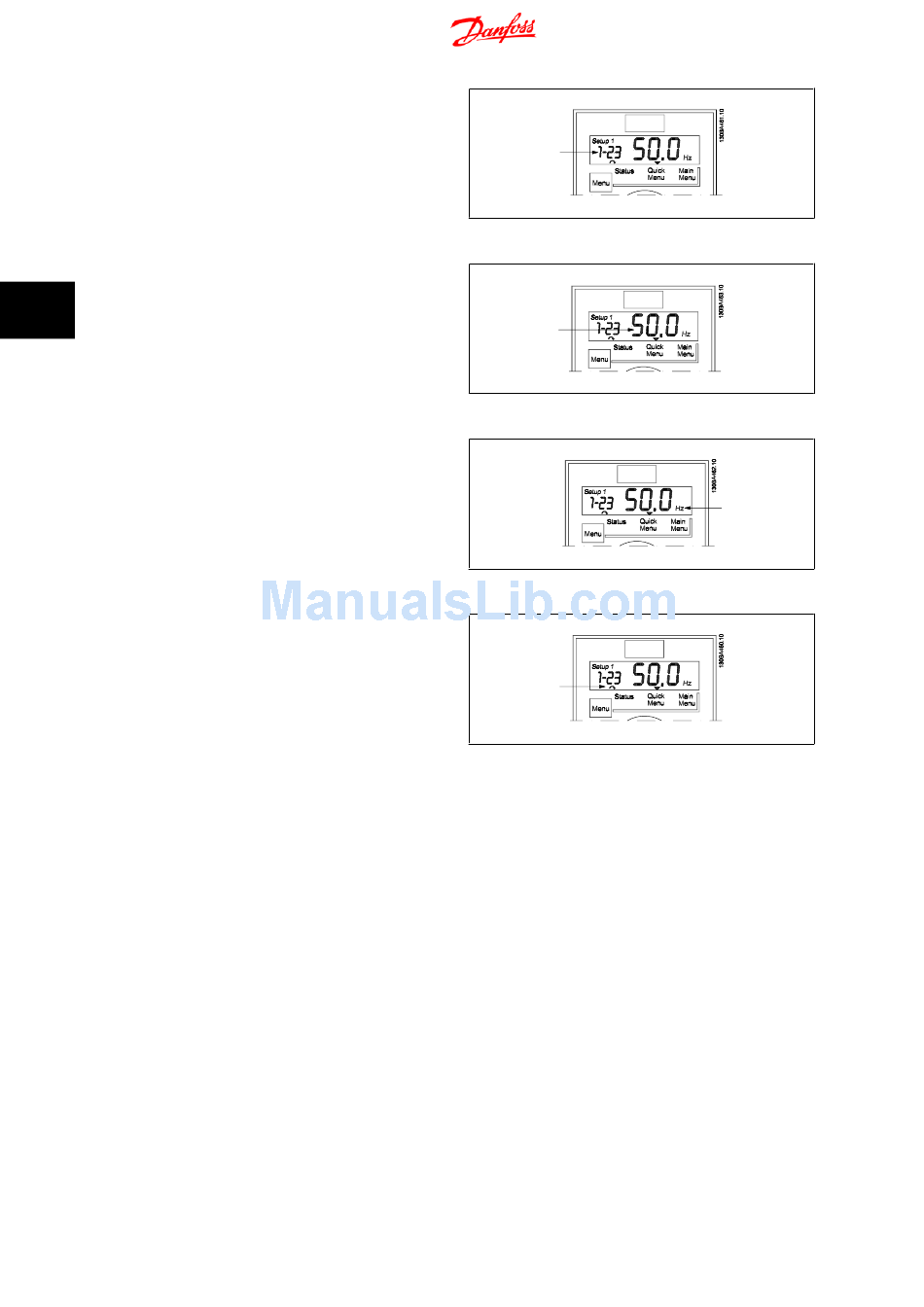

Illustration 4.4: Indicating selected par. no.
Illustration 4.5: Indicating value of selected par.
Illustration 4.6: Indicating unit of selected par.
Illustration 4.7: Indicating motor direction
Readout Mode
the value of the currently selected readout parameter is shown in the
Troubleshooting
®
