VLT Micro Drive FC 51 Operating Instructions
Bit 12:
Not used.
Bit 13, Selection of set-up:
Bit 13 = is used to choose the active set-up. The function is only possible when
NB!
Set-up select
In par. 8-55
Bit 14:
Not used.
Bit 15, Reverse:
Bit 15 = "0" causes no reversing.
Bit 15 = "1" causes reversing.
NB!
Depends on par. 8-54

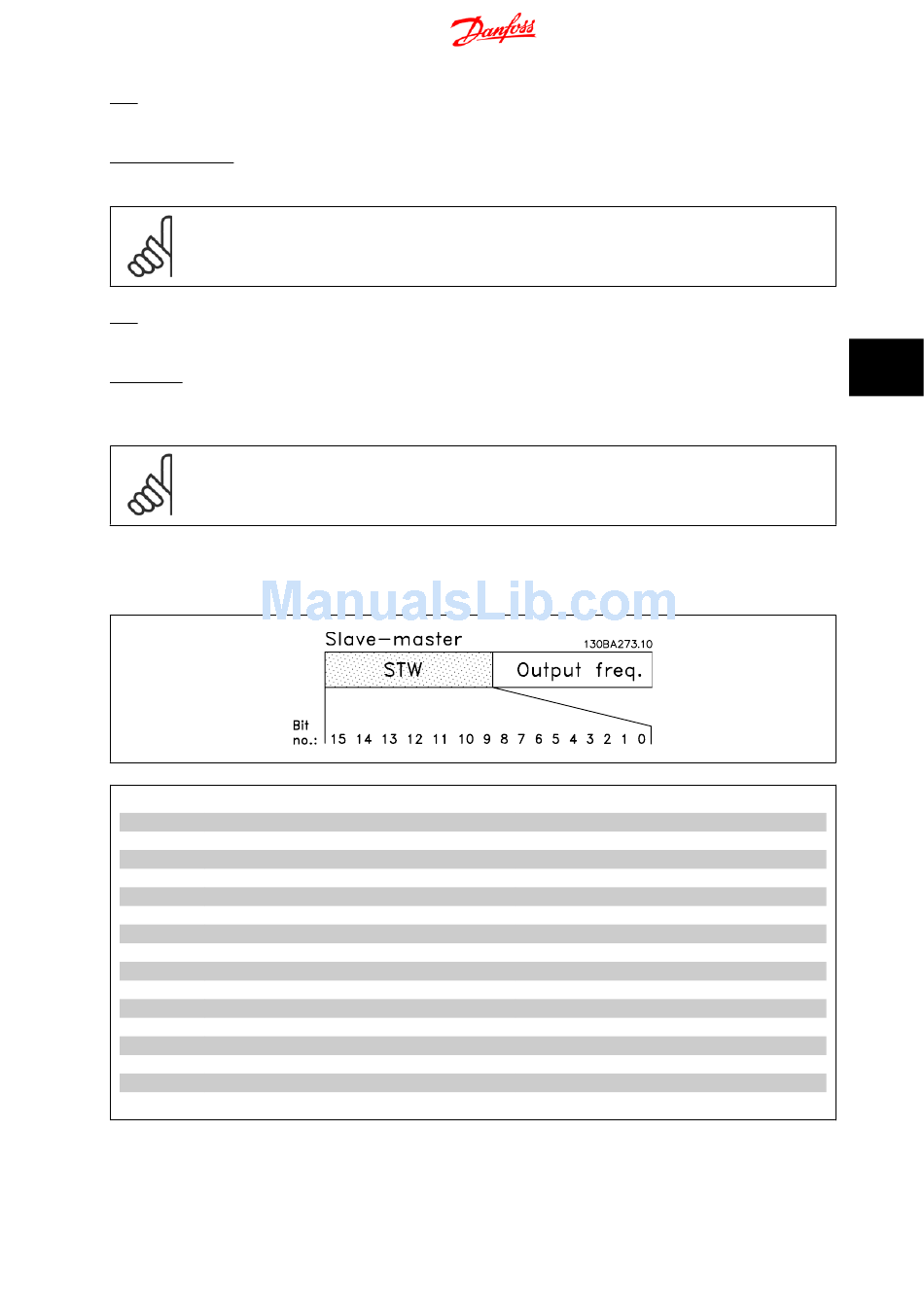

5.6.3 Status Word According to FC Profile (STW)

Bit Bit value = 0
00 Control not ready
01 Unit not ready
02 Coasting
03 No error
04 No error
05 Reserved
06 Not trip locked
07 No warning
08 Speed ≠ reference
09 Local operation
10 Out of frequency limit
11 Not running
12 No resistor brake fault
13 Voltage OK
14 Torque OK
15 No thermal warning
a selection is made to define how Bit 13 gates with the corresponding function on the digital inputs.
Reversing select
.
®
MG.02.A4.02 - VLT is a registered Danfoss trademark
Multi set-ups
is selected in par. 0-10
Bit value = 1
Control ready
Unit ready
Enable
Error, trip
Error (no trip)
-
Trip locked
Warning
Speed = reference
Bus control
Frequency limit OK
Running
Resistor brake fault
Voltage exceeded
Torque exceeded
Thermal warning
5 Modbus RTU
Active Set-up
.
