Displays, controls and connections

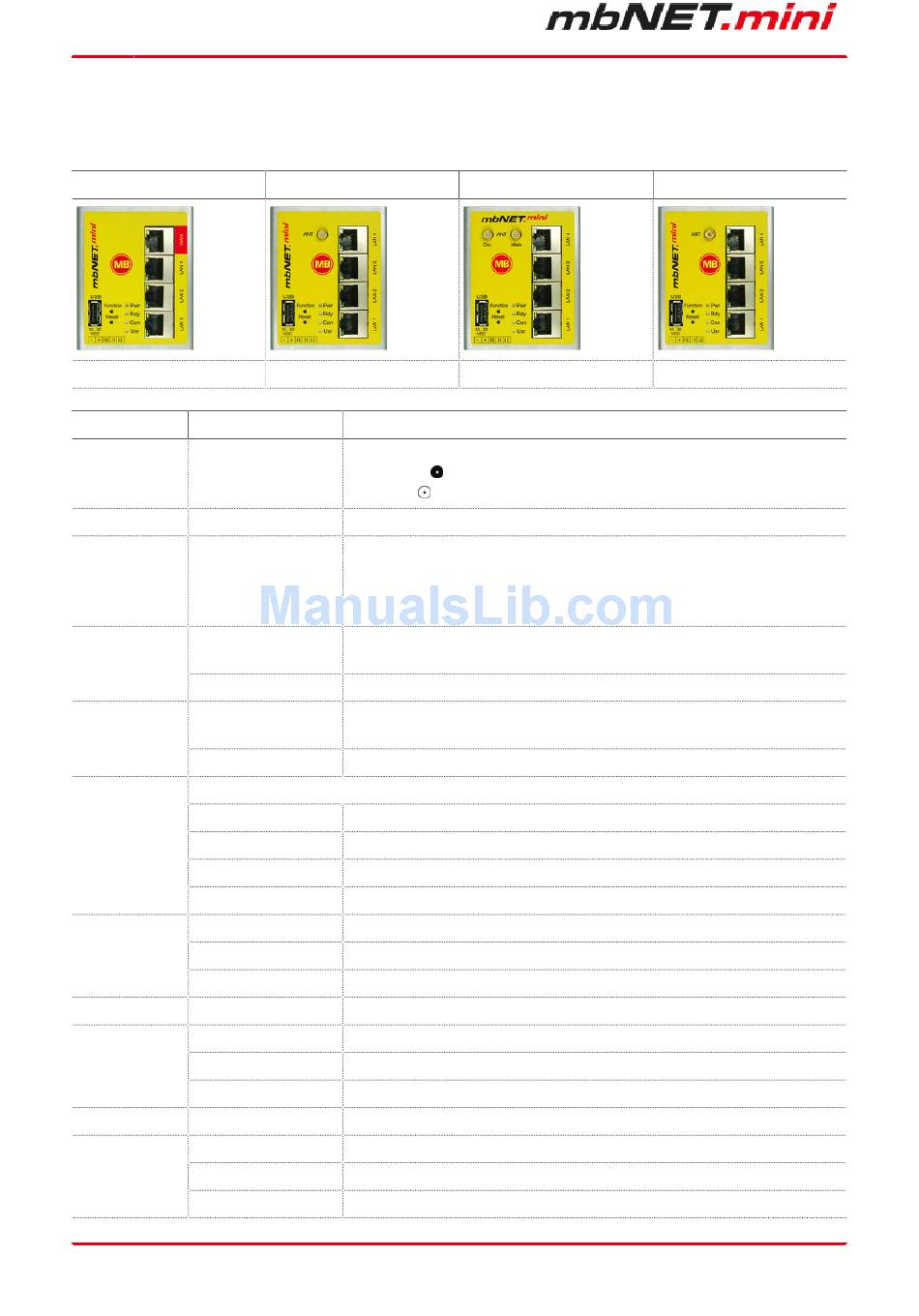

View of front of the device
MDH 860
1 x WAN; 3 x LAN; USB
Designation Status
ANT
Main
Div.
LED off
Pwr (Power)
LED on
LED flashing
Rdy (Ready)
LED on
This LED shows whether the device is connected to the Internet and the portal server.
LED off
Con (Connect) LED flashing (3Hz)
LED flashing (1,5Hz)
LED on
LED flashing (3Hz)
Usr (User) LED flashing (1,5Hz)
LED on
WAN
Orange LED flashing
WAN-LED Green LED on
Green LED off
LAN 1 - 4
Orange LED flashing
LAN-LED 1 – 4 Green LED on
Green LED off
Page 12 of 90 | Version: 1.6.0 DR 03 (10.01.2017) - EN | 10.01.2017
MDH 861
GSM 3G; 4 x LAN; USB
Description
SMA antenna connector:
- SMA female
SMA male (MDH 863)
- SMA antenna connector for use with one antenna
SMA antenna connector (combined with "Main") of
-
• a second antenna (macrodiversity)
• a MIMO antenna (microdiversity)
Device power source is switched off or device is not connected to power
source/power pack.
Power source is connected to terminal block and switched on.
After the system has been checked and started (duration approx. 25 sec),
the LED flashes for the duration of the starting up process (approx. 90 sec).
The device is ready for operation.
No connection to Internet or portal.
Internet or VPN connection being established.
Connection to portal server has been established.
Connection to the Internet has been established.
Firmware on USB stick ready to be updated.
Portal configuration on USB stick ready to be transferred.
Firmware or configuration is being copied to the device.
- Router WAN connection (customer network, DSL router).
Network data transfer active
Transfer rate = 100 MBit/s
Transfer rate = 10 MBit/s
- Local network connection (e.g. machine network, network data transfer).
Network data transfer active
Transfer rate = 100 MBit/s
Transfer rate = 10 MBit/s
MDH 862
GSM 4G; 4 x LAN; USB
(MDH 861, MDH 862)
MDH 863
WAN; 4 x LAN; USB
