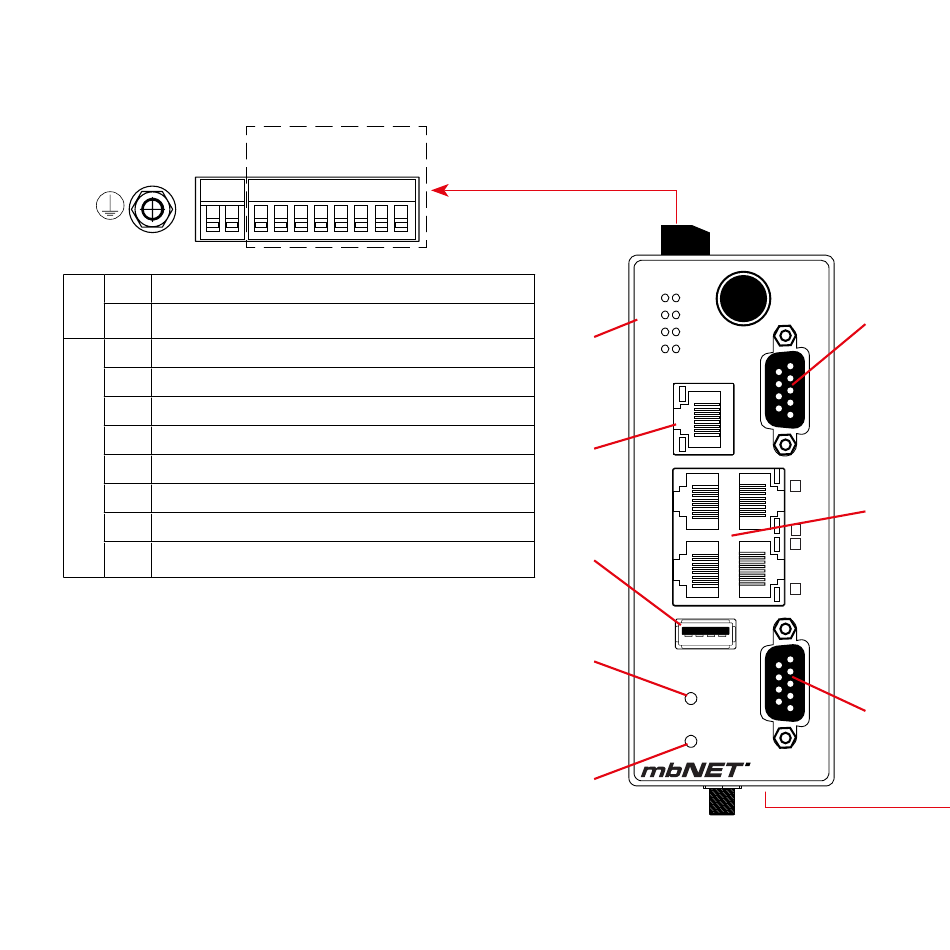

Displays, controls and connections

X1 X2
+ -
+ Power supply connection 10-30V DC
X1
– 0V DC connection
4 Digital input I4 (10-30V)
3 Digital input I3 (10-30V)
2 Digital input I2 (10-30V)
1 Digital input I1 (10-30V)
X2
P Fuse-protection 10-30V DC
M 0V DC connection
O2 Digital output O2
O1 Digital output O1
1. Function / status LEDs
2. WAN interface
3. USB Host 2.0
4. Dial Out button
5. Reset button
6. Serial interface COM2
7. LAN interfaces 1 - 4
8. Serial interface COM1
galvanically isolated
I4 I3 I2 I1 P M O2 O1
