CAPA110/111 AMD Embedded G-Series Processor Capa Board with LVDS

2.3.9

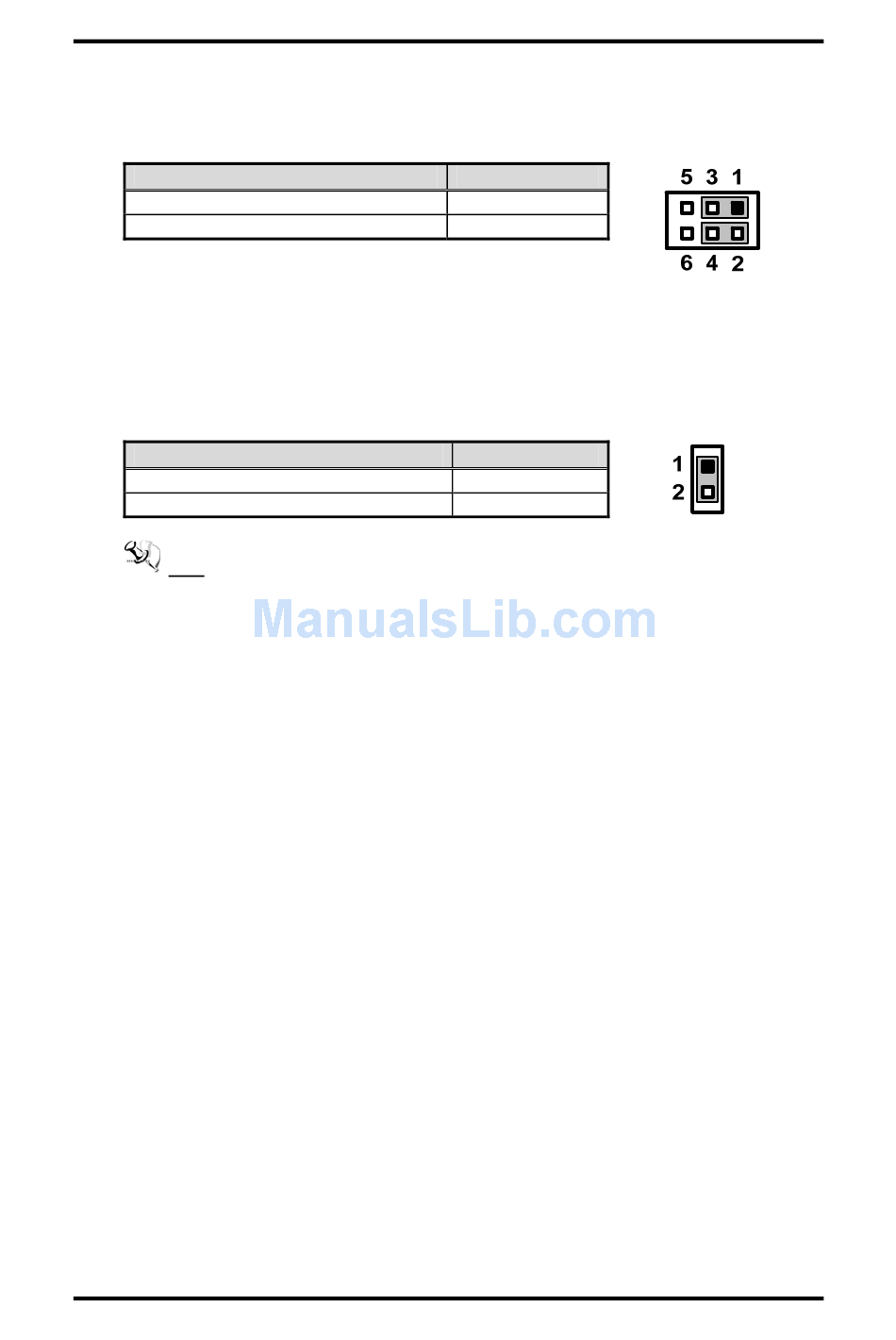

Audio Output Selection (JP13)

JP13 is to select line out or speaker out as source of audio output on audio connector

CN10. When speaker out is used, it delivers 2W/channel continuous into 8 Ohm loads.

Function

Line out (Default)

Speaker out

2.3.10

If JP15 is enabled for AC power input, the system will be automatically power on without

pressing soft power button. If JP15 is disabled for AC power input, it is necessary to

manually press soft power button to power on the system.

Function

Disable auto power on (Default)

Enable auto power on

Note: This function is similar to the feature of power on after power failure, which is

controlled by hardware circuitry instead of BIOS.

Setting

1-3, 2-4 close

3-5, 4-6 close

Setting

1-2 close

1-2 open
