CAPA110/111 AMD Embedded G-Series Processor Capa Board with LVDS
2.4.3

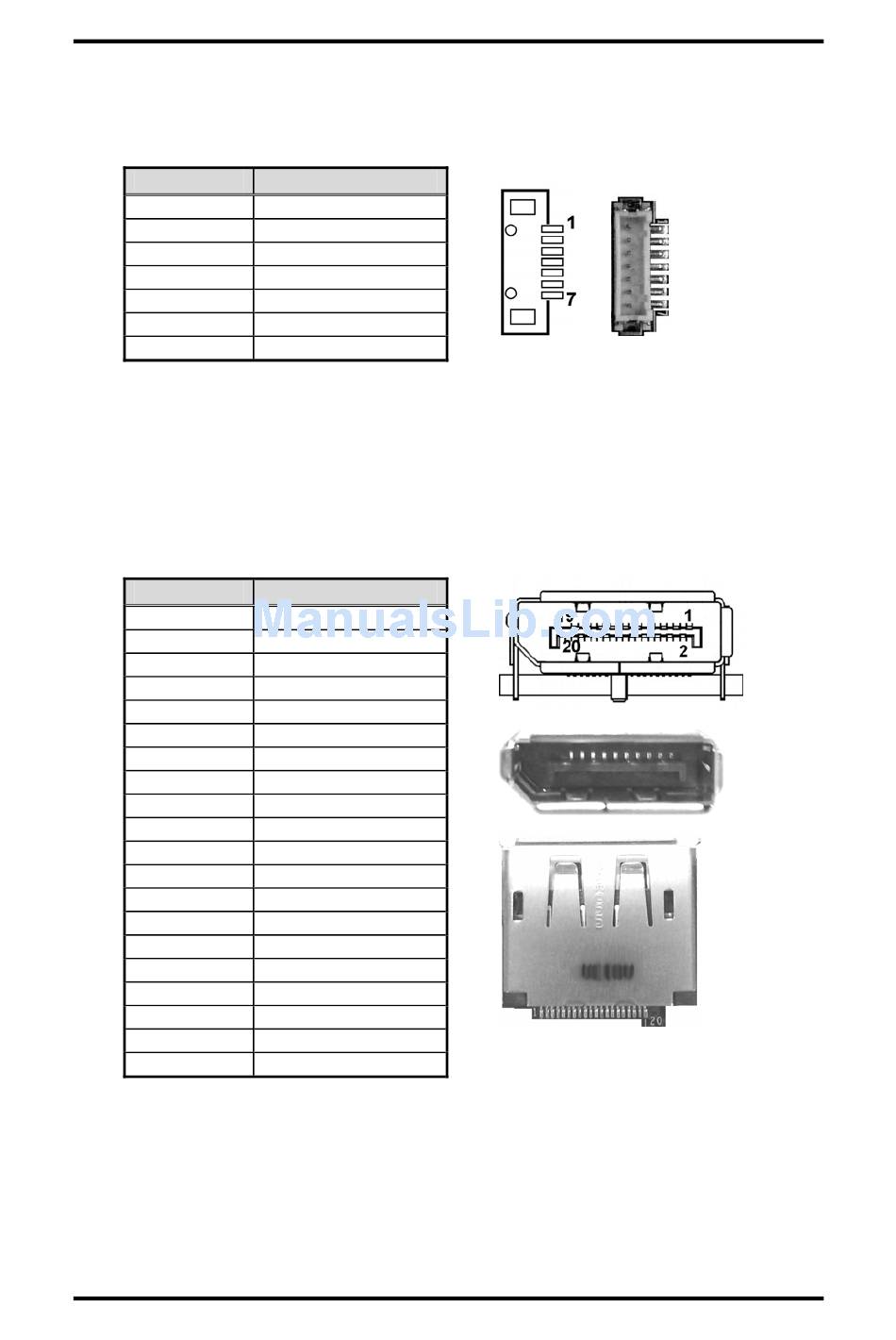

Inverter Connector (CN2)

The CN2 is DF13-7P-1.25V 7-pin connector for inverter. We strongly recommend you to
use the matching DF13-7S-1.25C connector to avoid malfunction.
Pin
1
2
3
4
5
6
7
2.4.4

DisplayPort Connector (CN3)

DisplayPort is a standard designed to replace digital (DVI) and analog component video
(VGA) connectors in computer monitors and video cards, as well as replace internal
digital LVDS links in computer monitor panels and TV panels. The CN3 is a DisplayPort
(digital display interface standard) connector which is co-layout with a standard DB-9
connector (COM1).
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
16
Signal
VBL1 (+12V level)
VBL1 (+12V level)
VBL2 (+5V level)
VBL_ENABLE
GND
GND
GND
Signal
DPB_LANE0
GND
DPB_LANE0#
DPB_LANE1
GND
DPB_LANE1#
DPB_LANE2
GND
DPB_LANE2#
DPB_LANE3
GND
DPB_LANE3#
Detect Pin
GND
DPB_AUX
GND
DPB_AUX#
DPB_HPDE
GND
+3.3V
1 20
Board Layout and Pin Assignments
