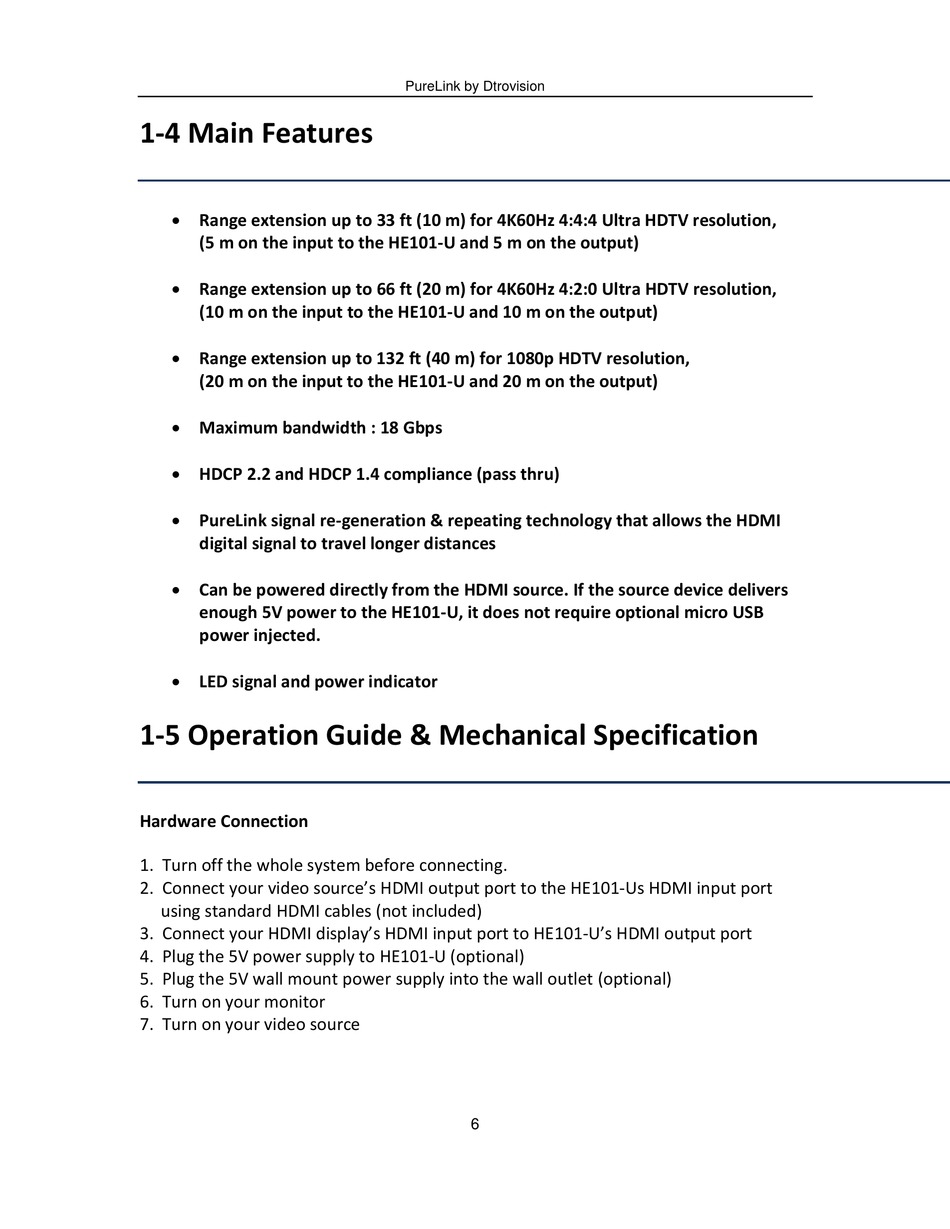

1-4 Main Features

 Range extension up to 33 ft (10 m) for 4K60Hz 4:4:4 Ultra HDTV resolution,
(5 m on the input to the HE101-U and 5 m on the output)
 Range extension up to 66 ft (20 m) for 4K60Hz 4:2:0 Ultra HDTV resolution,
(10 m on the input to the HE101-U and 10 m on the output)
 Range extension up to 132 ft (40 m) for 1080p HDTV resolution,
(20 m on the input to the HE101-U and 20 m on the output)
 Maximum bandwidth : 18 Gbps
 HDCP 2.2 and HDCP 1.4 compliance (pass thru)
 PureLink signal re-generation & repeating technology that allows the HDMI
digital signal to travel longer distances
 Can be powered directly from the HDMI source. If the source device delivers
enough 5V power to the HE101-U, it does not require optional micro USB
power injected.
 LED signal and power indicator
1-5 Operation Guide & Mechanical Specification
Hardware Connection
1. Turn off the whole system before connecting.
2. Connect your video source's HDMI output port to the HE101-Us HDMI input port
using standard HDMI cables (not included)
3. Connect your HDMI display's HDMI input port to HE101-U's HDMI output port
4. Plug the 5V power supply to HE101-U (optional)
5. Plug the 5V wall mount power supply into the wall outlet (optional)
6. Turn on your monitor
7. Turn on your video source
