2.2
Installation Procedures
2.2.1
Connect Power Cable
The panel PC has DC power socket (12 ~ 30 V). When connecting the power cable,
please hold the plug end. Please follow the procedures below:
1.
Connect the female end of the power cable to panel PC's DC socket.
2.
Connect the male end of the power cable to power outlet.
2.2.2
Connect Keyboard and Mouse
Connect the keyboard and mouse to panel PC's I/O interfaces.
2.2.2.1
Power ON
The power button is located in the right bottom side of the panel PC.
Note!
Power cable and adapter are optional.
PPC-4150W User Manual

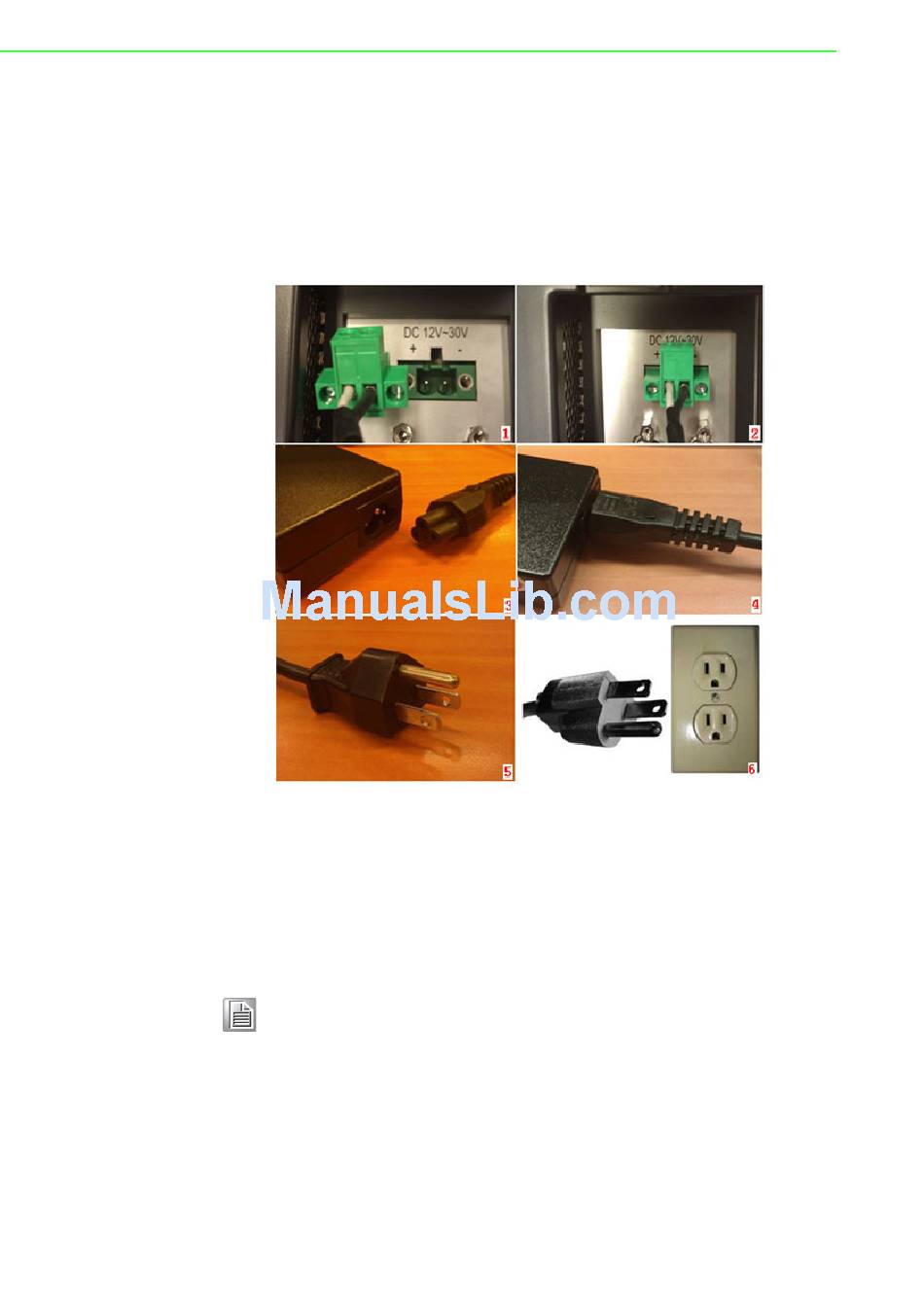

Figure 2.6 Connect power cable
10
