2.3

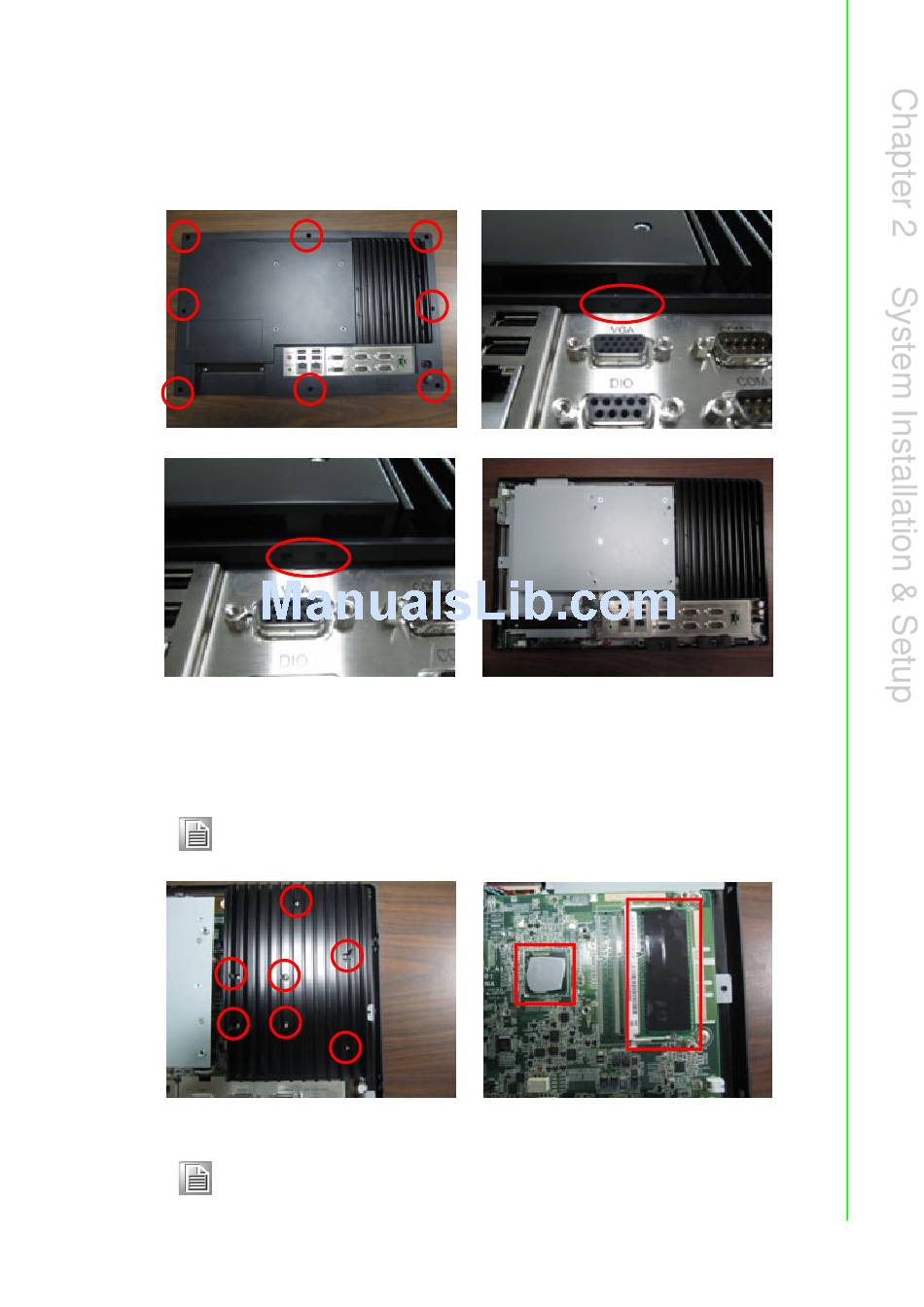

Install Memory Card
1.
Loosen the screws as indicated in the red circle. (See Fig 2.6)
2.
Press the red area pull out the card holder (See Fig 2.8 ~ 2.10) and open the
rear cover.
3.
Remove the screws as indicated in the red circle. (See Fig 2.11), and take out
the CPU cooler.
Note!
The black and grey lumps as indicated in the red circle of Fig 2.12 are
cooler pads, which must be removed by professional personnels to
avoid improper use.
Note!
CPU cooler pad surface is isolated by anodization treatment to avoid
static electricity (CPU contact side excluded).
Figure 2.7
Figure 2.9
Figure 2.11
Figure 2.8
Figure 2.10
Figure 2.12
11
PPC-4150W User Manual
