3.1 Jumper & Connectors
CN15
J P1
Interface
JP1
CN58
JP1
(1-3)
(3-5)
CN58
(1-2)
(3-4)
PPC-4150W User Manual

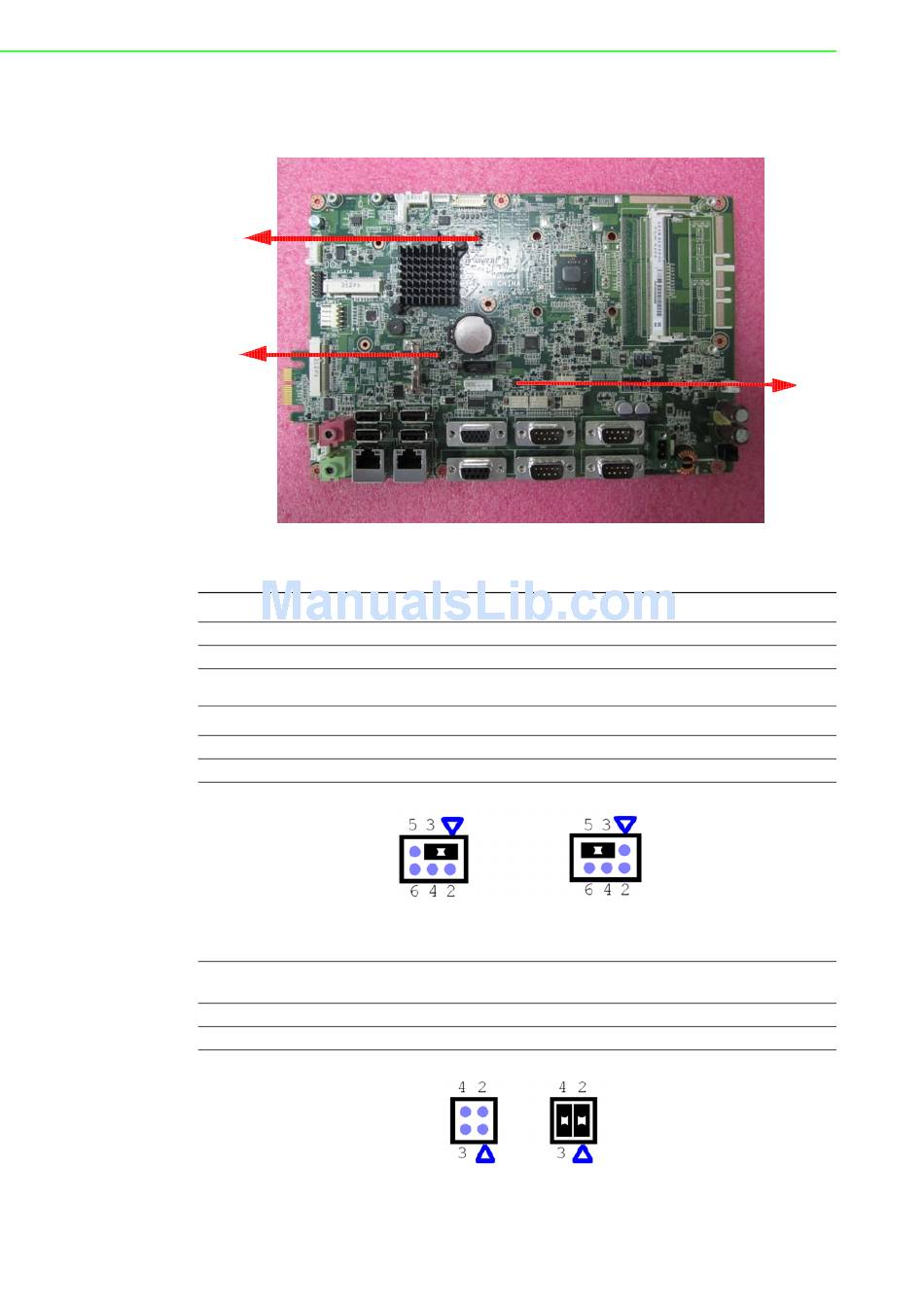

Figure 3.1 PCM-8208 front view
Function
Clear CMOS
RS422 120 ohm resistor selection (COM2)
Image Clear CMOS
P3 Clear CMOS
P4 Clear CMOS (Default)
P3
RS422 120 ohm resistor selection
(COM2)
P5 Break 120 ohm resistor
P6 Add 120 ohm resistor
P5 P6
22
P4
CN58
