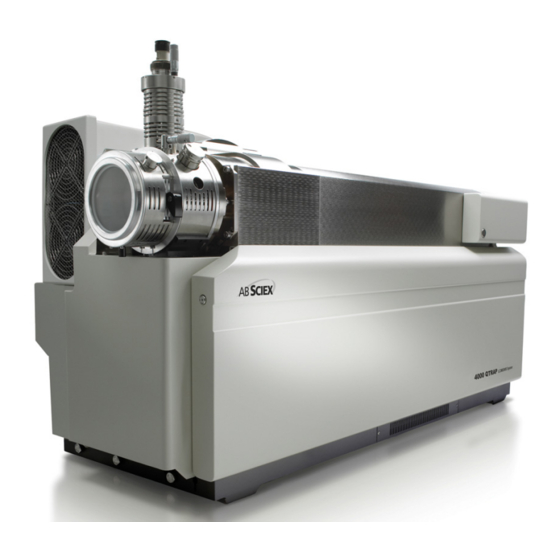

- Page 1 AB SCIEX 4000 Series of Instruments Site Planning Guide RUO-IDV-01-0563-A | D5040008 A June 2014...
- Page 2 AB Sciex warranties are limited to those express warranties provided at the time of sale or license of its products and are AB Sciex s sole and exclusive representations, warranties, and obligations.
-
Page 3: Table Of Contents
System Electrical Specifications..........................21 Gas Supply Requirements..............................23 Optional Gas Generators............................24 Ventilation and Waste Collection Requirements......................25 Computer and Network Requirements..........................27 Acquisition Computer..............................27 Printer Requirements..............................27 LAN Connection (Optional)............................27 Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 3 of 33... - Page 4 Sound Pressure Level..............................29 Vibration..................................29 Customer Supplied Solutions and Equipment........................30 Appendix B Health and Safety Precautions....................31 Chemical Precautions...............................31 Appendix C Equipment Safety Categories....................32 Revision History............................33 AB SCIEX 4000 Series of Instruments Site Planning Guide 4 of 33 RUO-IDV-01-0563-A | D5040008 A...
-
Page 5: Chapter 1 Customer And Fse Responsibilities
AB SCIEX 4000 series systems. For safety and regulatory information, refer to the Safety Practices Guide, available at www.absciex.com. Note: If the site preparation tasks are not complete when the AB SCIEX Field Service Employee (FSE) arrives, then the scheduled installation will be postponed. -
Page 6: Fse Responsibilities
Customer and FSE Responsibilities • When the shipment arrives, inspect the packaging for damage and contact AB SCIEX Customer Service or the local FSE to schedule the installation. • If available (or applicable), identify a qualified maintenance person (QMP) who is suitably aware of the electrical and chemical risks associated with servicing laboratory equipment. -
Page 7: Technical Support
Customer and FSE Responsibilities Technical Support AB SCIEX and its representatives maintain a staff of fully-trained service and technical specialists located throughout the world. They can answer questions about the system or any technical issues that might arise. For more information, visit the Web site at www.absciex.com. -
Page 8: Chapter 2 Site Planning Checklist
Site Layout Requirements on page Requirement Complete The measured building clearances can accommodate the equipment and crate dimensions. If the requirements cannot be met, then contact the FSE. AB SCIEX 4000 Series of Instruments Site Planning Guide 8 of 33 RUO-IDV-01-0563-A | D5040008 A... -
Page 9: Electrical Requirements
A qualified electrician has determined the appropriate AC mains supply configuration based on the system electrical specifications found in System Electrical Specifications on page Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 9 of 33... -
Page 10: Gas Supply Requirements
Source exhaust gas is available: • Clean, dry, and oil-free air or UHP nitrogen (99.999%) or an AB SCIEX-recommended gas generator • Delivery pressure of 55 psi (3.79 bar) to 60 psi (4.14 bar) with flows up to 6 L/min (Optional) If an AB SCIEX-recommended gas generator or mass spectrometer bench is used, then a supply of compressed oil-free air is provided, with a delivery pressure of 120 psi (8.3... -
Page 11: Ventilation And Waste-Collection Requirements
(Optional) The computer name and password supplied are a network computer name and domain password. (Optional) A network or IT specialist is available to connect the computer to the company LAN while the FSE is present. Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 11 of 33... -
Page 12: Environmental Requirements
BioSafety Requirements Refer to BioSafety Requirements on page Requirement Complete The site is not designated as BioSafety Level 3 (BSL-3) or BioSafety Level 4 (BSL-4). AB SCIEX 4000 Series of Instruments Site Planning Guide 12 of 33 RUO-IDV-01-0563-A | D5040008 A... -
Page 13: Mass Spectrometer Bench Requirements
Site planning for optional peripheral devices and software is completed, as required. Product Familiarization Requirement Complete Go to the AB SCIEX Learning Portal at www.training.absciex.com and click the link to request an account. When you receive your account information, complete the online learning modules. -
Page 14: Comments
Completion date (yyyy-mm-dd) I acknowledge that all installation requirements, as specified in this document, have been met. FSE name Return date (yyyy-mm-dd) FSE e-mail AB SCIEX 4000 Series of Instruments Site Planning Guide 14 of 33 RUO-IDV-01-0563-A | D5040008 A... -
Page 15: Appendix A Site Requirements
Laboratory Layout and Site Clearances Make sure that the site meets the required building clearances for installation and service access. Refer to Figure A-1. Figure A-1 Laboratory Layout Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 15 of 33... -
Page 16: Weights And Dimensions
33 kg (73 lbs) pump) Roughing pump (dry 40 cm 33 cm (13 inches) 48 cm (18.9 inches) 48 kg (106 lbs) pump) (15.7 inches) AB SCIEX 4000 Series of Instruments Site Planning Guide 16 of 33 RUO-IDV-01-0563-A | D5040008 A... -
Page 17: Electrical Requirements
A Line Adjustment Transformer (PN WC04179) is required if the voltage is not in the recommended range (207 VAC to 242 VAC), but it is not less than 188 VAC or greater than 250 VAC. Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 17 of 33... -
Page 18: Mains Supply Connections
• (Optional) One branch circuit with one or more outlets for the optional standalone gas generator. Contact the manufacturer of the gas generator for more information. • One branch circuit for the acquisition computer, monitor,and printer. For electrical requirements for AB SCIEX-supplied components, refer to System Electrical Specifications on page 21. - Page 19 • The branch circuit for the acquisition computer and monitor (branch circuit 4 in Figure A-2 on page can be 15 A 120 VAC. Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 19 of 33...
-
Page 20: Mains Supply Fluctuations
(mass spectrometer, computer, monitor, and roughing pump) during power outages. If the system is powered by a UPS or power conditioner, then it must meet the following specifications. AB SCIEX 4000 Series of Instruments Site Planning Guide 20 of 33... -
Page 21: System Electrical Specifications
Table A-7 Roughing Pump Electrical Specifications: Wet Pump Specification Value Nominal input voltage 200 VAC to 240 VAC Frequency 50 Hz or 60 Hz Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 21 of 33... - Page 22 Monitor (Dell UltraSharp P2314H 23" Widescreen Flat Panel) Nominal input voltage 100 VAC to 240 VAC Frequency 50 Hz or 60 Hz Maximum input current 2.5 A AB SCIEX 4000 Series of Instruments Site Planning Guide 22 of 33 RUO-IDV-01-0563-A | D5040008 A...
-
Page 23: Gas Supply Requirements
Do not use liquid pipe sealant. If threaded fittings must be used, then Teflon tape may be used to seal the threads. Do not use soldered fittings unless the tubing is thoroughly cleaned afterwards. Figure A-4 Recommended Gas Connections Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 23 of 33... -
Page 24: Optional Gas Generators
Optional Gas Generators Return to checklist. Gas generators are available from AB SCIEX. Refer to the manufacturer s documentation that comes with the generator for system specifications. Refer to the manufacturer's documentation for information on the number and type of outlets required. -
Page 25: Ventilation And Waste Collection Requirements
• Provide a fitting for the source exhaust drain bottle with an o.d. of 1.3 cm (0.5 inch). The vent must be within 1.5 m (60 inches) of the source exhaust drain bottle. Refer to Figure A-6. Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 25 of 33... - Page 26 Roughing pump exhaust hose: 3.2 cm (1.25 inches) i.d. Source exhaust drain bottle Source exhaust drain tubing: 1.3 cm (0.5 inch) i.d. Roughing pump vacuum inlet hose AB SCIEX 4000 Series of Instruments Site Planning Guide 26 of 33 RUO-IDV-01-0563-A | D5040008 A...
-
Page 27: Computer And Network Requirements
If you want to connect the acquisition computer to the network, then: • Make sure that an active, tested LAN connection is in place before the scheduled installation date. Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 27 of 33... -
Page 28: Environmental Requirements
BioSafety Requirements Return to checklist. The site must not be designated BioSafety Level 3 (BSL-3) or BioSafety Level 4 (BSL-4). AB SCIEX does not install, service, or repair AB SCIEX mass spectrometers in areas designated BSL-3 or BSL-4. AB SCIEX 4000 Series of Instruments... -
Page 29: Sound Pressure Level
AB SCIEX recommends that the sound pressure level be measured or calculated by the user both at the operator's position in normal use and at whatever point 1 m from the enclosure of the equipment has the highest sound pressure level. -
Page 30: Customer Supplied Solutions And Equipment
• HPLC-grade deionized water (1 L) • Formic acid, 99% or higher (50 mL) • LC system, including waste bottles and required tubing and cutter, unless ordered through AB SCIEX. For requirements and specifications for the LC system, contact the manufacturer. -
Page 31: Appendix B Health And Safety Precautions
• Avoid skin contact with chemicals during cleaning, and wash hands after use. • Comply with all local regulations for the handling of radioactive materials. Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 31 of 33... -
Page 32: Appendix C Equipment Safety Categories
Pollution Degree 2 Mains supply transient overvoltage Overvoltage Category II For more information, refer to the International Electrotechnical Commission standards IEC 61010-1 and IEC 60364. AB SCIEX 4000 Series of Instruments Site Planning Guide 32 of 33 RUO-IDV-01-0563-A | D5040008 A... -
Page 33: Ruo-Idv-01-0563-A | D5040008 A
First release of document. This document combines the API 4000 June 2014 LC/MS/MS System Site Planning Guide (PN 1041973A) and the 4000 QTRAP LC/MS/MS System Site Planning Guide (PN 1042287A). Site Planning Guide AB SCIEX 4000 Series of Instruments RUO-IDV-01-0563-A | D5040008 A 33 of 33...
