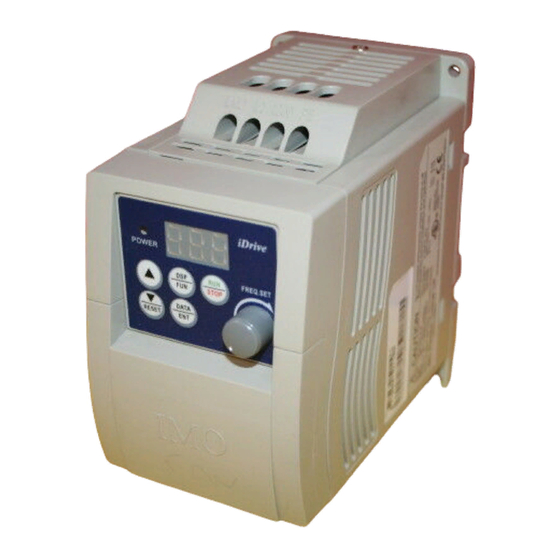

IMO iDrive Instruction Manual

Ac micro-inverters for small 3-phase induction motors 100v series, 1-ph / 0.2 – 0.75kw 200v series, 1-ph & 3-ph / 0.2 – 2.2kw 400v series, 3-ph / 0.75 – 2.2kw
Hide thumbs
Table of Contents

Advertisement

Quick Links

IMO
iDrive
EDX
AC micro-inverters for small
3-phase induction motors
100V series, 1-ph / 0.2 – 0.75kW
200V series, 1-ph & 3-ph / 0.2 – 2.2kW
400V series, 3-ph / 0.75 – 2.2kW
Version V3b.0906

Advertisement

Table of Contents
loading

Related Manuals for IMO iDrive

Summary of Contents for IMO iDrive

  • Page 1 AC micro-inverters for small 3-phase induction motors 100V series, 1-ph / 0.2 – 0.75kW 200V series, 1-ph & 3-ph / 0.2 – 2.2kW 400V series, 3-ph / 0.75 – 2.2kW Version V3b.0906...

  • Page 2: Quick Start Guide

    Step 1 - Before starting the inverter Please refer to chapter one (Preface) and chapter two (Safety Precautions) of the iDrive EDX instruction manual. Verify drive is installed in accordance with the procedures as described in chapter three (Environment and installation).
  • Page 3 Press RUN key; check that the motor accelerates smoothly to full speed. Press STOP key; check that the motor decelerates smoothly to zero speed. Step 5 - Other settings For other functions, please refer to iDrive EDX user manual. Upper frequency limit …………………………... P. 4-9 Lower frequency limit …………………………….P. 4-9 Acceleration time …………………………………...

  • Page 4: Table Of Contents

    3.3.4 EMC: Good wiring practice – motor side………………...… 3-11 3.4 Specification ………………………………………………………….. 3-13 3.4.1 Product individual specification..……………………………. 3-13 3.4.2 General specifications………………………………………… 3-14 3.5 Connection diagram………………………………………………….. 3-16 3.6 Description of inverter terminals ..…………………………..….….. 3-17 3.7 iDrive Dimensions ………………….…………………..……………. 3-20 3.8 Multi-iDrive installation with regenerative loads….……………….. 3-23...
  • Page 5 5-14 Chapter 6 Options ………………………………….………………………... 6.1 Option cards……………………………..………………………….… 6.1.1 RS-485 option card…………………..……………………… 6.1.2 RS-232 option card……………………………………..…… 6.1.3 Program copy option card………………………………….. 6.1.4 Remote keypad ……………………………………………….. 6.1.5 2 IN/OUT Card ……………………………………………… Appendix 1 iDrive EDX inverter parameter setting list……………… Appendix 1...

  • Page 6: Chapter 0 Preface

    Do not touch the main p c board even when power is off, or damage may o ccur. .2 Product Inspection iDrive EDX inverters have all passed a full function test before delivery. Please check the following when you receive and unpack the inverter: The model and capacity of the inverter is the same as those specified on your order.

  • Page 7: Chapter 1 Safety Precautions

    Chapter 1 Safety Precautions Chapter 1 Safety Precautions 1.1 Operation Precautions 1.1.1 Before Power Up Caution The line voltage applied must comply with the inverter’s specified input voltage. Danger Make sure the main circuit connections are correct. L1(L), L2, and L3(N) are power-input terminals and must not be confused with T1, T2 and T3.

  • Page 8: During Power Up

    Make sure the model and capacity are the same as those set by b89. 1.1.4 Earth / ground leakage current Warning Warning ! iDrive EDX series built-in filter type can give leakage current > 3.5mA. ALWAYS ENSURE INVERTER IS CORRECTLY EARTHED / GROUNDED.. Operation with ungrounded supplies: DO NOT use iDrive EDX inverters on ungrounded (floating) power supplies.

  • Page 9: During Operation

    Chapter 1 Safety Precautions 1.1.5 During operation Danger Do not connect or disconnect the motor while inverter is operating the motor otherwise the inverter and/or the disconnecting device may be damaged by the high level of switch-off current. Danger To avoid electric shock, do not remove the front cover when power is on. After a power-loss trip (under-volt) trip occurs, the motor will restart automatically when power is restored if auto-restart function is set.

  • Page 10: Chapter 2 Part Number Description

    Chapter 2 Model description Chapter 2 Part numbering description iDrive product rating label (example) Do not inspect components unless the lamp is off CAUTION See manual for correct installation and operation Model: EDX-040-21-E Motor Rating: 0.5HP / 0.4KW INPUT: AC 1 phase 50 / 60Hz VOLTAGE: 200 –...

  • Page 11: Chapter 3 Environment Description And Installation

    Avoid vibration (punching machine). Add a vibration-proof pad if the situation can not be avoided. If several inverters are placed in the same control panel, add extra heat dissipators to keep the temperature below 50 Air exchanging fan Air exchanging fan iDrive Inside the power (PE) distributor Inside the Inside the...
  • Page 12 Chapter 3 Environment description and installation The chassis of this model has DIN rail clip device to use when rail mounting. This model also can be installed side-by-side (when inside temperature below 50 ).
  • Page 13 ‧For EV-######-N4S type : 50/60HZ Ensure that the REV-0-FWD switch is set at ‘0’ (PE) (PE) (PE) (PE) position so that the iDrive has no run signal REV-0-FWD at power-on otherwise injury may SWITCH result. Potentiometer NOTE: - INFORMATION ON THIS PAGE SUBJECT TO DESIGN CHANGE.
  • Page 14 Chapter 3 Environment description and installation EDX-###-##-N4S installation : NOTE: - INFORMATION ON THIS PAGE SUBJECT TO DESIGN CHANGE. IF IN DOUBT PLEASE CONTACT IMO FOR LATEST INFORMATION.
  • Page 15 Chapter 3 Environment description and installation EDX-###-##-N4 installation : NOTE: - INFORMATION ON THIS PAGE SUBJECT TO DESIGN CHANGE. IF IN DOUBT PLEASE CONTACT IMO FOR LATEST INFORMATION.

  • Page 16: Environment Precautions

    Chapter 3 Environment description and installation 3.2 Environmental precautions Do not use the inverter in an environment with the following conditions: Direct sunlight Corrosive gas and liquid Wind, rain, and water Salt Iron filings, dust drops may get into Frame Size Excessive high Extreme low temperature Excessive vibration...

  • Page 17: Electrical Installation

    Chapter 3 Environment description and installation 3.3 Electrical Installation 3.3.1 Notice for wiring Screwdriver torque: Connect cables with a screwdriver or other suitable tools and follow the torque listed below. Tightening torque Horsepower Power source Nominal torque for TM1 terminal 0.25/0.5/1 0.2/0.4/0.75 100-120V 0.74 / 1.00...
  • Page 18 The iDrive’s electronic protection circuitry is designed to clear output short circuits and ground faults without blowing the input fuses. The table below shows the iDrive EDX input fuse ratings. To protect the inverter most effectively, use fuses with current-limit function.

  • Page 19: Mc, Mccb, Fuse And Cable Specifications

    3.3.2 MC, MCCB, Fuse and cable specifications. MCCB/ MC/ Fuse IMO warranty will not apply under the following condition. (1) MCCB or fuse is not installed or incorrectly installed or installed with over capacity, which has resulted in inverter failure.

  • Page 20: Ancillary Power Equipment - Supply Side

    Can also be used on the motor side when cable is very long. See next page. EMC filter: Standard iDrive EDX inverters have an integrated EMC filter to reduce electromagnetic interference to other equipment connected to the same ACA power supply.

  • Page 21: Emc: Good Wiring Practice - Motor Side

    E/Ground Earth cables to other equipment in Enclosure back plate enclosure (paint/coating free) L1(L) L2 L3(N) Brass earth studs 400V iDrive fixed through (for example) back plate and secured with P N T1 T2 T3 shake-proof washers. NB. Both ‘PE’...
  • Page 22 Chapter 3 Environment description and installation A ferrite choke in the output of the main circuit can suppress conducted noise. To limit the effects of radiated noise, unscreened motor cable should be put in an earthed metal conduit. Do not run control cables inside conduit or within 30 cm of the motor cables.

  • Page 23: Specification

    Chapter 3 Environment description and installation 3.4 Specification 3.4.1 Product individual specification 100V model 200V model iDrive EDX- □□□ EDX- □□□ -21(-E) EDX- □□□ 020 040 075 150 220 Horse power (HP) 0.25 0.25 0.5 0.25 Suitable motor capacity (kW) 0.75...

  • Page 24: General Specifications

    Chapter 3 Environment description and installation 3.4.2 General Specifications Output Frequency range 0~200Hz Starting torque 100% / 3Hz (Vector mode) Speed Control Range 1:50(Vector mode) Speed Control ±0.5% (Vector mode) accuracy Setting resolution ※1 Digital: 0.1Hz(0~99.9Hz)/1Hz(100~200Hz); analog: 0.06Hz/ 60Hz Keypad setting Set directly with▲▼...
  • Page 25 EN61800-3 First Environment; Unrestricted Distribution when carrier frequency is set at 1 0KHz or less Standard, filtered iDrive model numbers EDX-020-21-E to EDX-075-21-E, are in accordance with EN61800-3 First Environment; Unrestricted Distribution when carrier frequency is set at 1 0KHz or less Model numbers EDX-150-21-E and EDX-220-21-E are in accordance with EN61800-3 First Environment;...

  • Page 26: Connection Diagram

    Chapter 3 Environment description and installation 3.5 iDrive EDX connection diagram Braking Optional B.U. for braking Unit high-inertia loads Power terminals Single phase 100~120V • L1(L) Motor 1/3 phase 200~240V • 3 phase 380~480V • L3(N) (3) 24V PNP common terminal...

  • Page 27: Description Of Inverter Terminals

    Chapter 3 Environment description and installation 3.6 Description of Inverter Terminal Descriptions of power terminals Symbol Description L1 ( L ) Main power input Single-phase: L/N Three-phase: L1/L2/L3 L3 ( N ) ⊕ DC link and braking unit terminals. Never connect resistors directly to these terminals or damage will occur! ⊖...
  • Page 28 Chapter 3 Environment description and installation Control signal terminals block description 1 2 3 7 8 9 10 11 12 Symbol Description Rated contact capacity: Multi-functional output terminals (250VAC/10A resistive) Normally open relay contacts SPST (refer to b55 for functions) +10Vdc supply for external potentiometer for speed reference.
  • Page 29 Chapter 3 Environment description and installation SW1 and SW2 function description Type of external signal Remarks NPN input (SINK) PNP input (SOURCE) Factory default Type of external signal Remarks 0~10Vdc analogue signal Effective when A01=2 (external analogue input signal from control terminals TM2) 4~20mA analogue signal 3-19...

  • Page 30: Idrive Dimensions

    Chapter 3 Environment description and installation 3.7 iDrive Dimensions IP20 Frame 1: 1-phase 100V: EDX-020-11 ~ EDX-075-11 1-phase 200V: EDX-020-21 ~ EDX-075-21, EDX-020-21-E ~ EDX-075-21-E 3-phase 200V: EDX-020-23 ~ EDX-075-23 3-20...
  • Page 31 Chapter 3 Environment description and installation IP20 Frame 2: 1-phase 200V: EDX-150-21 ~ EDX-220-21; EDX-020-21-E ~ EDX-075-21-E 3-phase 200V: EDX-150-23 ~ EDX-220-23 3-phase 400V: EDX-075-43 ~ EDX-220-43; EDX-075-43-E ~ EDX-220-43-E Unit: mm/inch Dimension Frame Size Frame 1 132/5.2 123.5/4.86 67/2.64 77/3.03 Frame 2 132/5.2...
  • Page 32 1-phase 200V: EDX-020-21-NS4 ~ EDX-075-21-N4S (switch type) IP65 Frame 1: 1-phase 100V: EDX-020-11-N4S ~ EDX-075-11-N4S (no switch type) 1-phase 200V: EDX-020-21-NS4 ~ EDX-075-21-N4S (no switch type) NOTE: - INFORMATION ON THIS PAGE SUBJECT TO DESIGN CHANGE. IF IN DOUBT PLEASE CONTACT IMO FOR LATEST INFORMATION. 3-22...

  • Page 33: Multi-Idrive Installation With Regenerative Loads

    Must power up in sequence: Largest capacity first → smallest capacity last. DC fuses and/or other precautions may be necessary. Never connect ‘+’ terminals to ‘–‘ terminals or damage will occur. If in doubt consult your local iDrive distributor or dealer. 3-23...

  • Page 34: Chapter 4 Programming Instructions & Parameter List

    Chapter 4 Software index Chapter 4 Programming instructions & Parameter list 4.1 Keypad description 4.1.1 Keypad display and operation instructions iDrive Power LED (Red) iDri DISPLAY POWER DISPL FREQ. SET FREQ.S 4.1.2 Keypad navigation PARAMETER DISPLAY STATUS DISPLAY (Only when b93 = 001)
  • Page 35 Chapter 4 Software index Local / Remote change-over function Local mode Run Command Set (A00 = 000) Run command only from RUN / STOP keys on the keypad. Frequency command Set (A01 = 000): UP/DOWN keys on keypad control the motor frequency (speed). Set (A01 = 001): only the ‘Freq.Set’...

  • Page 36: Parameter Function List

    Chapter 4 Software index 4.2 Parameter functions Quick-Start ‘A’ parameter function list Factory Parameter Function Range / (Units) Setting Notes Number 000: Keypad RUN/STOP keys Operation control 001: Terminals 002: RS232/485 Comms 000: Keypad UP/DOWN keys 001: Potentiometer on Keypad Frequency control 002: AIN signal (TM2) 003: MFIT : Mot.
  • Page 37 Chapter 4 Software index Torque Boost Gain [Vector] 001 ~ 450 (%) Slip Compensation Gain [Vector] 001 ~ 450 (%) Low Frequency Dead-Band Voltage 000 ~ 040 Compensation [Vector] DC Injection Braking Time 00.0 ~ 25.5 (s) 00.5 DC Injection Braking Start Frequency 01.0 ~ 10.0 (Hz) 01.5 DC Injection Braking Level...
  • Page 38 Chapter 4 Software index 016: PID Disabled 017: Analog Frequency Signal Terminal S6 Function Input Terminal AIN 018: PID feedback signal (AIN) Terminal AIN Function 000: UP/DOWN Control ON (Freq. Held at Power OFF) 001: UP/DOWN Control ON Frequency UP/DOWN Control (MFIT) (Freq.
  • Page 39 Chapter 4 Software index Output Current Reached Set Value 000 ~ 100 (%) Output Current Detection Time 00.0 ~ 25.5 (S) 00.0 000: RUN 001: Frequency Reached (± b57) 002: Frequency in Range (b56 ± b57) 003: Frequency Detected (>b56) 004: Frequency Detected (<b56) Multi-Function Output Transistor...
  • Page 40 001: Coast to STOP 000: Display Hz Only Operation Monitor 001: Display Hz, A, V, PID, etc 000: Module Disabled 001: Copy iDrive to Module Copy Module 002: Copy Module to iDrive 003: Read / Write Check 010: Reset to Default (50Hz)
  • Page 41 Chapter 4 Software index Note: *1: Parameter value can be modified when iDrive output is on (motor running). *2: Frequency resolution is 1Hz for settings above 100 Hz. *3: Cannot be modified during communication. *4: Do not change while making factory setting.

  • Page 42: Parameter Function Description

    Chapter 4 Software index 4.3 Parameter Function Description Basic ‘A’ parameter functions 000: Keypad A00 Operation Control 001: External Terminal (Run Command) 002: Communication Control 1.) A00 = 000, inverter RUN/STOP command is from keypad. 2.) A00 = 001, inverter RUN/STOP command is from external terminals. 3.) A00 = 002, inverter RUN/STOP command by serial communication.
  • Page 43 Chapter 4 Software index A04 Acceleration time 1 (s): 00.1 – 999 A05 Deceleration time 1 (s): 00.1 – 999 Formula for acceleration/deceleration time: Denominator is based on factory setting in Sensorless vector control a) Motor rated frequency (Sensorless vector control). b) Max output frequency (V/F mode).
  • Page 44 Chapter 4 Software index A07 = 001 – 006 fixed V/F pattern (refer to following table). A07 V/F Pattern A07 V/F Pattern Spec Spec 4-11...
  • Page 45 Chapter 4 Software index A08 VF base voltage set A09 VF base frequency set In example below: A09 = 50Hz, b04 =100% If A08 setting is 200~240V, then output voltage for the pattern: A08 = 240 A08 = 220 A08 = 200 50.0Hz (C17) 50.0Hz (A09) The inverter output voltage cannot exceed the input voltage.
  • Page 46 Chapter 4 Software index Advanced ‘b’ parameters functions b00 Acceleration time 2 (s): 00.1 – 999 b01 Deceleration time 2 (s): 00.1 – 999 b02 Slip Compensation Gain (V/F) (%) 00.0 – 100% b03 Motor no-load current (A) Motor no-load current differs with inverter capacity b89. Adjust according motor information. b04: Output voltage ratio at max.
  • Page 47 Chapter 4 Software index • When the motor output torque is not enough, increase b14 set value. • If the motor vibrates or becomes very hot decrease b14 set value. • If running at low speeds for long periods, high b14 set value can cause the motor to overheat •...
  • Page 48 Chapter 4 Software index b17 DC braking time (s) 00.0~25.5 b18 DC braking start frequency (Hz) 01.0~10.0 b19 DC braking level (%) 00.0~20.0% b17 / b18: DC braking time and start frequency, as following figure: b20 Skip Frequency 1 (Hz) : 00.0 – 200 b21 Skip Frequency 2 (Hz) : 00.0 –...
  • Page 49 DC link voltage falls below the factory set level, then continues decelerating. 3.) The iDrive could stall during run mode due to an impact load or sudden changes of the load. Stall prevention in run mode will detect a programmed stall level (b25) for a period of time (b30) , if the level exceeds b25 , then the iDrive reduces its output frequency (speed) to provide the required additional torque to overcome the stall condition.
  • Page 50 Reset mode 001: Reset is enabled when a RUN command is OFF or ON. b34 = 000. Fault cannot be reset therefore iDrive cannot start if a RUN command is ON (A00=001) b35 ~ b38, b41 Selectable Functions for input terminals (S1 - S4 & AIN )
  • Page 51 Chapter 4 Software index Preset Speed Preset Speed Preset Speed Jog Frequency Output frequency Command 3 Command 2 Command 1 Command set value Set value = 004 Set value = 003 Set value = 002 Set value = 005 b35 ~ b38 (or b41) = 006: Emergency Stop (E.S) The inverter will decelerate to stop on receiving the external emergency stop signal.
  • Page 52 Chapter 4 Software index b35 ~ b38 (or b41) = 013: Communication Mode Select. Terminal OFF: In communication mode, the inverter is controlled by master (PC or PLC) run and frequency signals and also allowed to modify parameters. The keypad and TM2 run/frequency signal is not available at this time.
  • Page 53 Chapter 4 Software index b39 / b40 (option card) S5 / S6 terminal MFIT Setting 000: Run Forward 001: Run Reverse 002: Preset Speed Command 1 003: Preset Speed Command 2 004: Preset Speed Command 3 005: Jog Frequency Command 006: Emergency Stop (E.S.) 007: Base Block (b.b.) 008: Switching to 2 acceleration/ deceleration time.
  • Page 54 Chapter 4 Software index b43: Multi-function input terminal S1~S6 signal scan time (N. mS × 8), N = (1~100 times). b66: AIN signal scan time (N. mS × 8), N = (1~100 times). 1.) If b43 scan time is set to say 80mS (i.e N = 10) then digital input signals on for less then 80mS will be ignored.
  • Page 55 Chapter 4 Software index b55 Multi-function output RY1 000: Inverter output on - RUN 001: Frequency reached (Preset target frequency ± b57) 002: Frequency reached (Preset output frequency level (b56) ±b57) 003: Frequency Detection (>b56) 004: Frequency Detection (<b57) 005: Fault output 006: Auto restart 007: Momentary power loss 008: Emergency Stop (E.S.)
  • Page 56 Chapter 4 Software index b55 / b60 = 002 Preset output Frequency b56 ± b57 reached. No Run Signal, relay does not operate (A00) (b56) (b57) (b57) (b56) b55 / b60 = 003: Frequency detection F >b56 o u t 4-23...
  • Page 57 Chapter 4 Software index b55 / b56 = 004: Frequency detection Fout <b56 (A00) (b56) (b56) b58 Output Current reached set value b59 Output Current detection time b55: Output current detection value > b58 When set value is 015 b60: Output current detection value > b58 b58: Set value (000-100%) of motor rated current b09 b59: Set value (00.0-25.5s) 100%...
  • Page 58 Chapter 4 Software index b60 Multi-function output transistor T+, T- (Option card 000: Inverter output on - RUN 001: Frequency reached (Preset target frequency ± b57) 002: Frequency reached (Preset output frequency level (b56) ±b57) 003: Frequency Detection (>b56) 004: Frequency Detection (<b57) 005: Fault output 006: Auto restart 007: Momentary power loss...
  • Page 59 Chapter 4 Software index Upper frequency Upper frequency Bias Bias limit (A02=60.0) limit (A02=60.0) 100% 60Hz 100% 60Hz 050% 30Hz 30Hz 050% 000% 000% (4mA) (20mA) (4mA) (20mA) Fig (1) Fig (2) Fig (3) example settings below: Fig (4) example settings below: 100% 020% F 100% 100% 001 Upper frequency...
  • Page 60 Chapter 4 Software index b67 PID operation mode 000: PID Function disabled. 001: PID Control, deviation is derivative controlled 002: PID Control, feedback is derivative controlled. 003: Same as 001 but (reverse characteristics control). 004: Same as 002 but (reverse characteristics control). b67 = 001, D is the deviation from (target value –...
  • Page 61 Chapter 4 Software index b74 PID update time (s) : 00.0 - 02.5 b74: the refresh time of PID output command. Note: PID function is used in flow control, fan air volume control and temperature control. Control flow is as the following figure: b67 = 1 or 2 Frequency Command (Forward)
  • Page 62 Chapter 4 Software index Sleep-mode; Typical example: Inverter ‘sleeping’ Wake-up point Internal run command External run command Inverter output frequency PID output Sleep frequency (b75) b75: Sleep level b76: Sleep delay b77 Inverter Communication Address: 001~ 254 b77 sets communication address for a specific inverter when multi-inverters are controlled by serial communication method.
  • Page 63 Chapter 4 Software index 1. RS-485 communication: (requires RS485 port device)(Option) 1 to 1 control: One PC or PLC controls one inverter (b77 is set to 001~254). 1 to many control: PC or PLC or other controllers control several inverters (up to 254 inverters with b77 set as 001~254).
  • Page 64 Chapter 4 Software index b82/b83 Communication error timing diagram Master (PLC) T3 > b82 Slave (EDX) Tx b55 = 014 b83 = 0,1,2, (≠3) Frequency Dec at A05 b83 = 000 or 002 If A05 < b01 Dec at b01 Frequency Coast-to-stop b83 = 001...
  • Page 65 Chapter 4 Software index Frequency command When b84 = 000: only UP/DOWN on the keypad can control and the setting of A01 has no relationship. When b84 = 001: only VR on the keypad can control and the setting of A01 has no relationship.
  • Page 66 001: Reverse Only when A00 = 000, inverter operation is controlled by keypad. b89 Inverter capacity code (Input voltage – Output kW/HP) iDrive Rated Output Power iDrive Rated Output Power 110V - 0.18 / 0.25 220V – 2.2 / 3.0 110V - 0.37 / 0.5...
  • Page 67 Chapter 4 Software index b90 : External control operation mode 000: Forward/ Stop-Reverse/Stop 001: Run/ Stop-Forward/Reverse 002: 3-wire—Run/ Stop 1.) b90 is only available when A00 = 001 (control from terminals TM2). 2.) When both forward and reverse commands are ON, output is stopped. Parameter b90 = 000 (1).
  • Page 68 Chapter 4 Software index Parameter b90 timing and operation diagram b90 =2 Three wire control b90 =0 Run/Stop /Reverse b90 =1 Run/Reverse /Stop Note: If b91 = 001, reverse command is disabled. 000: Reverse enable b91 Reverse run 001: Reverse disable A00 = 000 and b91 = 001, b88 (motor direction) disable, the inverter is set to forward operation.
  • Page 69 Chapter 4 Software index b95 Factory default 010: Reset parameters to factory default (50Hz) 020: Reset parameters to factory default (60Hz) b96 Software version Displays inverter software version (Read only) b97 Fault records (Latest 3 Alarms) – (Read Only) 4-36...

  • Page 70: Chapter 5 Troubleshooting And Maintenance

    Chapter 5 Trouble shooting and maintenance Chapter 5 Troubleshooting and maintenance 5.1 Fault indication and remedy 5.1.1 Fault / Error display and Diagnostics 1. Non-resetable / unrecoverable errors Display Error Cause Remedy Memory problem EEPROM fault Change EEPROM Over voltage during Detection circuit malfunction Contact your supplier stopping...
  • Page 71 Chapter 5 Trouble shooting and maintenance 2. Errors which can be reset manually and automatically Display Error Cause Remedy 1. The motor winding and 1. Check the motor frame short circuit 2. Check the motor wiring Over-current at 2. Motor cable ground fault 3.
  • Page 72 Chapter 5 Trouble shooting and maintenance 3. Errors which can only be recovered manually but cannot be auto-recovered Display Error Cause Remedy 1. Detection circuit malfunctions Contact your supplier Over-current 2. Poor connection on CT during stop signal cable 1. Increase motor capacity 1.

  • Page 73: Set Up & Interface Errors

    Chapter 5 Trouble shooting and maintenance 5.1.2 Set up & Interface Errors. Display Error Description Zero speed stop Displayed when set frequency <0.1Hz 1. If the inverter is set to external control mode (A00 = 001), and direct start is disabled (b33=001), the inverter cannot be Fail to start started and will flash STP1 when Run command in ON when directly...

  • Page 74: Keypad Operation Error Descriptions

    Chapter 5 Trouble shooting and maintenance 5.1.3 Keypad operation error description Display Error Cause Remedy 1. Press▲ or ▼ keys when 1. ▲ or ▼ keys can be used A01 > 0 or in speed to modify frequencies only operation. when A01 = 0.

  • Page 75: General Functional Troubleshooting

    Chapter 5 Trouble shooting and maintenance 5.2 General functional troubleshooting Status Checking point Remedy Is the power applied? Turn the power OFF and then ON again. Is power applied to L1, L2, and L3(N) Make sure the power voltage is terminals (is the charging indicator lit)? correct.

  • Page 76: Idrive Troubleshooting Flowcharts

    Chapter 5 Trouble shooting and maintenance 5.3 iDrive Troubleshooting Flowcharts iDrive fault Is failure fully understood? Any symptoms Symptoms other than burn out, Check burnt and damaged of burnout ? parts damage in the inverter? Abnormal Is the main circuit...
  • Page 77 Connect and test run the motor replacement? Is there any abnormal display ‧ Are output currents of each phase even? is OK iDrive The inverter faults The iDrive is faulty. Contact your iDrive supplier Perform detailed checks...
  • Page 78 Is the control board working well after replacement? Connect motor and test run. Any abnormal values displayed? ‧ Are output currents of each phase even? Inverter faulty. The inverter faults The inverter’s output is OK Contact your iDrive supplier Perform detailed checks...
  • Page 79 T3? Is the inverter working ok after replacement? motor running Any abnormal output value? ‧ Are currents of all phases even? The inverter is faulty. The inverter faults Contact your iDrive supplier. The iDrive is OK Perform detailed checks 5-10...
  • Page 80 Chapter 5 Trouble shooting and maintenance The iDrive will not power-up / Motor will not run Is MCCB open? Can MCCB be Short-circuited wiring closed? or inverter input circuit damaged Are the voltages power supply fault between all correct? ‘LED display...
  • Page 81 Chapter 5 Trouble shooting and maintenance Motor overheating Is the load or the Reduce the load current exceeding the Increase capacities of iDrive and specified value? the motor Does motor run at low speed for Use forced cooling on motor...

  • Page 82: Routine And Periodic Checks

    Chapter 5 Trouble shooting and maintenance 5.4 Routine periodic checks To ensure stable and safe operation, check and maintain the inverter regularly. The table below lists the items requiring checking to ensure safe operation. Check these items 5 minutes after the “Charge” indicator goes out to prevent service persons from being hurt by residual electric power.

  • Page 83: Maintenance And Inspection

    (a) Disconnect all leads connecting iDrive with external circuits when performing insulation tests. (b) Internal insulation test should be performed on the main circuit of the iDrive only. Use a high resistance 500VDC meter with insulating resistance higher than 5MΩ.

  • Page 84: Chapter 6 Options

    Black cable to COM EDX-485 connection diagram: EDX-485 iDrive Note : In order to avoid external interfere with option card, fit top cover to the main unit. Use isolated RS232 / RS485 converter connecting with PC and option card to avoid damaging...
  • Page 85 Chapter 6 Peripherals 6.1.2 EDX-232 option card and cable EDX-232 connection diagram L1 (L) SINGLE/THREE-PHASE POWER SUPPLY L3 (N) iDrive RS-232 CON302 (12P) EDX-232 1.8 m...
  • Page 86 Chapter 6 Peripherals 6.1.3 EDX-MP option card (Copy Unit/ Memory pack) EDX-MP connection diagram SINGLE/THREE-PHASE L1 (L) POWER SUPPLY L3 (N) iDrive EDX-MP CON302 (12P)

  • Page 87: Remote Keypad

    Black cable to COM EDX-LED connection diagram iDrive • When the inverter is powered on or off it is possible to set up or remove the remote keypad, but must be connected to TM2 24V DC power in normal use.
  • Page 88 Chapter 6 Peripherals 6.1.5 EDX-IO 2 In/1 Out expansion card Red cable to 24V Black cable to COM 2 In/1 Out card wiring diagram iDrive CON302(12P)

  • Page 89: Appendix 1 Idrive Edx Inverter Parameter Setting List

    Appendix Appendix: iDrive -EDX inverter parameter setting list Inverter model: Company: Date: Application: Engineer: Note: Parameter Parameter Parameter Setting Setting Setting Number Number Number Appendix Ι...
  • Page 90 Documentation Every effort has been made by IMO Precision Controls Ltd to ensure that this document accurately represents the iDrive EDX range of micro inverters at the time of going to press. Information with respect to installation is necessarily generalised, and IMO accept no liability for contingencies over which we have no control in respect to the selection, installation and/or operation of equipment.
