Overview of Chassis

The 664 chassis is made of light-weight
and durable carbon-fiber.
The front panel of the chassis features
several easy-to-reach controls,
switches, LEDs, and a sunlight-visible
LCD screen.
Its side panels provide a variety of
connection options for ultimate I/O
flexibility. The top and bottom panels
offer additional connectors that allow
for expansion with the optional CL-6
accessory. And its back panel features
connections for COMs and word clock.

Front, Top, and Bottom Panels

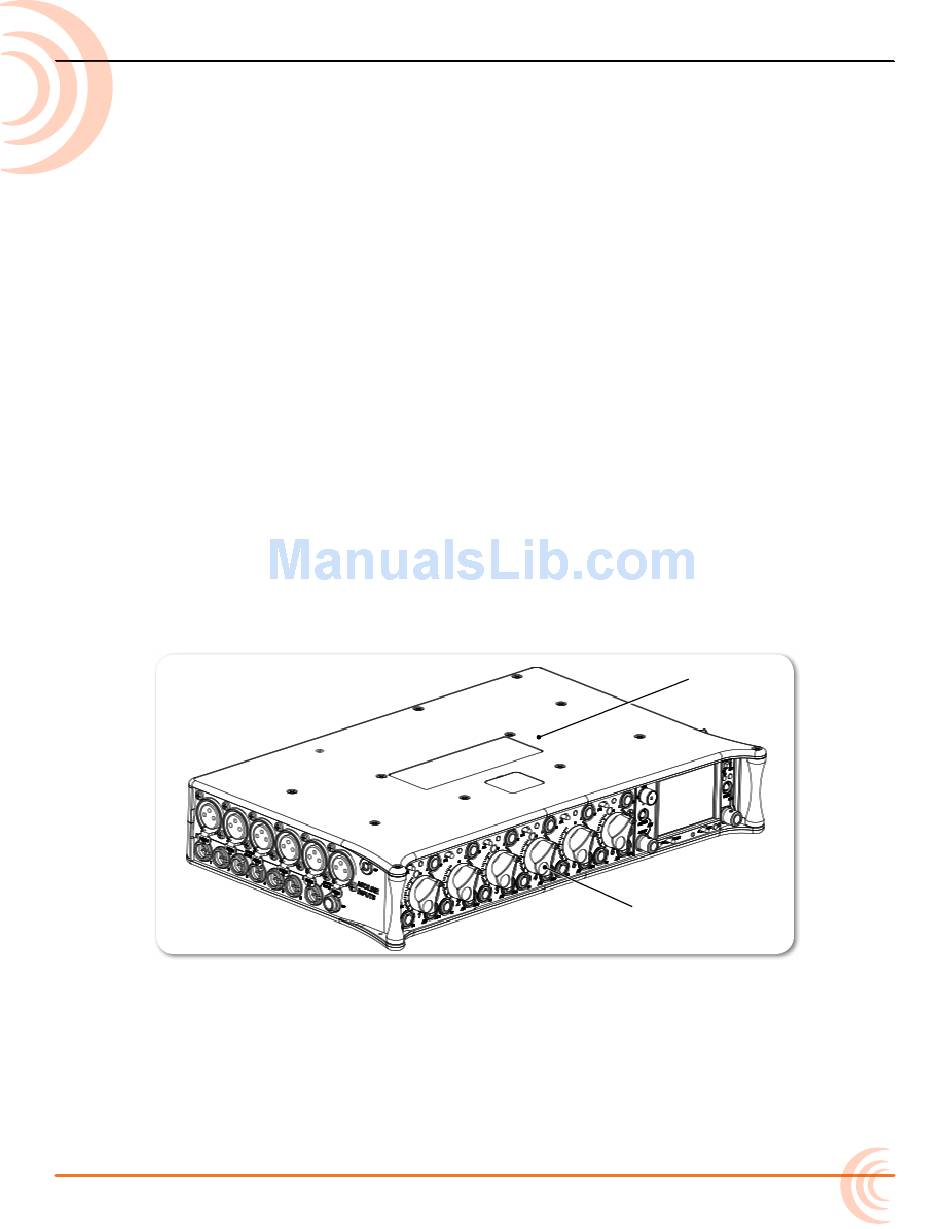

The top panel of the chassis features the SL-6 multi-pin header connector used
with the optional SL-6 accessory. Similar to the top panel, the bottom panel
(not shown) features the CL-6 multi-pin header connector used with the op-
tional CL-6 accessory. Both connectors are located under removable protective
covers.
Topics in this section include:
Front, Top, and Bottom Panels
Left Side Panel
Right Side Panel
Back Panel
