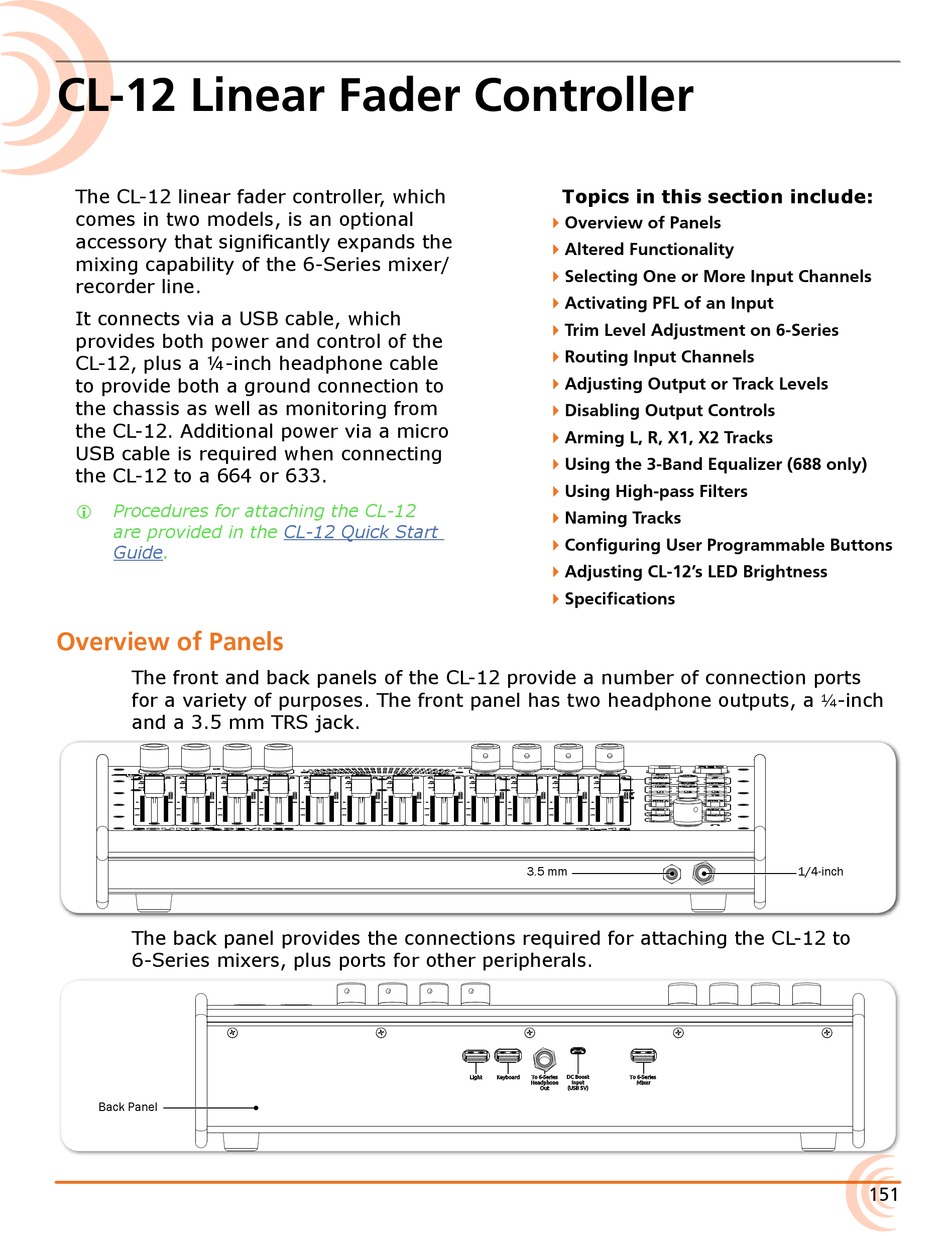

CL-12 Linear Fader Controller

The CL-12 linear fader controller, which
comes in two models, is an optional
accessory that significantly expands the
mixing capability of the 6-Series mixer/
recorder line.
It connects via a USB cable, which
provides both power and control of the
CL-12, plus a ¼-inch headphone cable
to provide both a ground connection to
the chassis as well as monitoring from
the CL-12. Additional power via a micro
USB cable is required when connecting
the CL-12 to a 664 or 633.
Procedures for attaching the CL-12
i
are provided in the
Guide.

Overview of Panels

The front and back panels of the CL-12 provide a number of connection ports
for a variety of purposes. The front panel has two headphone outputs, a ¼-inch
and a 3.5 mm TRS jack.
The back panel provides the connections required for attaching the CL-12 to
6-Series mixers, plus ports for other peripherals.
Back Panel
CL-12 Quick Start
Topics in this section include:
Overview of Panels
Altered Functionality
Selecting One or More Input Channels
Activating PFL of an Input
Trim Level Adjustment on 6-Series
Routing Input Channels
Adjusting Output or Track Levels
Disabling Output Controls
Arming L, R, X1, X2 Tracks
Using the 3-Band Equalizer (688 only)
Using High-pass Filters
Naming Tracks
Configuring User Programmable Buttons
Adjusting CL-12's LED Brightness
Specifications
3.5 mm 1/4-inch
