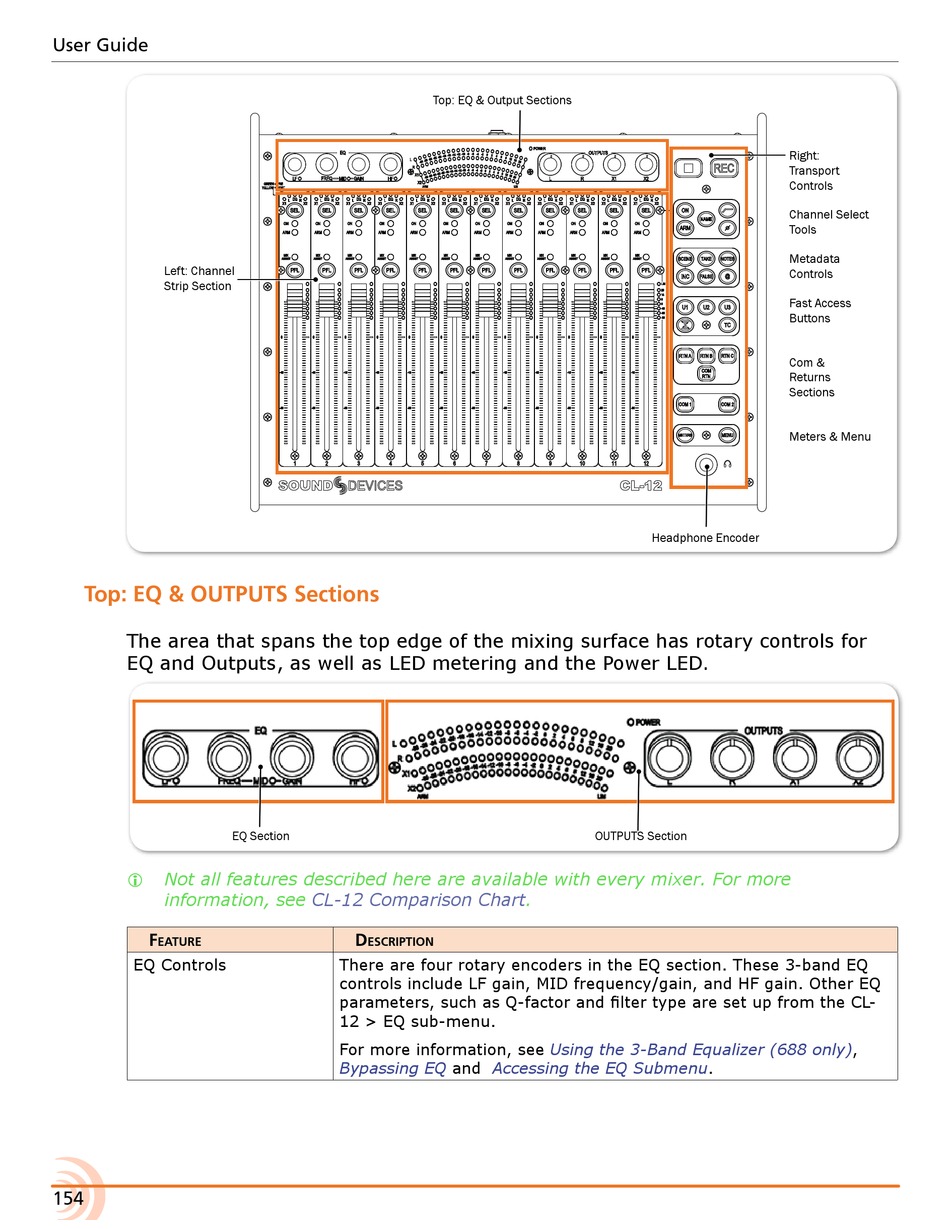

Top: EQ & OUTPUTS Sections
The area that spans the top edge of the mixing surface has rotary controls for
EQ and Outputs, as well as LED metering and the Power LED.
EQ Section
Not all features described here are available with every mixer. For more
i
information, see
F
eature
EQ Controls
154
Top: EQ & Output Sections
CL-12 Comparison Chart.
D
escription
There are four rotary encoders in the EQ section. These 3-band EQ
controls include LF gain, MID frequency/gain, and HF gain. Other EQ
parameters, such as Q-factor and filter type are set up from the CL-
12 > EQ sub-menu.
For more information, see
Bypassing EQ and Accessing the EQ
Headphone Encoder
OUTPUTS Section
Using the 3-Band Equalizer (688
Submenu.
