Arming/Disarming Tracks

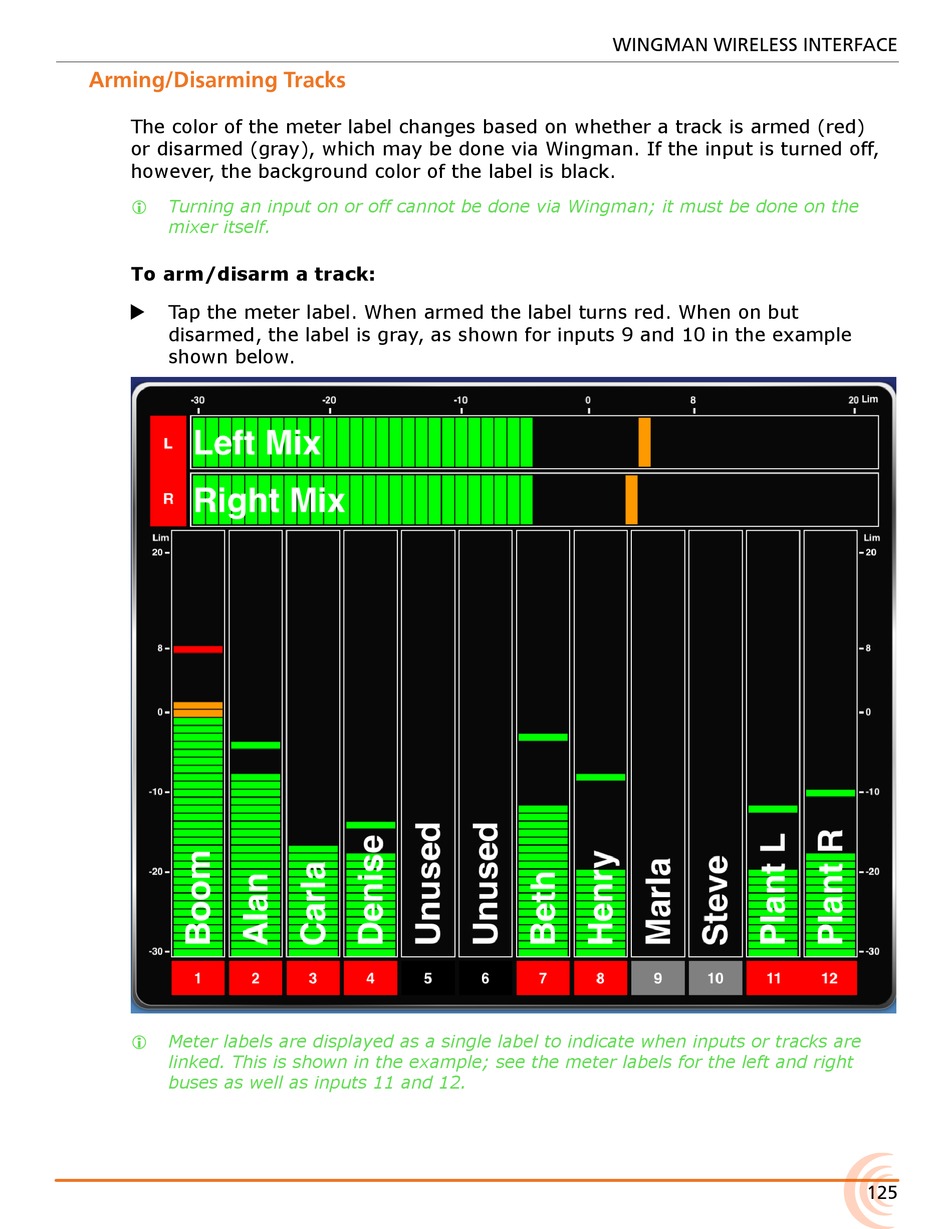

The color of the meter label changes based on whether a track is armed (red)
or disarmed (gray), which may be done via Wingman. If the input is turned off,
however, the background color of the label is black.
Turning an input on or off cannot be done via Wingman; it must be done on the
i
mixer itself.
To arm/disarm a track:
Tap the meter label. When armed the label turns red. When on but
X
disarmed, the label is gray, as shown for inputs 9 and 10 in the example
shown below.
Meter labels are displayed as a single label to indicate when inputs or tracks are
i
linked. This is shown in the example; see the meter labels for the left and right
buses as well as inputs 11 and 12.
WINGMAN WIRELESS INTERFACE
125
