User Guide

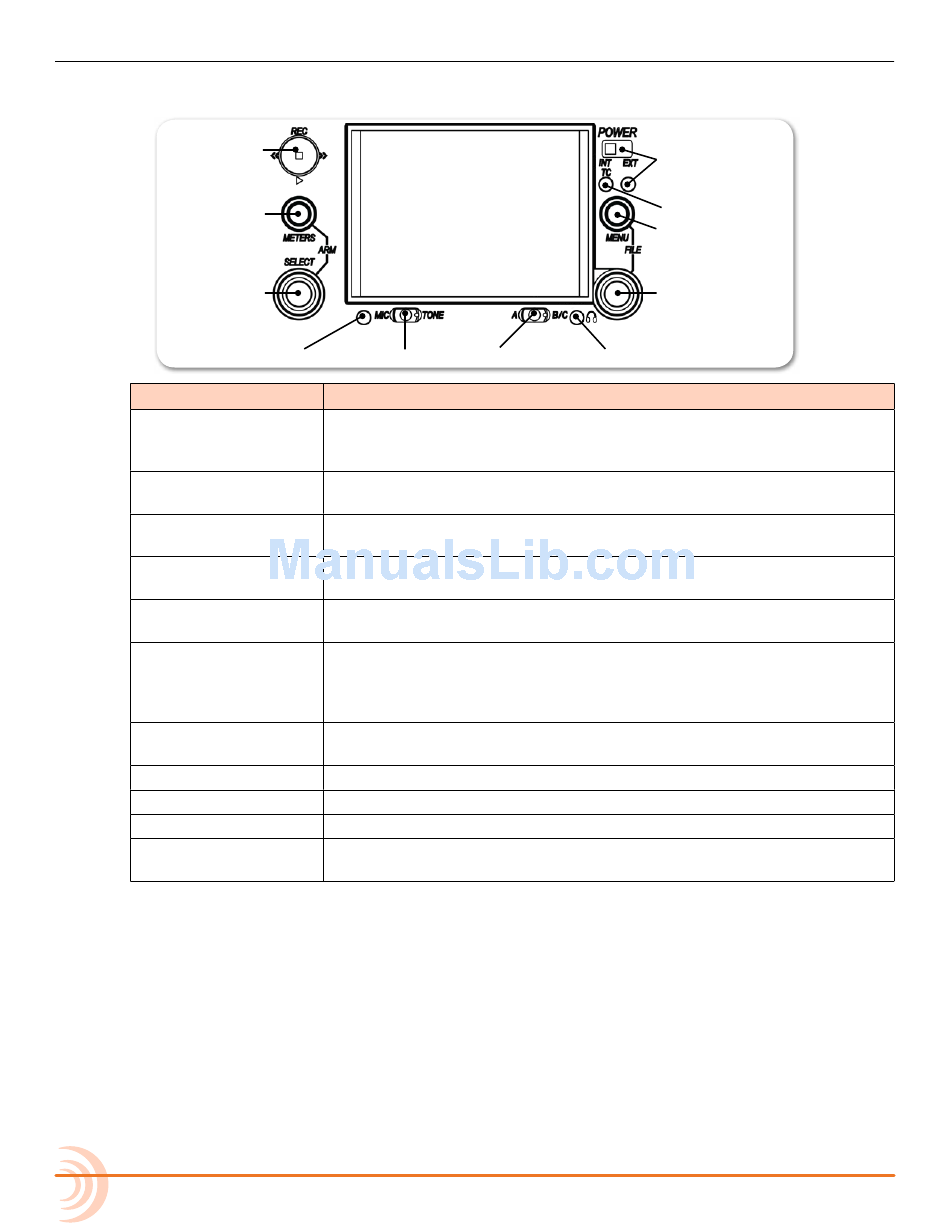

The front panel provides the LCD as well as several buttons, switches, and con-
trols as defined in the following tables.
Transport Control
Meters Button
Select Encoder
F
eature
Power Switch and LED
Timecode LED
Menu Button
Headphone Encoder
Headphone
Clipping LED
AB/C Switch
MIC/TONE Switch
Slate/Tone LED
Select Encoder
Meters Button
Transport Control
10
Slate/Tone LED
MIC/TONE Switch
D
escription
Powers 664 on and off with 3-way switch—left for internal battery
power, center for off, and right for external DC power. LED indicates
power status.
Flashes blue to indicate whether the internal timecode generator (and
QuickBoot) is active while the mixer is off.
Provides access to the Main menu. Used for various shortcut
functions.
Adjusts headphone level and monitor source. Used for various shortcut
functions.
Illuminates red to indicate headphone output is approaching clipping
level.
Toggles Returns A, B, and C. Slide left for RTN A, right for RTN B, and
for RTN C, press and hold the Select encoder while sliding switch right.
Can be customized in the Main menu (Comms/Returns). Used for vari-
ous shortcut functions.
Toggle slate mic and tone generator. Can be customized in the Main
menu (Comms/Returns). Used for various shortcut functions.
Indicates slate mic is active or tone generator is locked on.
Multiple purpose rotary encoder. Used for various shortcut functions.
Cycles between meter views. Used for various shortcut functions.
Controls playback and recording. Used for various shortcut
functions.
Headphone Clipping LED
AB/C Switch
Power Switch and LED
Timecode LED
Menu Button
Headphone Encoder
