Pinout – main I/O connector
The main I/O connector pinouts for each board are shown in the following tables. Note that the DIO[7:0]
signals are provided in two locations in order to provide flexibility for applications which use the C100HD50-x
ribbon cable.

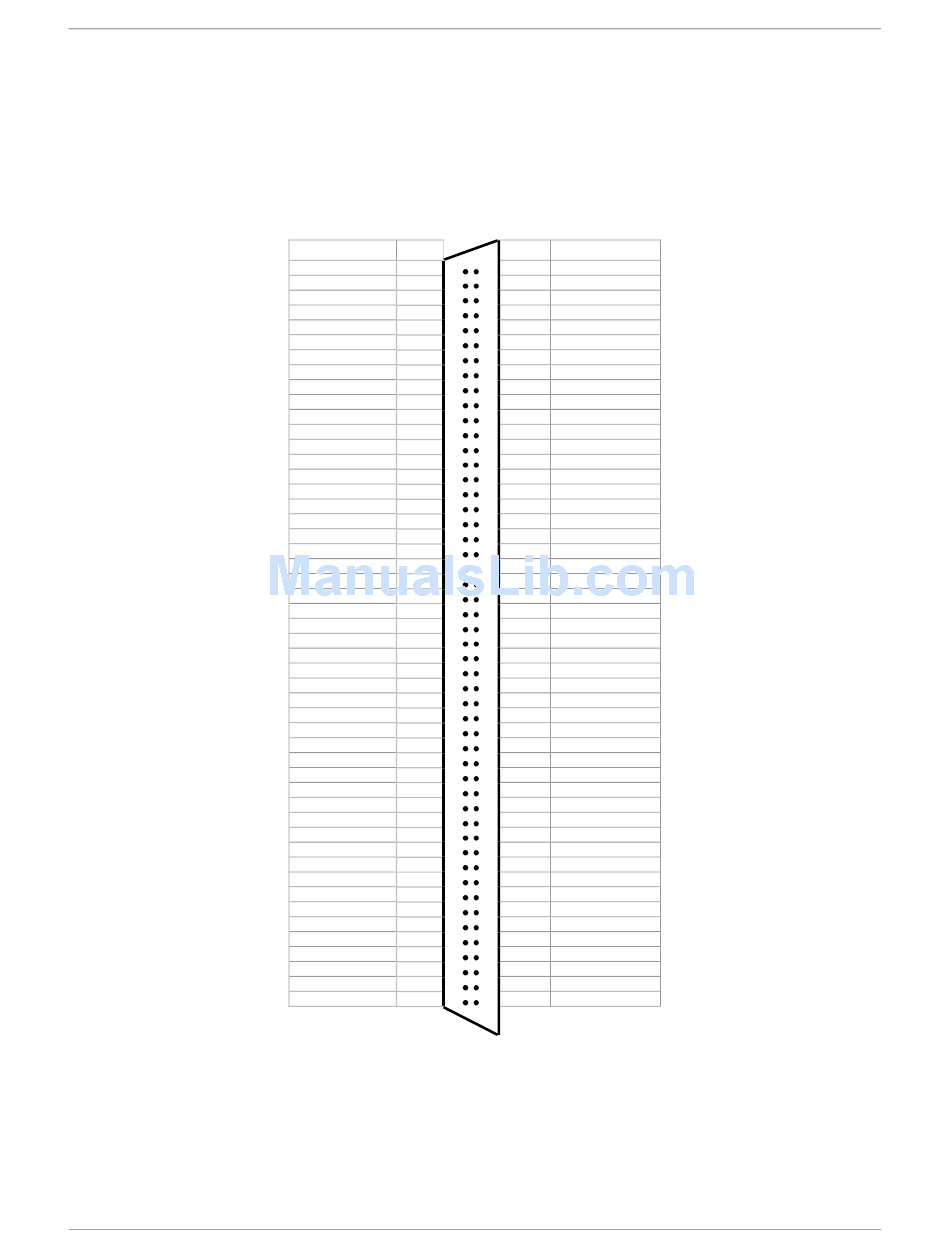

PCI-DAC6703 connector pin out
Signal name Pin
GND 100
n/c 99
n/c 98
n/c 97
GND 96
n/c 95
n/c 94
n/c 93
DIO7 92
DIO6 91
DIO5 90
DIO4 89
DIO3 88
DIO2 87
DIO1 86
DIO0 85
AGND 84
n/c 83
AGND 82
n/c 81
AGND 80
n/c 79
AGND 78
n/c 77
AGND 76
n/c 75
AGND 74
n/c 73
AGND 72
n/c 71
AGND 70
n/c 69
AGND 68
AGND 67
n/c 66
AGND 65
n/c 64
AGND 63
n/c 62
AGND 61
n/c 60
AGND 59
n/c 58
AGND 57
n/c 56
AGND 55
n/c 54
AGND 53
n/c 52
AGND 51
↓
PCI slot
13
Installing the PCI-DAC6702 and PCI-DAC6703
Pin Signal name
50 GND
49 n/c
48 DIO7
47 DIO6
46 DIO5
45 DIO4
44 n/c
43 DIO3
42 DIO2
41 DIO1
40 DIO0
39 PC 5V
38 n/c
37 n/c
36 n/c
35 n/c
34 AGND15
33 VCH15
32 AGND14
31 VCH14
30 AGND13
29 VCH13
28 AGND12
27 VCH12
26 AGND11
25 VCH11
24 AGND10
23 VCH10
22 AGND9
21 VCH9
20 AGND8
19 VCH8
18 AGND
17 AGND7
16 VCH7
15 AGND6
14 VCH6
13 AGND5
12 VCH5
11 AGND4
10 VCH4
9 AGND3
8 VCH3
7 AGND2
6 VCH2
5 AGND1
4 VCH1
3 AGND0
2 VCH0
1 AGND
