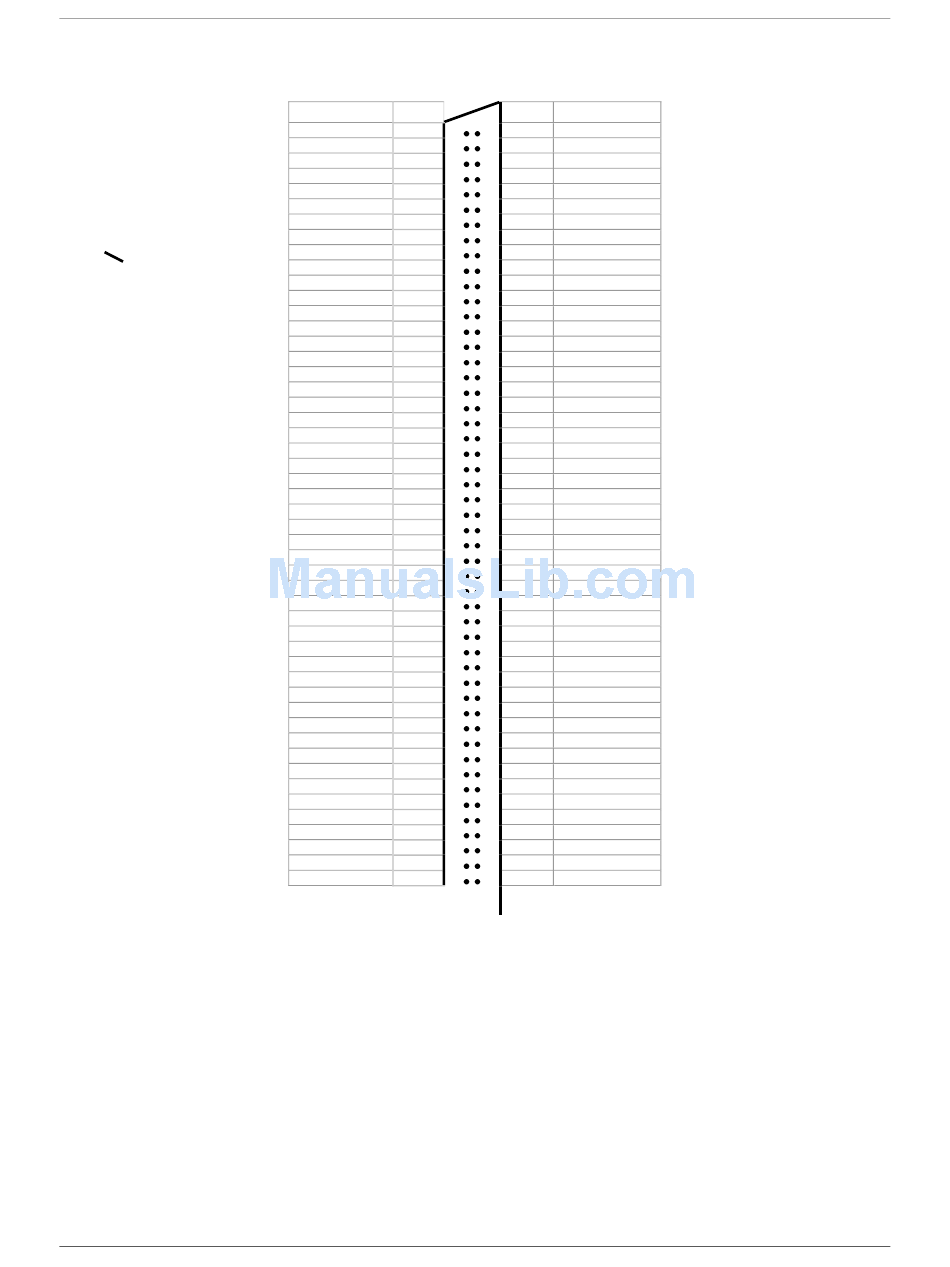

PCI-DAC6702 connector pin out
Signal name Pin
GND 100
n/c 99
n/c 98
n/c 97
GND 96
n/c 95
n/c 94
n/c 93
DIO7 92
DIO6 91
DIO5 90
DIO4 89
DIO3 88
DIO2 87
DIO1 86
DIO0 85
AGND 84
n/c 83
AGND 82
n/c 81
AGND 80
n/c 79
AGND 78
n/c 77
AGND 76
n/c 75
AGND 74
n/c 73
AGND 72
n/c 71
AGND 70
n/c 69
AGND 68
AGND 67
n/c 66
AGND 65
n/c 64
AGND 63
n/c 62
AGND 61
n/c 60
AGND 59
n/c 58
AGND 57
n/c 56
AGND 55
n/c 54
AGND 53
n/c 52
AGND 51
↓
PCI slot
14
Installing the PCI-DAC6702 and PCI-DAC6703
Pin Signal name
50 GND
49 n/c
48 DIO7
47 DIO6
46 DIO5
45 DIO4
44 n/c
43 DIO3
42 DIO2
41 DIO1
40 DIO0
39 PC 5V
38 n/c
37 n/c
36 n/c
35 n/c
34 AGND
33 n/c
32 AGND
31 n/c
30 AGND
29 n/c
28 AGND
27 n/c
26 AGND
25 n/c
24 AGND
23 n/c
22 AGND
21 n/c
20 AGND
19 n/c
18 AGND
17 AGND7
16 VCH7
15 AGND6
14 VCH6
13 AGND5
12 VCH5
11 AGND4
10 VCH4
9 AGND3
8 VCH3
7 AGND2
6 VCH2
5 AGND1
4 VCH1
3 AGND0
2 VCH0
1 AGND
