Section 3 Disassembly - Kenwood DPX-U5130 Service Manual

3.1 Main body

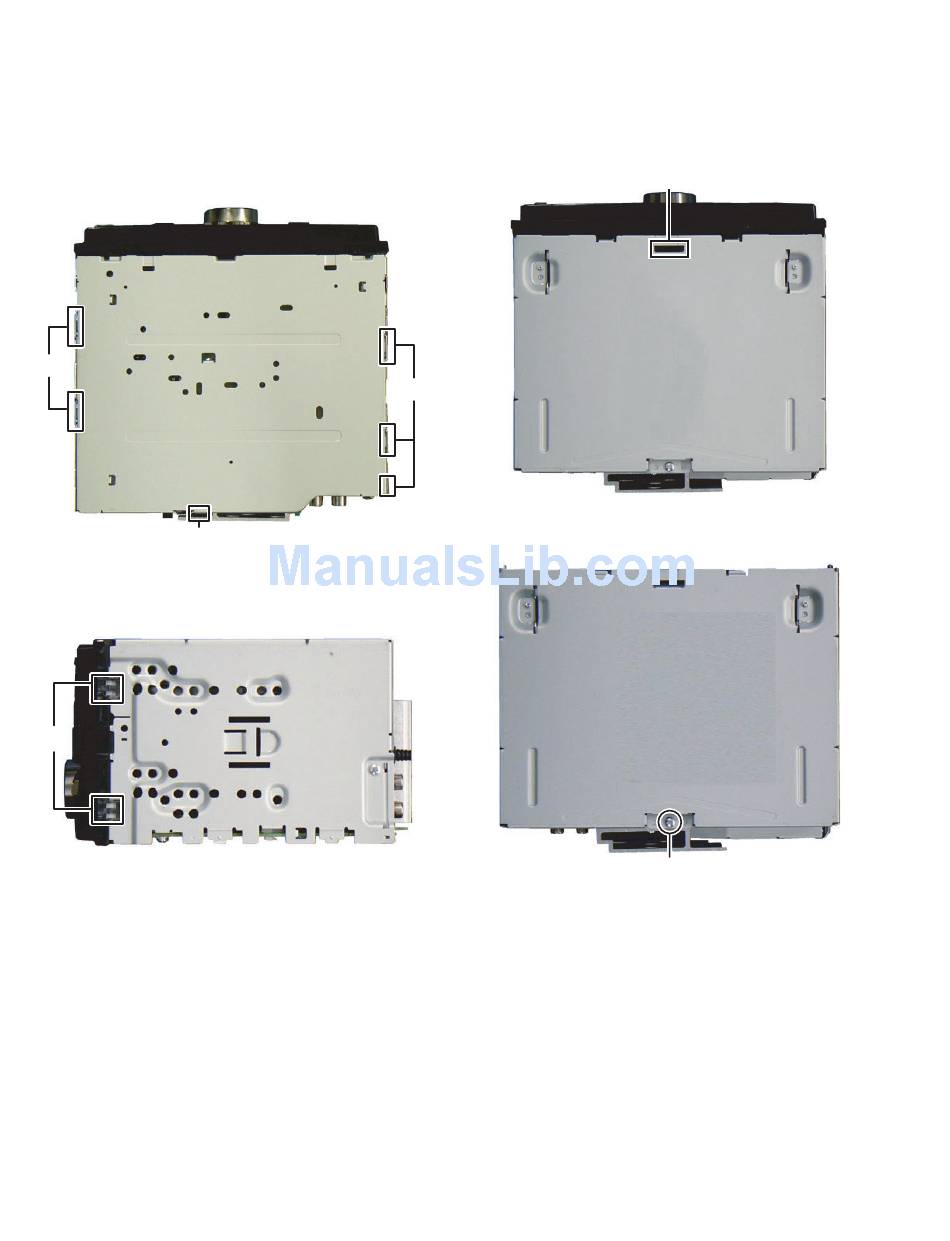

3.1.1 Removing the Bottom chassis (See Fig.1)
(1) Disengage the 6 hooks a engaging the Bottom chassis.
(2) Slide the Bottom chassis backward to remove it.
a
a
3.1.2 Removing the Front chassis (See Fig.2, 3)
(1) Disengage the 4 hooks b engaging both sides of the Front
chassis.(See Fig.2)
b
SECTION 3
DISASSEMBLY
Fig.1
Fig.2
(No.WA063<Rev.003>)10/31
(2) Disengage the 1 hook c engaging the Front chassis.(See
Fig.3)
a
3.1.3 Removing the Electric unit (See Fig.4, 5, 6, 7 and 8)
(1) Remove the 1 screw A attaching the Top chassis. (See Fig.4)
c
Fig.3
A
Fig.4
