Kenwood DPX-U5130 Service Manual page 9

Ref. No. Application / Function
Q604 Variable LED drive
Q605 Variable LED drive
Q606 Variable LED drive
Q608 Variable LED drive
Q609 Variable LED drive
Q610 Variable LED drive
Q611 Variable LED drive
Q612 Variable LED drive

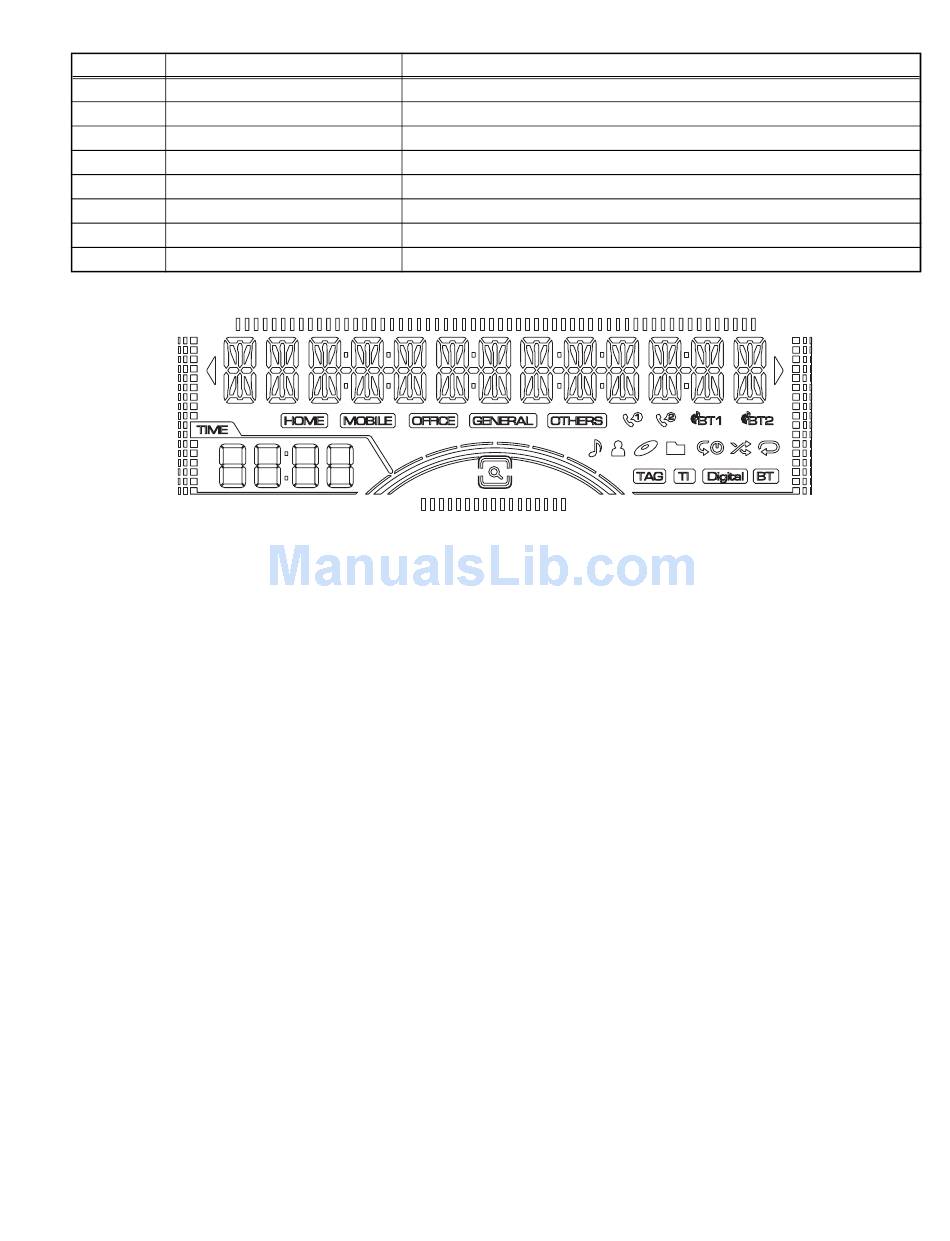

2.2 LCD DISPLAY INTERNAL SCHEMATIC DIAGRAM (X16-: ED1)
Operation / Condition / Compatibility
BLUE of D609,610,611 are turned on when Q604 turn on.
GREEN of D609,610,611 are turned on when Q605 turn on.
RED of D609,610,611 are turned on when Q606 turn on.
GREEN of D608 is turned on when Q608 turn on.
RED of D608 is turned on when Q609 turn on.
BLUE of D615 is turned on when Q610 turn on.
GREEN of D615 is turned on when Q611 turn on.
RED of D615 is turned on when Q612 turn on.
(No.WA063<Rev.003>)9/31
