4.1

TEST MODE

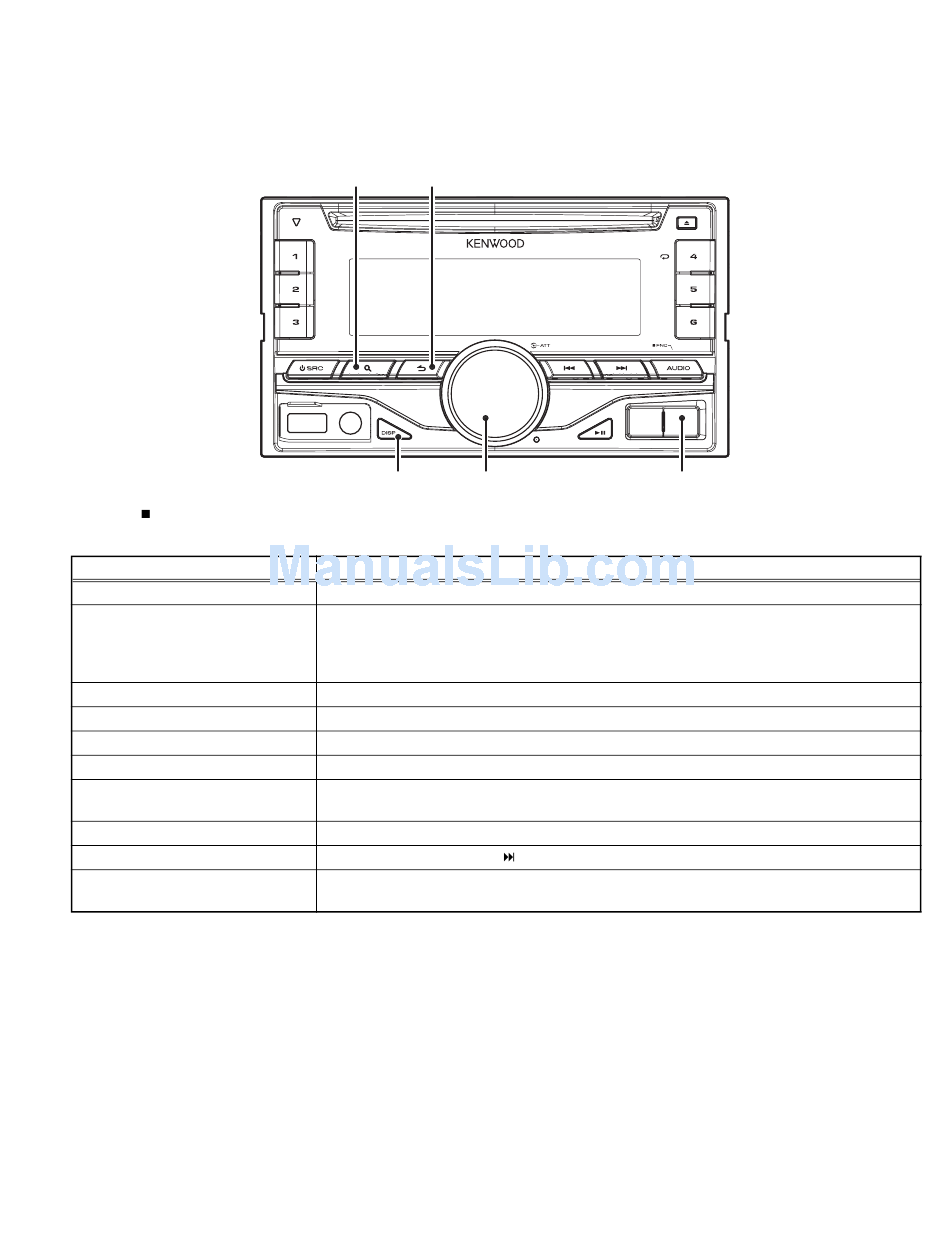

4.1.1 Panel
A symbol " " in the key column indicates that the key should be pressed and hold for 1 second or longer.
4.1.2 How to enter each Test Mode
Test Mode name
Production Test Mode
Service Test Mode
Service Information Clear Mode
DC Error Information Mode
Forced update mode
Version display mode
FM/AM channel space
mode
Forced Power ON mode
Security Code Force Delete mode
Diagnostic Data Mode
*Transition to Test Mode shall be available during DC Error detection.
However, operation by the remote controller cannot be done since the transition to each test mode by using a remote controller can
be done only from a normal display.
Also, since "PROTECT" is displayed forcibly upon detection of 4 times or more condenser leaks, transition to each test mode is not
available.
*Transition to DC Error Information Mode shall be available during DC Error detection.
4.1.3 How to release each Test Mode
• Reset
• Momentary voltage drop
• ACC OFF
• POWER OFF
• Optional key operation (version display only)
• Short ACC OFF/ON
ADJUSTMENT
SEARCH RETURN
DISP
Press and hold [1] key and [3] key and reset.
In the STANDBY source, while pressing and holding [SEARCH] key, press [AUDIO] key for 7
seconds.
(Starting to press [SEARCH] key and [AUDIO] key at the same time can not be entered into
the mode)
Press and hold [2] key and [5] key and reset.
Press and hold [3] key and [6] key and reset.
Press and hold [1] key and [SEARCH] key and reset.
In the STANDBY source, while pressing and holding [RETURN] key, press [DISP] key.
switching While Power OFF, pressing and holding [1] key and [5] key to Power ON.
Press and hold [ENTER] key and [4] key and reset.
While pressing and holding [ ] key, press [SEARCH] key for 3 seconds.
In the SXM source, press and hold [RETURN] key and [ACCENT] key for 7 seconds.
(It is necessary to connect tuner box sold separately)
(No.WA063<Rev.003>)15/31
SECTION 4
VOL

Operation

ACCENT
