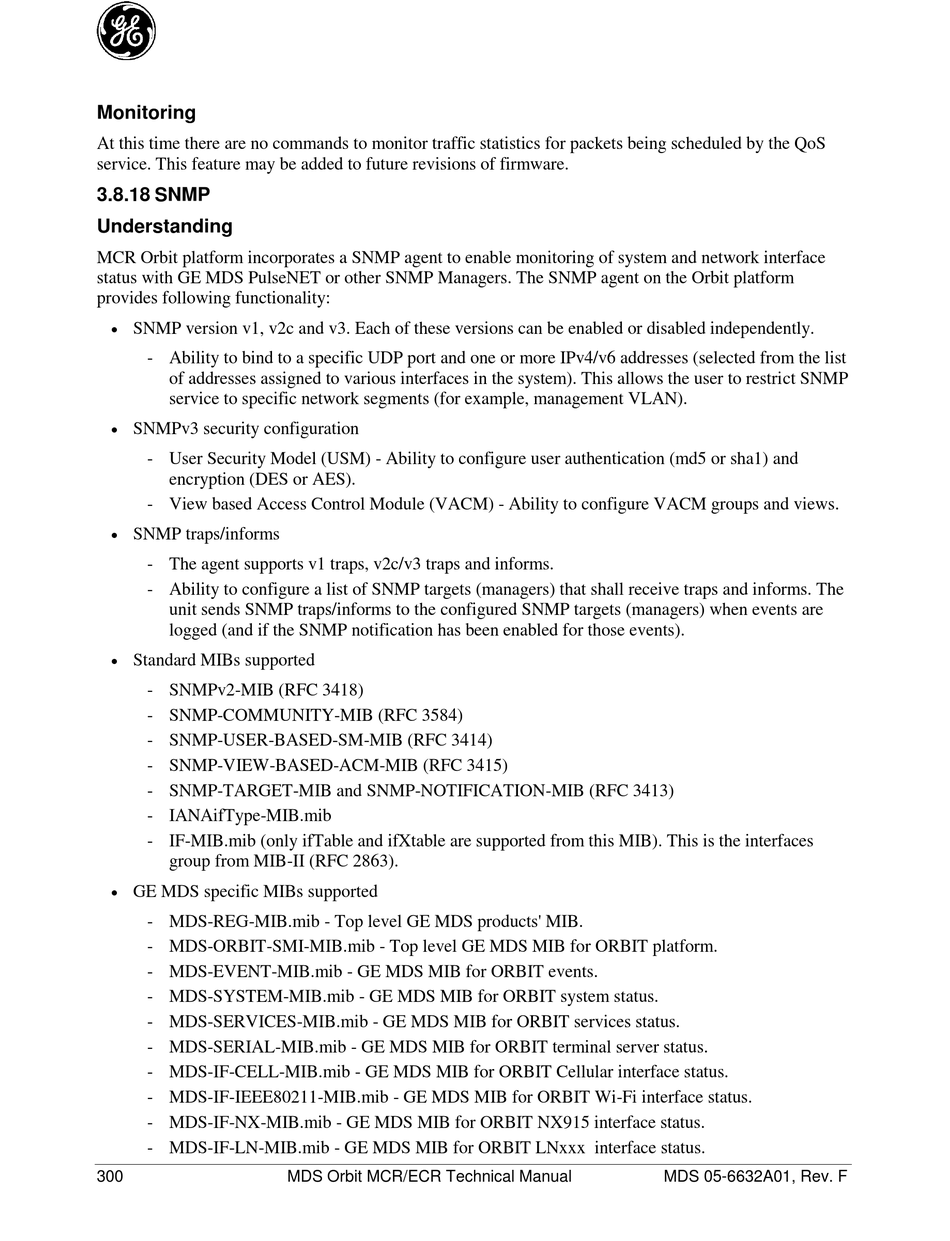

Monitoring
At this time there are no commands to monitor traffic statistics for packets being scheduled by the QoS
service. This feature may be added to future revisions of firmware.
3.8.18

SNMP

Understanding
MCR Orbit platform incorporates a SNMP agent to enable monitoring of system and network interface
status with GE MDS PulseNET or other SNMP Managers. The SNMP agent on the Orbit platform
provides following functionality:

SNMP version v1, v2c and v3. Each of these versions can be enabled or disabled independently.
- Ability to bind to a specific UDP port and one or more IPv4/v6 addresses (selected from the list
of addresses assigned to various interfaces in the system). This allows the user to restrict SNMP
service to specific network segments (for example, management VLAN).

SNMPv3 security configuration
- User Security Model (USM) - Ability to configure user authentication (md5 or sha1) and
encryption (DES or AES).
- View based Access Control Module (VACM) - Ability to configure VACM groups and views.

SNMP traps/informs
- The agent supports v1 traps, v2c/v3 traps and informs.
- Ability to configure a list of SNMP targets (managers) that shall receive traps and informs. The
unit sends SNMP traps/informs to the configured SNMP targets (managers) when events are
logged (and if the SNMP notification has been enabled for those events).

Standard MIBs supported
- SNMPv2-MIB (RFC 3418)
- SNMP-COMMUNITY-MIB (RFC 3584)
- SNMP-USER-BASED-SM-MIB (RFC 3414)
- SNMP-VIEW-BASED-ACM-MIB (RFC 3415)
- SNMP-TARGET-MIB and SNMP-NOTIFICATION-MIB (RFC 3413)
- IANAifType-MIB.mib
- IF-MIB.mib (only ifTable and ifXtable are supported from this MIB). This is the interfaces
group from MIB-II (RFC 2863).

GE MDS specific MIBs supported
- MDS-REG-MIB.mib - Top level GE MDS products' MIB.
- MDS-ORBIT-SMI-MIB.mib - Top level GE MDS MIB for ORBIT platform.
- MDS-EVENT-MIB.mib - GE MDS MIB for ORBIT events.
- MDS-SYSTEM-MIB.mib - GE MDS MIB for ORBIT system status.
- MDS-SERVICES-MIB.mib - GE MDS MIB for ORBIT services status.
- MDS-SERIAL-MIB.mib - GE MDS MIB for ORBIT terminal server status.
- MDS-IF-CELL-MIB.mib - GE MDS MIB for ORBIT Cellular interface status.
- MDS-IF-IEEE80211-MIB.mib - GE MDS MIB for ORBIT Wi-Fi interface status.
- MDS-IF-NX-MIB.mib - GE MDS MIB for ORBIT NX915 interface status.
- MDS-IF-LN-MIB.mib - GE MDS MIB for ORBIT LNxxx interface status.
