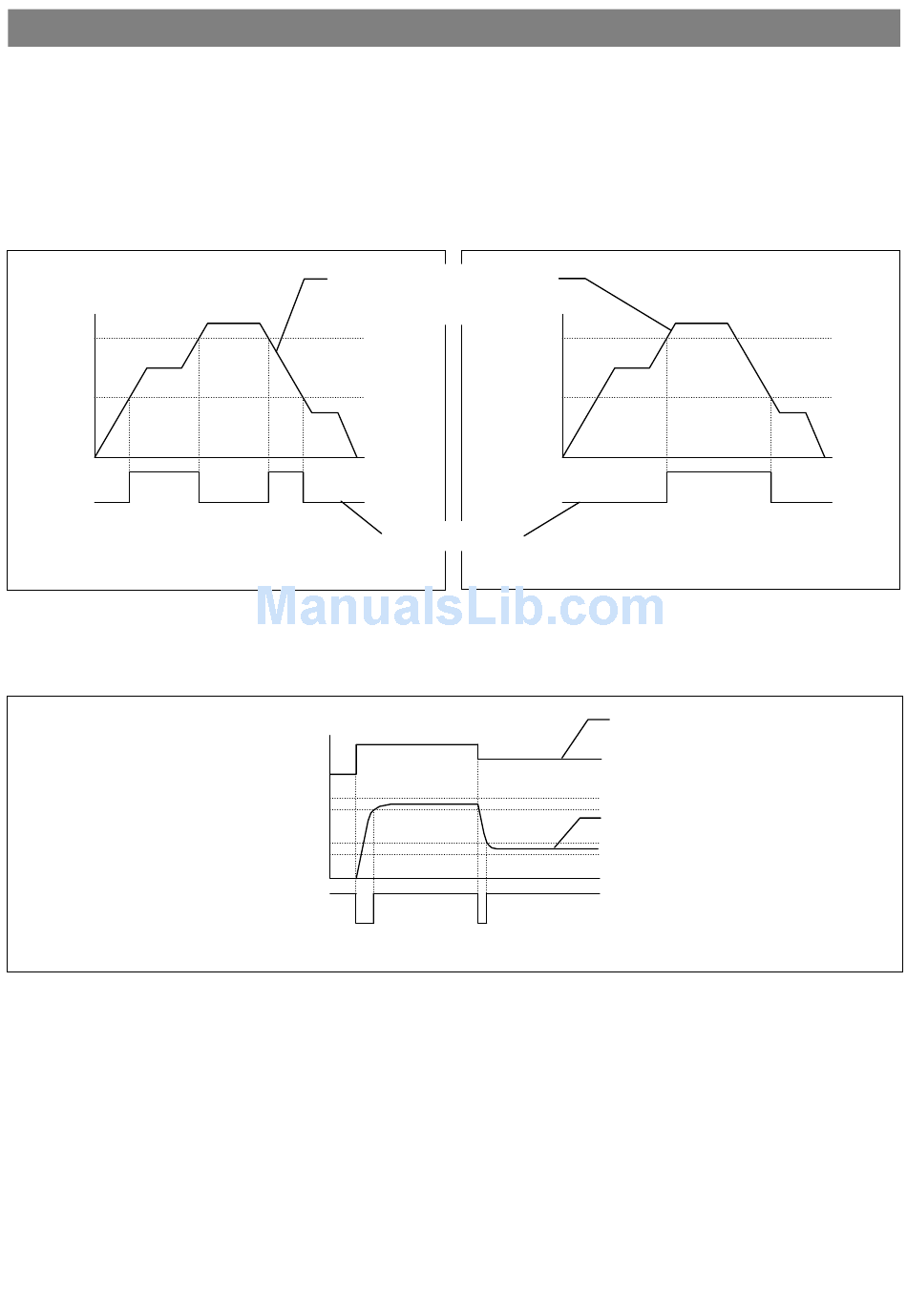

Mode of switch output

The following operation types are available by setting P_1 and P_2.
Note). This function is available for monitor output: switch output type
(ITV※0※※-※2 and ITV※0※※-※3).
■ P_1＜P_2 ：
Window comparator mode
P_2
P_1
ON
OFF
■ P_1＝P_2＝0 ： Out of range mode
（The switch output turns on when set pressure is achieved.）
Switch output
Output pressure
E/P regulator
Switch output
ON
OFF
―10―
■P_1≧P_2 ：
Hysteresis mode
of
P_1
P_2
ON
OFF
Input signal
Output pressure of
E/P regulator
