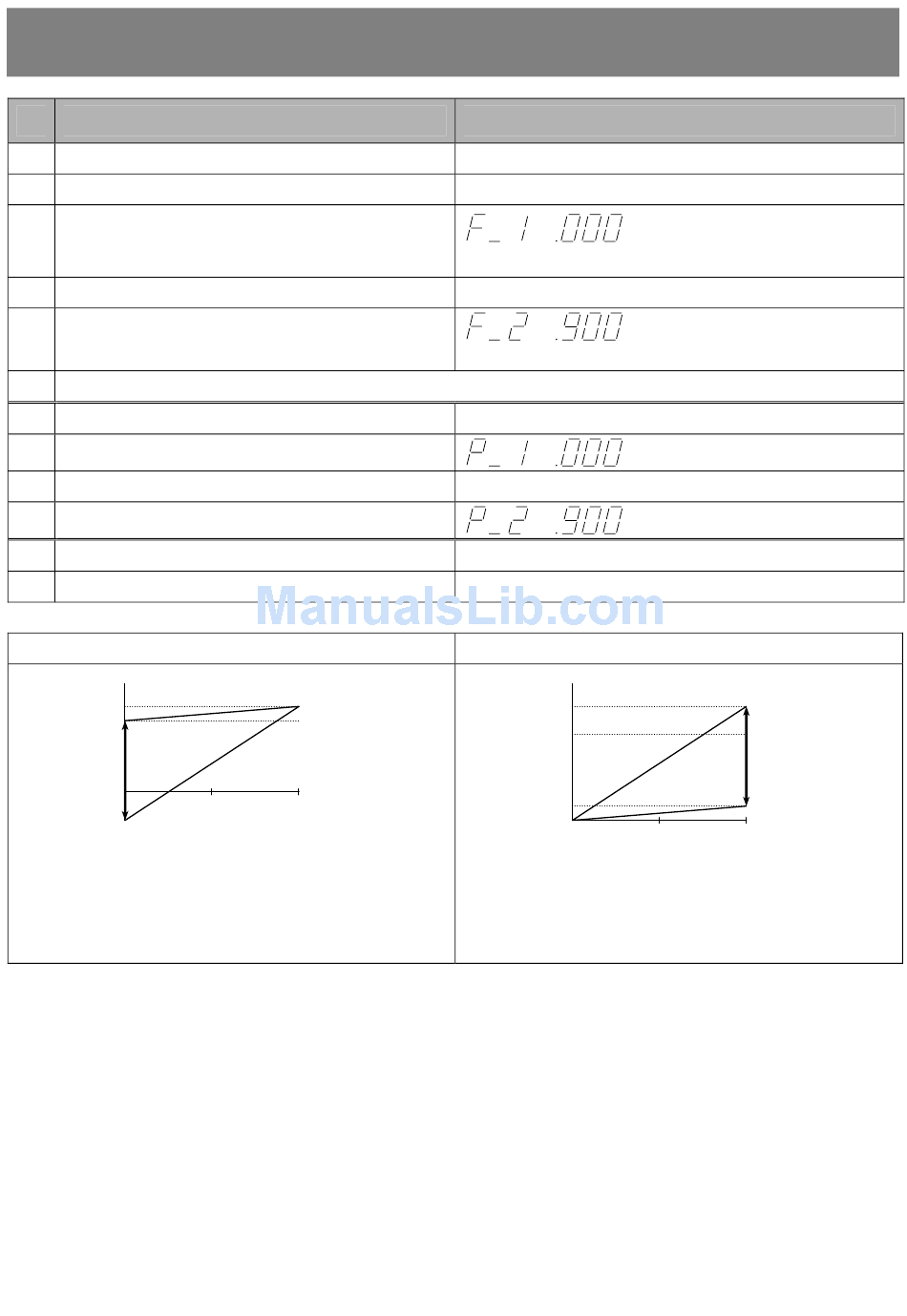

Setting Of Min. Pressure, Max. Pressure And Switch Output - SMC Networks ITV1000 series Operation Manual

Setting of min. pressure, max. pressure and switch output

No Key operation
①
Unlock keys (refer to P8)
②
Press S-key
Set the minimum pressure by using the △
③
and ▽ keys.
④
Press S-key
Set the maximum pressure by using the △
⑤
and ▽ keys.
⑥
Go to no. ⑪ for monitor output: analogue output (voltage and current) type.
⑦
Press S-key
⑧
Set the P_1 by using the △ and ▽ keys.
⑨
Press S-key
⑩
Set the P_2 by using the △ and ▽ keys.
⑪
Press S-key
⑫
Lock keys (refer to P8)
Minimum pressure (F_1) adjusting range Maximum pressure (F_2) adjusting range
100%
90%
0%
-20%
4
0
0
0
(Note 1): F_1 is adjustable in a range from -20% to 90% of the rated value.
(DEFAULT VALUE: 0%)
(Note 2): The pressure of less than 0% is not output, even if F_1 is adjusted
to less than 0%.
(Note 3): F_2 is adjustable in a range from 10 to 120% of the rated value.
(DEFAULT VALUE: 100%)
(Note 4): Do not input the signal as like output the pressure of more than 100%.
Please use in a range of rating.
(Note 5): The difference between F_1 and F_2 is adjustable in a range of 10% of
the rated value.
(Note 6): The adjustment like making the relation of F_1>F_2 is not available.
12 20mA
20mA
10
2.5 5V
5 10V
[current/voltage input type only]
⇔
*Adjusting range: Refer to note 1 to 6
⇔
*Adjusting range: Refer to note 1 to 6
⇔
⇔
Return to (current) pressure display.
120%
100%
10%
0%
4
0
0
0
―9―
LED Display
(displayed alternately)
(displayed alternately)
(displayed alternately)
(displayed alternately)
12 20mA
20mA
10
2.5 5V
5 10V
