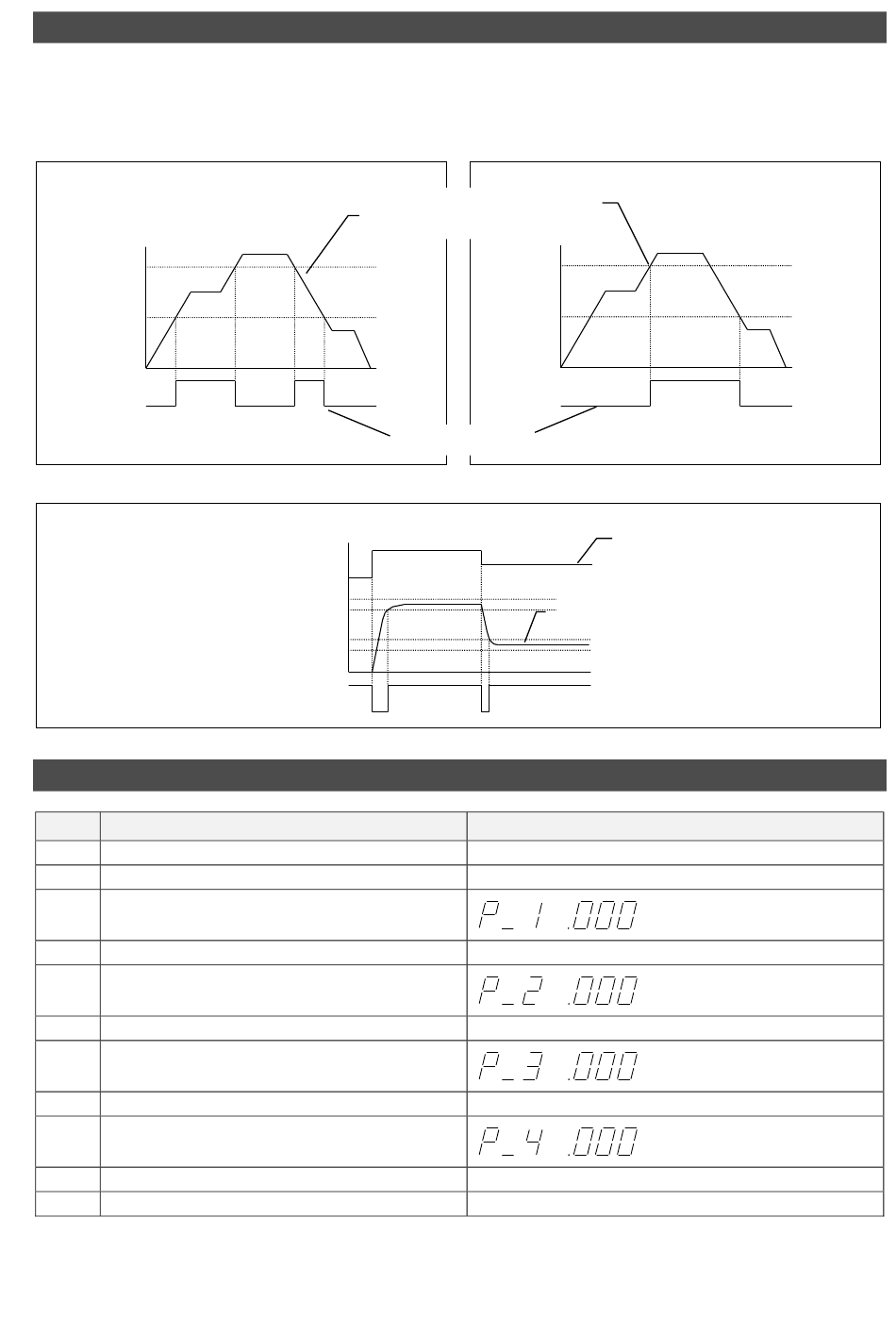

Output mode of switch output
The following three types of operations are possible by setting P_1 and P_2.
This function is available only for monitor output : switch output type (ITV****-*2, ITV****-*3).
■P_1<P_2:
Window comparator mode
P_2
P_1
ON
OFF
■P_1=P_2=0: Out of range mode (The switch output turns on when set pressure is achieved.)
Switch output
Setting of preset pressure [Preset input type only]
No
Unlock keys (refer to P8).
(1)
Press S-key
(2)
Set the "P_1" by using the △ and ▽
(3)
keys.
Press S-key
(4)
Set the "P_2" by using the △ and ▽
(5)
keys.
Press S-key
(6)
Set the "P_3" by using the △ and ▽
(7)
keys.
(8)
Press S-key
Set the "P_4" by using the △ and ▽
(9)
keys.
(10)
Press S-key
(11)
Lock keys (refer to P8).
(Note1) P_1 to P_4 can be set in the range of 0% to 100%.
(Note2) Considering safety, we recommend setting 0 MPa as one of the preset pressures.
Output pressure of
ON
OFF
Key operation
■P_1≧P_2:
Hysteresis mode
E/P regulator
P_1
P_2
ON
OFF
Switch output
Output pressure of E/P regulator
Return to (current) pressure display.
- 10 -
Input signal
LED Display
(displayed alternately)
(displayed alternately)
(displayed alternately)
(displayed alternately)
