7.2.3 USB interface

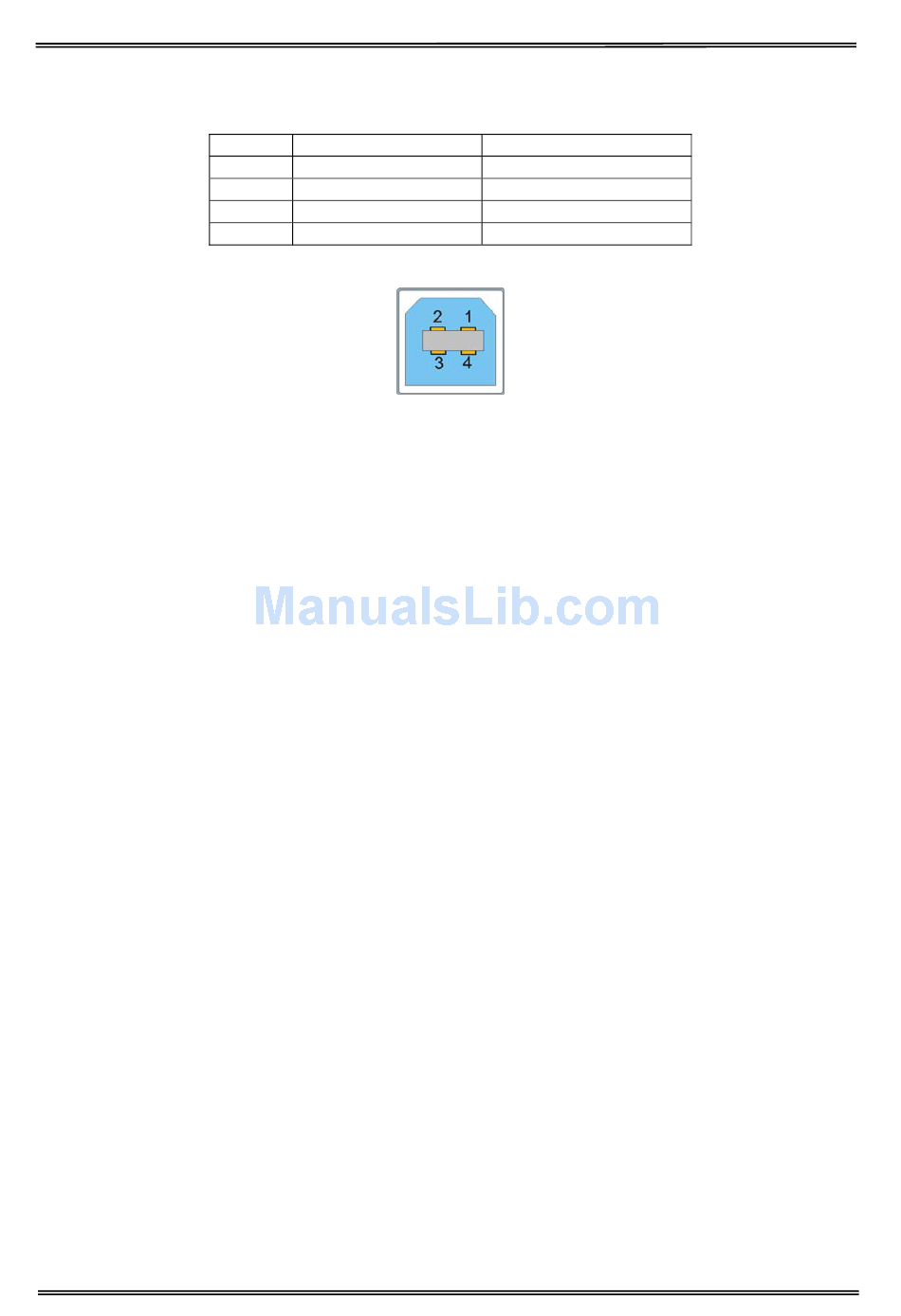

USB interface pin assignment
USB interface connector diagram
Note:
1. Use a standard USB interface cable to connect the printer and the computer.
2. Normally PR2-Olivetti emulation does not support USB printing mode. Please use serial interface to
print.
Pin Signal name
1 VBUS
2 D-
3 D+
4 S.GND
Description
+5V power supply
data
data
ground
