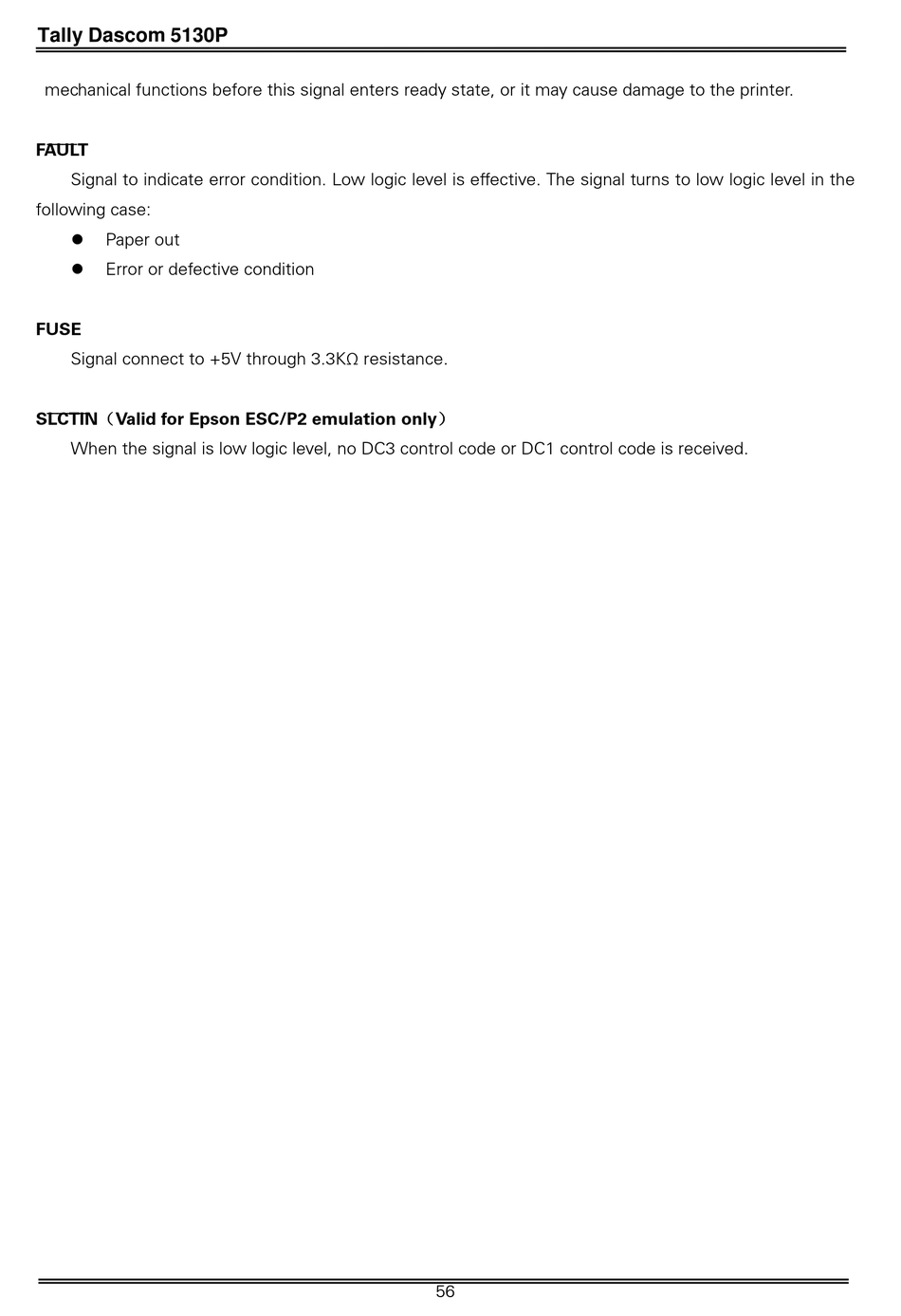

Tally Dascom 5130P
mechanical functions before this signal enters ready state, or it may cause damage to the printer.
FAULT ¯¯¯¯¯¯
Signal to indicate error condition. Low logic level is effective. The signal turns to low logic level in the
following case:
Paper out
Error or defective condition
FUSE
Signal connect to +5V through 3.3KΩ resistance.
¯¯¯¯¯¯¯¯ （Valid for Epson ESC/P2 emulation only）
SLCTIN
When the signal is low logic level, no DC3 control code or DC1 control code is received.
56
