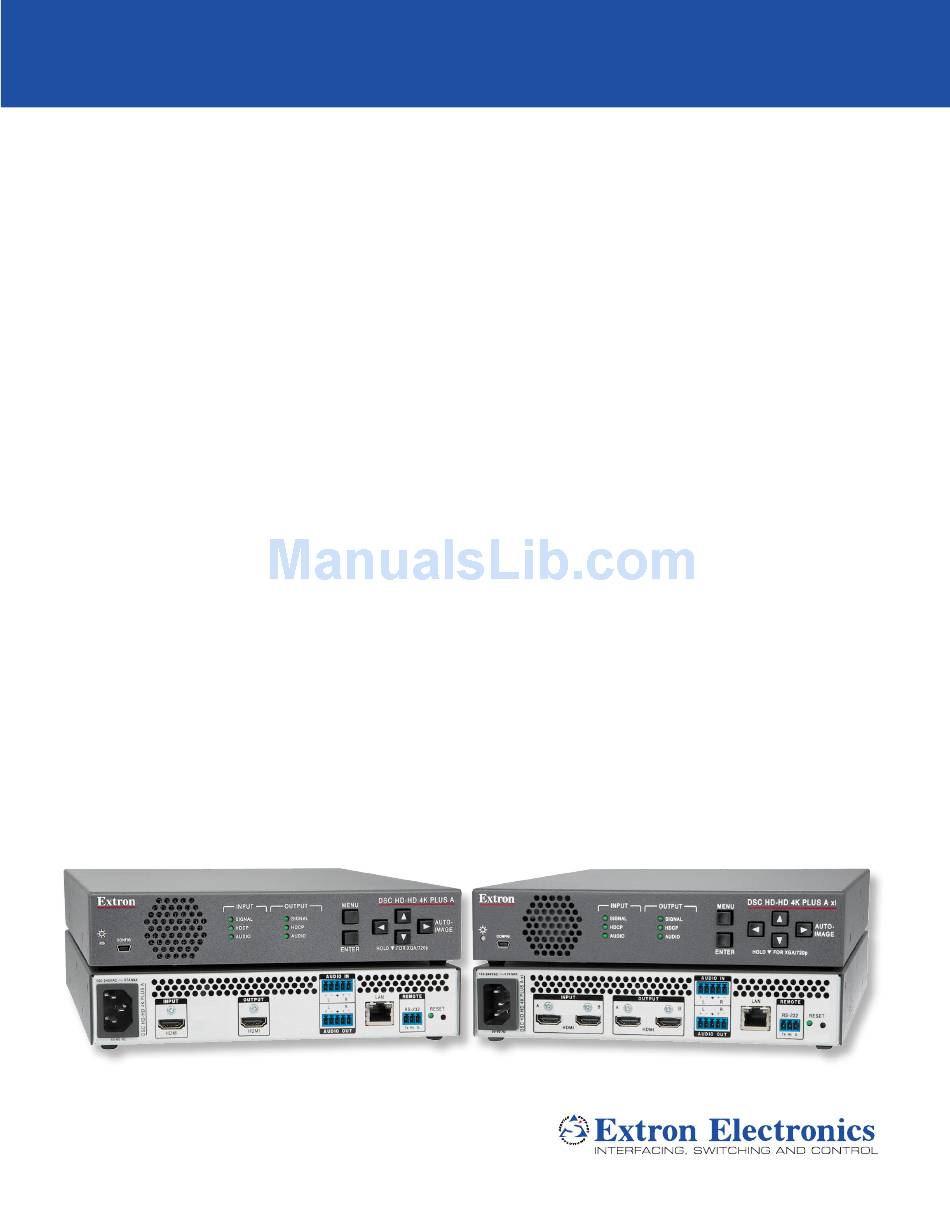

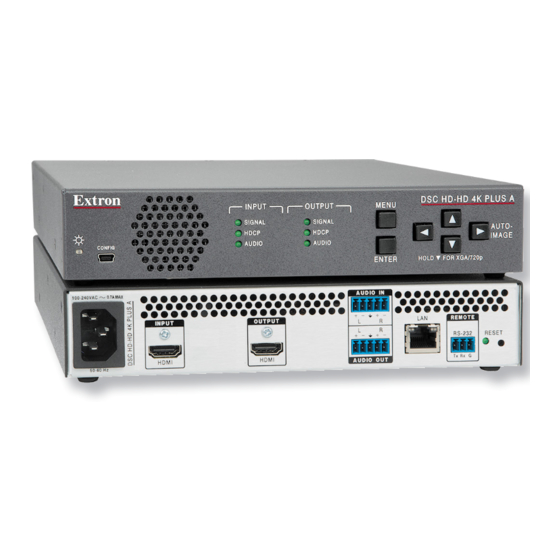

- Page 1 User Guide Scalers DSC HD-HD 4K Plus A Series HDMI to HDMI 4K Scalers 68-2803-01 Rev. A 06 16...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano WARNING: This symbol, , when used on the product, is intended to AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad alert the user of the presence of uninsulated dangerous voltage within avvertire l’utente della presenza di tensione non isolata pericolosa the product’s enclosure that may present a risk of electric shock. - Page 3 より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright © 2016 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks®, registered service marks( ), and trademarks( ) are the property of RGB Systems, Inc.
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier.
-
Page 7: Table Of Contents
Auto-Image ............37 Changing the Output Resolution and Refresh About This Guide ..........1 Rate ..............38 About the DSC HD-HD 4K Plus A Series ... 1 Custom Rates ..........38 Features ............. 2 Resetting the Output Rate ......38 Application Diagrams .......... - Page 8 DSC HD-HD 4K Plus A Series • Contents viii...
-
Page 9: Introduction
Digital Scaling Converters and provides instructions for experienced installers to install, configure, and operate them. In this guide, the terms “scaler,” “DSC,” and “DSC HD-HD 4K Plus A Series” are used interchangeably to refer to the DSC HD-HD 4K Plus A and DSC HD-HD 4K Plus A xi. -
Page 10: Features
HDCP-compliant device. Protected material is not passed in non-HDCP mode. Supported HDMI specification features include data rates up to 18 Gbps, • Deep Color, and HD lossless audio formats. DSC HD-HD 4K Plus A Series • Introduction... - Page 11 • Automatic 3:2 and 2:2 pulldown detection — Film mode processing techniques help maximize image quality for NTSC, PAL, and 1080i sources that originated from film. DSC HD-HD 4K Plus A Series • Introduction...
- Page 12 1U, half rack width metal enclosure. LockIt HDMI cable lacing brackets provided. • • Internal universal power supply — The 100-240 VAC, 50-60 Hz, international power supply provides worldwide power compatibility with high demonstrated reliability. DSC HD-HD 4K Plus A Series • Introduction...
-
Page 13: Application Diagrams
50-60 Hz Extron DSC HD-HD 4K Plus A xi 1920×2160 @ 60 Hz 1920×2160 @ 60 Hz HDMI HDMI Audio Workstation PC Figure 2. DSC HD-HD 4K Plus A xi Application Example DSC HD-HD 4K Plus A Series • Introduction... -
Page 14: Installation
Installation This section provides a description of the DSC HD-HD 4K Plus A Series rear panel connectors and instructions for cabling. Topics include: Rear Panel Features • • Connecting for 4K Processing • Securing the HDMI Connector Using the LockIt Bracket Connecting for Remote Control •... - Page 15 — Connect one or two cables from an HDMI source to one or both of • these female HDMI connectors. Secure the HDMI output cable to the HDMI connector using the LockIt bracket (see Securing the HDMI Connector Using the LockIt Bracket on page 14). DSC HD-HD 4K Plus A Series • Installation...
- Page 16 For unbalanced audio, connect the sleeves to the ground contact. Do not connect them to negative (–) contacts. • Pour l’audio asymétrique, connectez les manchons au contact au sol. Ne PAS connecter les manchons aux contacts négatifs (–). DSC HD-HD 4K Plus A Series • Installation...
- Page 17 To initiate the different reset levels, use a pointed object such as a small Philips screwdriver or a stylus to press and hold the button while the DSC is running or while it is being powered up (see Resetting). DSC HD-HD 4K Plus A Series • Installation...
-
Page 18: Connecting For 4K Processing
à vis captives et pourraient sortir. Connecting for 4K Processing Input and output connections to the DSC HD-HD 4K Plus A Series can vary depending on the capability of your source or sink to process signals at 4K resolution on a single cable. -
Page 19: Single Input To Dual Outputs
NOTE: If the 4K source or the 4K sink device supports 4K signals using columns, figures 10 and 11 connect the inputs and outputs as shown in on the next page to process 4K video. DSC HD-HD 4K Plus A Series • Installation... -
Page 20: Two Input Columns To Single Output
SM 3 Speakers Blu-ray Player Projector 3840 x 2160 @ 60Hz with Embedded 1920 x 2160 @ 60Hz Audio (left) Figure 11. Single HDMI Input to Left and Right Columns of 4K Video Output DSC HD-HD 4K Plus A Series • Installation... -
Page 21: Two Inputs To Two Side-By-Side Outputs
Blu-ray Player SOUTH WEST EAST NORTH 3840 x 2160 @ 60 Hz 1080p @ 60 Hz 1080 @ 60 H Display Figure 12. Two Inputs to Side-by-Side Display on One or Two Outputs DSC HD-HD 4K Plus A Series • Installation... -
Page 22: Securing The Hdmi Connector Using The Lockit Cable Lacing Bracket
Connecting for Remote Control The DSC HD-HD 4K Plus A Series scalers have three control ports through which they can be connected to a computer or control system for configuration and control: the rear panel Remote RS-232 and LAN ports and the front panel USB Config port. -
Page 23: Connecting To The Usb Config Port
OUTPUT AUTO- SIGNAL SIGNAL IMAGE CONFIG HDCP HDCP Computer AUDIO AUDIO ENTER HOLD FOR XGA/720p DSC HD-HD 4K Plus A Front Panel Figure 14. Connecting to the Front Panel USB Config Port DSC HD-HD 4K Plus A Series • Installation... - Page 24 Update at this time (for example, if the driver is already installed). NOTE: This wizard appears only the first time the DSC is connected to each USB port. It does not open again until you connect the DSC to a different USB port. DSC HD-HD 4K Plus A Series • Installation...
- Page 25 Windows 7 or later: When the USB software has been located and downloaded, the message appears on the screen (a Ready to use Driver Software Installation pop-up message appears above the Windows taskbar if the screen is closed). Click to close the status window. Close DSC HD-HD 4K Plus A Series • Installation...
-
Page 26: Operation
USB configuration port — Connect a computer to this USB mini-B port for device configuration and firmware upgrades. DSC HD-HD 4K Plus A Series • Operation... -
Page 27: On-Screen Display Menu
IP address and firmware version number are in the upper-right corner. • • Current input resolution and refresh rate are in the lower-left corner. • Current output resolution and refresh rate are in the lower-right corner. DSC HD-HD 4K Plus A Series • Operation... -
Page 28: Using The Front Panel Buttons With The Osd Menu
When the OSD is closed, pressing this button performs an Auto-Image (see Auto-Image on page 37). Press the ) button to exit a currently selected submenu or • Left arrow submenu item. DSC HD-HD 4K Plus A Series • Operation... -
Page 29: Using The Osd Menu
(see Adjusting the picture controls on page 24 to adjust settings on the submenu). Picture Controls Press the arrow buttons to adjust the value as desired. DSC HD-HD 4K Plus A Series • Operation... -
Page 30: Quick Setup Submenu
Output Rate — Select this item to set the scaler output resolution and refresh • rate. The DSC HD-HD 4K Plus A Series scalers have 80 factory installed output resolutions and rates and three custom user defined blocks for new resolutions (see Output Resolutions and Refresh Rates Table on page 29). -
Page 31: Picture Controls Submenu
Picture Controls Submenu This submenu lets you adjust the horizontal and vertical positions, height and width, brightness, contrast, and sharpness ( ) of the image on the display. Detail Figure 22. Picture Controls Submenu DSC HD-HD 4K Plus A Series • Operation... -
Page 32: Adjusting The Picture Controls
buttons, as indicated by the yellow up To adjust the vertical position, press the and down arrows next to the setting. When finished, press to return to the menu. Enter DSC HD-HD 4K Plus A Series • Operation... -
Page 33: Input Submenu
In a video system that should not transmit HDCP encrypted data, such as broadcast or streaming environments, HDCP authorization should be disabled at the input to ensure that the output remains unencrypted. DSC HD-HD 4K Plus A Series • Operation... - Page 34 1920x1200 480p 576p 720p 1080i 1080p 2K (2048x1080) 2048x1200 2048x1536 2560x1080 2560x1440 2560x1600 3840x2160 3840x2160 Column** 4096x2160 Column** Custom EDID 1 Custom EDID 2 Custom EDID 3 *Default EDID **xi model only DSC HD-HD 4K Plus A Series • Operation...
- Page 35 the current display EDID. Press . The display EDID is saved to the selected custom slot and assigned Enter to the connected inputs. DSC HD-HD 4K Plus A Series • Operation...
-
Page 36: Output Submenu
Output Rate — Select this item to specify the output resolution and refresh rate. • The DSC HD-HD 4K Plus A Series scalers have a range of resolutions from which to choose (see the Output Resolutions and Refresh Rates table for the available settings). - Page 37 Enter Press to return to the submenu. Input NOTE: If you do not confirm your resolution and rate selection within 15 seconds, the scaler returns to the previously selected resolution and rate. DSC HD-HD 4K Plus A Series • Operation...
- Page 38 • Output Format — This item lets you set the HDMI output format and control the output colorspace. To select the format: Select from the submenu and press Output Format Output Enter Press the buttons to select the format. ...
-
Page 39: Audio Submenu
Enter Press to return to the submenu. Output Audio Submenu This submenu allows you to configure the audio that is processed through the DSC. Figure 27. Audio Submenu DSC HD-HD 4K Plus A Series • Operation... - Page 40 Enter buttons to raise or lower the volume in increments of 1 dB. The range is -100 dB through . The default is 0 dB -10 dB DSC HD-HD 4K Plus A Series • Operation...
-
Page 41: Advanced Submenu
By default all test patterns include a single pixel wide crop pattern line. • The Audio Test pattern displays a crop pattern and also outputs pink noise at 48 kHz, 24 bit. • Test pattern selections persist through a power cycle. DSC HD-HD 4K Plus A Series • Operation... - Page 42 Auto Memory — Enables or disables Auto Memory. When Auto Memory is set to (default), the DSC stores the current input configuration and picture control values as an input preset (see Auto Memories on page 39 for more information). DSC HD-HD 4K Plus A Series • Operation...
-
Page 43: Communications Submenu
41. Communications Submenu This menu enables you to view the RS-232 remote port baud rate, port type, and the unit MAC address, and to edit the IP settings. Figure 30. Communications Screen DSC HD-HD 4K Plus A Series • Operation... - Page 44 You can also set the DHCP mode via SIS commands (see the DHCP mode commands on page 66), the PCS software, or the DSC HD-HD 4K Plus A series website. • IP Address — Lets you set the IP address for the unit. The default address is 192.168.254.254...
-
Page 45: Device Info Screen
The first press displays the message Press Auto again Confirm the OSD. The second press initiates the Auto-Image. OSD submenu — Select from the Picture Controls submenu (see • Auto-Image page 23). DSC HD-HD 4K Plus A Series • Operation... -
Page 46: Changing The Output Resolution And Refresh Rate
Press and hold the button until a message appears on the display indicating the new rate (approximately 5 seconds). On the front panel, the button is labeled NOTE: Hold for XGA/720p DSC HD-HD 4K Plus A Series • Operation... -
Page 47: Power Save Mode
A preset saves time by enabling you to apply a group of settings to the DSC at one time. The DSC HD-HD 4K Plus A Series scalers have two types of presets: Auto Memories and input presets. -
Page 48: Input Presets
Input Presets The DSC HD-HD 4K Plus A Series scalers have 128 memory slots in which you can save input presets. These presets allow a matrix switcher with multiple types of video inputs (such as an XTP) to be placed upstream from the DSC to expand the number of video sources. -
Page 49: Resetting
NOTE: Mode 5 reset clears all adjustments. To save these settings, use the PCS software program and select from the tab menu before you perform this reset (see the Backup DSC HD-HD 4K Plus A control program help file for more information). DSC HD-HD 4K Plus A Series • Operation... -
Page 50: Remote Configuration And Control
Configuration and Control This section describes the methods by which the DSC HD-HD 4K Plus A Series can be configured and controlled remotely: the Extron Simple Instruction Set (SIS) commands, the Web page, and the PCS software. It describes the available SIS commands and the controls on the Web page and also provides instructions for obtaining and accessing the PCS software. -
Page 51: Copyright Information
= Sink detected but no HDCP is present = Sink detected with HDCP • Psav9 The DSC sends this response when it enters power save mode due to the unit exceeding its maximum operating temperature. DSC HD-HD 4K Plus A Series • Remote Configuration and Control... -
Page 52: Error Responses
NOTE: Unless otherwise stated, upper- and lowercase text can be used interchangeably in the commands. ASCII to HEX Conversion Table Space • Figure 32. ASCII to Hexadecimal Character Conversion Table DSC HD-HD 4K Plus A Series • Remote Configuration and Control... -
Page 53: Symbol Definitions
Response is 5 digits with leading + or - and padded with zeros (example: -01075). X1& = Horizontal and vertical size (depends on resolution) Response is 5 digits, padded with zeros (example: 01075). DSC HD-HD 4K Plus A Series • Remote Configuration and Control... - Page 54 All factory EDIDs include a VIC (Video Identification Code) in the EDID CEA extension block, so if 4096 x 2160 EDID is desired, it is recommended that EDID is configured for 3840 x 2160 @ the desired vertical refresh rate. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 55 = Supports left-right column mode only on outputs A and B respectively (xi model only) NOTE: Custom output rates are supported only as buffered outputs and not column outputs (xi model). DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 56 DSC HD-HD 4K Plus A — DSC-HD-HD-4K-Plus-A-XX-XX-XX DSC HD-HD 4K Plus A xi — DSC-HD-HD-4K-Plus-A-xi-XX-XX-XX where are the last three character pairs of the MAC address of the unit. XX-XX-XX DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 57 8 or 9 and the output rate is changed to a rate other than 4K/UHD @ 50, 59.94, or 60 Hz, is automatically set to 0 (Auto), and an SIS response is broadcast. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 58 3 = Blue of RGB key (available only when = 2) 4 = Level key (available only when = 3) 5 = Alpha key = Key effect setting for logo 0 to 255 DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 59 = Greenwich Mean Time (GMT) offset value (-12:00 through 14:00) in hours and minutes (hh:mm) X8& A 2- to 6-digit code, such as “PST” for GMT - 8.00 UTC offset and location name, such as (UTC-08:00) Pacific Time for PST DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
-
Page 60: Command And Response Table For Sis Commands
= EDID emulations: 0 = Automatic: matches current output resolution (default), 201 = Custom EDID 1, 202 = Custom EDID 2, 203 = Custom EDID 3 For variables 10-87, see the SIS EDID table on page 46. DSC HD-HD 4K Plus A Series • Remote Configuration and Control... - Page 61 = HDCP Authorized status: 0 = HDCP Authorized off, 1 = HDCP Authorized on (the input reports as an HDCP authorized device to allow HDCP input signals). (Default is 1). DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
-
Page 62: Picture Adjustment
Picture adjustment: 0 through 127 (default is 64) Video mute: 0 = mute off (default), 1 = mute on (mute to black screen), 2 = mute on (mute all output sync and video) DSC HD-HD 4K Plus A Series • Remote Configuration and Control... - Page 63 Vctr I 1* NOTE: Picture adjustment: 0 to 127 (default is 64). Horizontal or vertical image position: Response is 5 digits with leading + or - and padded with zeros. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 64 Horizontal or vertical position: Response is 5 digits with leading + or - and padded with zeros. X1& Horizontal or vertical size. Response is 5 digits with leading + or - and padded with zeros. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
-
Page 65: Output Configuration
Output Resolutions and Refresh Rates table on page 47. Response is 2 digits padded with a zero. Input preset number: 1 – 128. Response is 3 digits padded with zeros. DSC HD-HD 4K Plus A Series • Remote Configuration and Control... - Page 66 0 = active input detected, timer not running 1 = No active input detected, timer running, output sync active 2 = No active input detected, timer expired, output sync disabled DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 67 Input lock (AFL) status: 0 = Input lock is disabled. 1 = Input lock is enabled but cannot lock to the input signal. 2 = Input lock is enabled. The output is locked to the input signal. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 68 5 = Alpha key Key effect level setting: 0 – 255 Key effect: 0 = disabled, 1 = Transparency, 2 = RGB key, 3 = Level key, 4 = Alpha key DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
-
Page 69: Audio Configuration
Audio input format: 0 = input is muted, 1 = analog, 2 = LPCM-2Ch (default), 3 = Multi-Ch, 4 = LPCM-2Ch Auto, 5 = Multi-Ch Auto. Audio output: 1 = local 5-pole captive screw analog audio output, 2 = embedded TMDS audio output. DSC HD-HD 4K Plus A Series • Remote Configuration and Control... -
Page 70: Advanced Configuration
Aspect ratio: 1 = Fill — The input rate fills the entire output raster (default), 2 = Follow — The input rate is displayed with its native aspect ratio. Audio output format: 1 = dual mono, 2 = stereo (default) DSC HD-HD 4K Plus A Series • Remote Configuration and Control... - Page 71 HDCP notification mode: 0 = Black screen (notification disabled and output muted), 1 = Green screen with OSD message (default), 2 = User HDCP logo. Unsolicited signal status response: 0 = Enabled, 1 = Disabled. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 72 0 = Unlock front panel (default), 1 = Lock front panel OSD menu status: 0 = Off (default), 1 = On (displayed). Unsolicited signal or HDCP status response: 0 = Enabled, 1 = Disabled. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 73 Video mute (blanking) status: 0 = Off (unmuted), 1 = On (muted to black screen), 2 = On (all output sync and video muted). MAC (hardware) address of the unit in the format 00-05-A6-xx-xx-xx. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 74 X7& Gateway address (nnn.nnn.nnn.nnn). Set IP address for your gateway. Leading zeros are optional. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 75 Example: 5:30 or 5.30 = +05:30. X8& = A 2- to 6-digit code, such as PST for GMT - 8.00. X8* = UTC offset and location name, such as (UTC-08:00) Pacific Time for PST. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 76 Number of seconds (stated in tens of seconds) before timeout on IP connections: Minimum = 1 (10 seconds), maximum = 65000 (650,000 seconds), default = 30 (300 seconds). Each step = 10 seconds. Response contains leading zeros. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 77 [2] = ‘filename2, date2, filesize2’; file [3] = ‘filename3, date3, filesize3’; file [n] = ‘filename n, date n, filesize n’; file [n+1] = ‘filename n+1, date n+1, filesize n+1’; DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 78 (161). Disable the SNMP port. Disable SNMP port A 161 PMAP Pmap A 00000 View SNMP port map View the current SNMP port {port#} A PMAP selection. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
-
Page 79: Product Configuration Software (Pcs) Program
PCS Software Link on the Download Page of the Extron Website On the page, click the button in the new features table (see Download figure , on the next page). DSC HD-HD 4K Plus A Series • Remote Configuration and Control... - Page 80 Download displays the name , then click it. PCS_vnxnxnxnn.exe On the next prompt window that opens, click to start the installation process. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
-
Page 81: Starting The Configuration Program
, on the next page). You may need to DSC HD-HD 4K Plus A xi scroll to locate it, depending on the number of devices listed. The button in Connect the bottom-right corner becomes available. DSC HD-HD 4K Plus A Series • Remote Configuration and Control... - Page 82 The TCP/IP Device Discovery login panel opens. TCP/IP Figure 36. TCP/IP Login Panel Enter the IP address where indicated (see figure 36, ), and the password, if any. DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
-
Page 83: Updating Firmware
You can update firmware using the PCS software (see the program help file) or the Web page (see DSC HD-HD 4K Plus A Series Web DSC HD-HD 4K Plus A Series Page, on the next page). DSC HD-HD 4K Plus A Series • Remote Configuration and Control... -
Page 84: Dsc Hd-Hd 4K Plus A Series Web Page
Example of a Network Password Dialog Box If an administrator or user password is required, enter in the admin user User field and the password in the field. Click Name Password Log In DSC HD-HD 4K Plus A Series • Remote Configuration and Control... -
Page 85: Web Page Components
), the input HDCP encryption status ( ) and the HDCP compliance of the attached sink ( Figure 40. HDMI Status Panel for a DSC HD-HD 4K Plus A DSC HD-HD 4K Plus A Series • Remote Configuration and Control... - Page 86 If you want to reset all IP settings to their factory defaults, click Reset to , then click on the confirmation prompt that opens. Default Reset Click to confirm the settings and close the dialog box. Apply DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 87 Web page) and double-click the firmware file name, or enter the path to the firmware file in the field (see figure 44). Firmware Figure 44. Firmware Update Dialog Box DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 88 Enter the new administrator password in the field (see Administrator Password figure 46, Repeat the password in the field ( Confirm Password Figure 46. Passwords Dialog Box with Administrator Password Entered DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
- Page 89 Today current date (see figure 48, DSC HD-HD 4K Plus A Series • Remote Configuration and Control...
-
Page 90: Special Characters
The following characters are not accepted: and {space}. + ~ , @ = ` [] {} < > ‘’ “” ; : | \ ? DSC HD-HD 4K Plus A Series • Remote Configuration and Control... -
Page 91: Mounting
Extron mounting kits and ordering information). The DSC HD-HD 4K Plus A Series scalers can be mounted by any of the methods listed below. Follow the instructions provided with the mounting kit. Rack mounting: Attach the DSC to a standard 19-inch rack shelf. The following •... - Page 92 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
