BK5200

Configuring the bus coupler

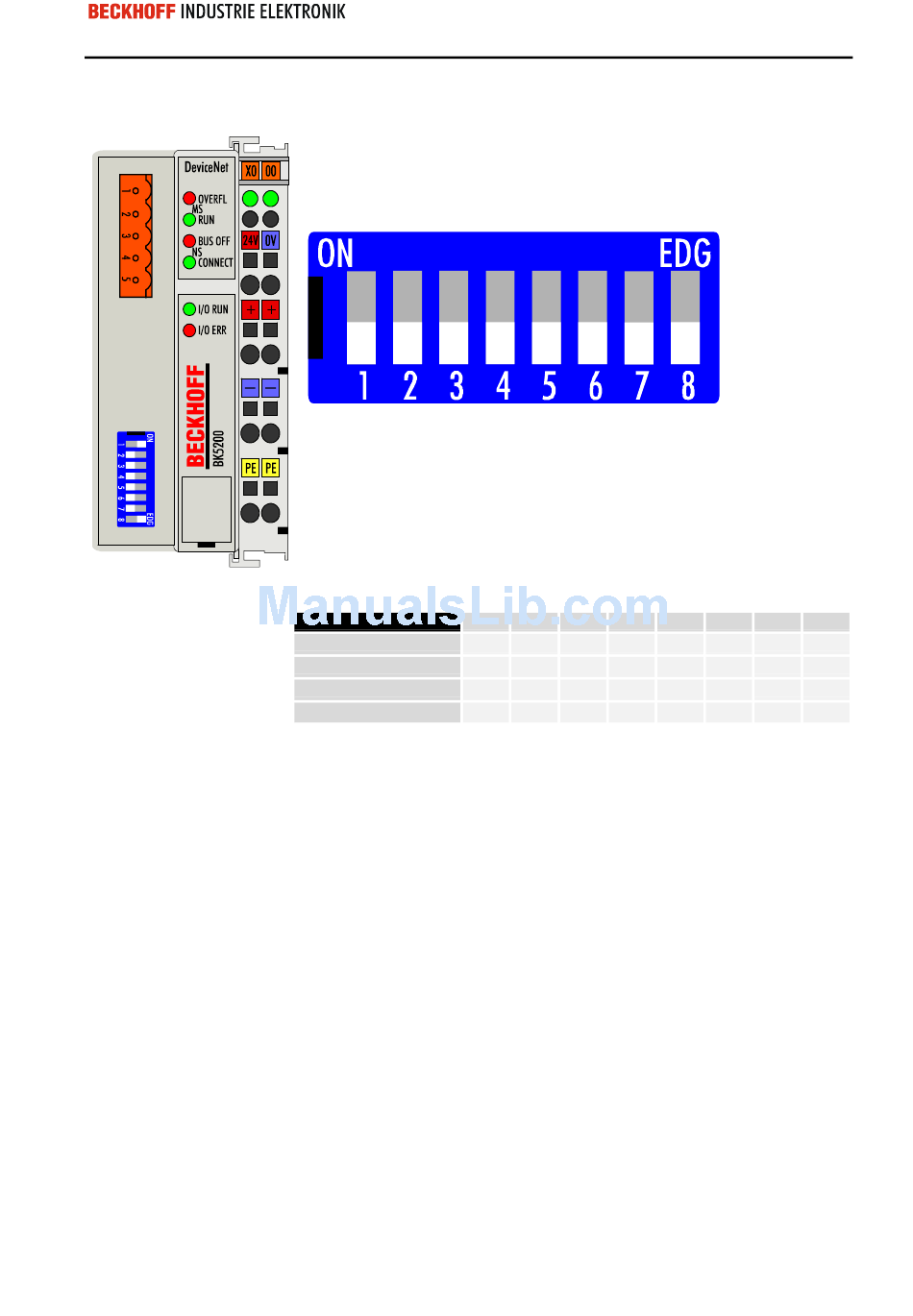

Set all the DIP switches to the desired configuration before you switch on
the bus coupler. Switches 7 and 8 are used to set the Baud rate, as shown
in the following table.
Setting Baud rates 1
125 kBd
250 kBd
500 kBd
(Default) 125 kBd
DIP switches 1 to 6 are used to set the MAC ID, where switch 1 is the lo-
west value bit, 20, and switch 6 the highest value bit, 25. In the setting
labeled ON, the bit is set.
You can select the MAC ID from the range 0 to 63.
When you have set all the DIP switches to the desired configuration you
can switch on the bus coupler. Any changes you make to the switches
while the system is in operation will have no effect until the next time it is
switched on.
BK52x0 DeviceNet
2 3 4 5
16
6 7 8
off off
on off
off on
on on
BK5200
