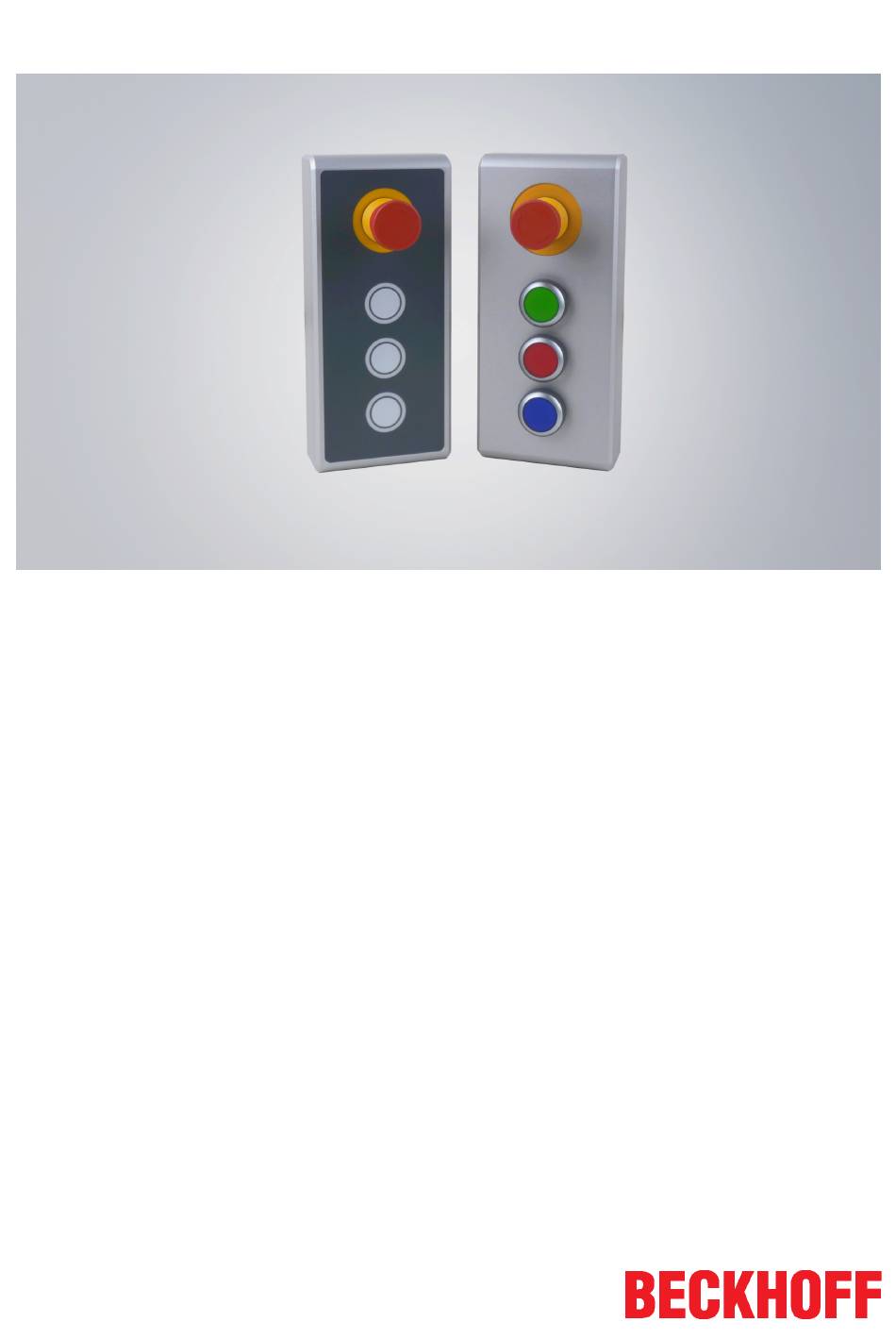

- Page 1 Installation and Operating instruction C9900-M900 and C9900-M998 IP65-EtherCAT Push-button extension Version: Date: 2019-04-26...
-
Page 3: Table Of Contents
Options ............................ 13 TwinCAT System Manager...................... 14 3.6.1 C9900-M900 ........................ 17 3.6.2 C9900-M998 ........................ 18 4 Mounting.............................. 19 Mounting the push-in strips - C9900-M900 .................. 19 Mounting labels C9900-M998...................... 19 Assembling the mounting plate ....................... 20 5 Dimensions .............................. 21 C9900-M900 ............................ 21 C9900-M998 ............................ 22 6 Technical data............................ 23 7 Support and Service.......................... 24... - Page 4 Table of contents Version: 1.0 C9900-M900 and C9900-M998...
-
Page 5: Foreword
EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 7: Transport And Unpacking
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. C9900-M900 and C9900-M998 Version: 1.0... -
Page 8: Product Description
The modules, which are implemented in IP65, are characterized by the fact that actions or status displays are visible directly on the module. Each light ring (C9900-M900) of the keys can thus be activated in the colors red, green, blue and white, as a result of which the operator can immediately read off feedback messages that are indicated, for example, by a change of color or by flashing. -
Page 9: Connections
Product description Connections C9900-M900 and C9900-M998 Version: 1.0... -
Page 10: Power Supply
Color Yellow orange white Blue 3.2.3 Emergency stop connection The emergency stop in the push-button extension is connected via the 5-pin connector. Pin assignment (emergency stop) Description NC 1 NC 1 NC 2 NC 2 Version: 1.0 C9900-M900 and C9900-M998... -
Page 11: Connection Cable
Power cable for Control Panel, drag-chain suitable, with 90° 4-pin round connector, 20 m, consisting of: - Power cable 2 x 0.75 mm² conforming to UL, cores color-coded - Side A: Round connector 4-pin socket, angled 90° - Side B: not used C9900-M900 and C9900-M998 Version: 1.0... -
Page 12: Power Cable With 4-Pin Round Connector
Sensor cable, M12 plug, straight, pin, 4-pin, A-coded open end 5 m ZK2000-6100-0100 Sensor cable, M12 plug, straight, pin, 4-pin, A-coded open end 10 m ZK2000-6100-0150 Sensor cable, M12 plug, straight, pin, 4-pin, A-coded open end 15 m Version: 1.0 C9900-M900 and C9900-M998... -
Page 13: Sensor Cable 90° (For Emergency Stop)
Stainless steel mounting plate 90° for EtherCAT button module C9900-M900 or C9900-M998. Offers the option of mounting an EtherCAT button module C9900-M900 or C9900-M998 at an angle of 90°. Four 6.5 mm through holes with a spacing of 40 x 150 mm for mounting. C9900-M900 and C9900-M998... -
Page 14: Twincat System Manager
1. Click at the top in the menu on File > New > Project and create a new TwinCAT XAE Project. 2. In the tree view on the left, click on I/O and then right-click on Device. Version: 1.0 C9900-M900 and C9900-M998... - Page 15 ð The device is inserted as a box in the tree view and displayed with the respective inputs and outputs (e.g. Term 2 to 5). Label the inputs and outputs (Term 2 to 5) as follows. C9900-M900 and C9900-M998 Version: 1.0...
- Page 16 Product description Term label after activating FreeRun Term label after processing Version: 1.0 C9900-M900 and C9900-M998...
-
Page 17: C9900-M900
Product description 3.6.1 C9900-M900 C9900-M900 and C9900-M998 Version: 1.0... - Page 18 Product description 3.6.2 C9900-M998 Version: 1.0 C9900-M900 and C9900-M998...
-
Page 19: C9900-M998
Mounting Mounting Mounting the push-in strips - C9900-M900 C9900-M900 push-in strips Customer-specific labeling can be carried out in the factory on request. Subsequent mounting of the push-in strips is not possible. Mounting labels C9900-M998 C9900-M900 and C9900-M998 Version: 1.0... -
Page 20: Assembling The Mounting Plate
Mounting Assembling the mounting plate Version: 1.0 C9900-M900 and C9900-M998... -
Page 21: Dimensions
Dimensions Dimensions C9900-M900 C9900-M900 and C9900-M998 Version: 1.0... - Page 22 Dimensions C9900-M998 Version: 1.0 C9900-M900 and C9900-M998...
-
Page 23: Technical Data
Max. 300 mA (at rated voltage) Protection class IP65 Weight C9900-M900 approx.1100 g C9900-M998 approx.1150 g Operating temperature Operation 0...50°C Storage -20 °C to +60 °C Transport -20 °C to +60 °C Permissible relative air 95%, no condensation humidity Certification C9900-M900 and C9900-M998 Version: 1.0... -
Page 24: Support And Service
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there.
