- Page 1 Installtation and Operating instruction C9900-Mxxx Built-in EtherCAT button module Version: Date: 2018-09-19...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Foreword .............................. 5 Notes on the documentation...................... 5 Safety instructions .......................... 6 2 Transport and unpacking.......................... 7 Transport ............................ 7 Unpacking............................ 7 3 Product description........................... 8 Product overview .......................... 8 Connections............................ 9 3.2.1 Power supply ........................ 9 3.2.2 EtherCAT IN/OUT...................... 9 3.2.3 Emergency stop connection .................... - Page 4 Table of contents Version: 1.0 C9900-Mxxx...
-
Page 5: Foreword
EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 7: Transport And Unpacking
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. C9900-Mxxx Version: 1.0... -
Page 8: Product Description

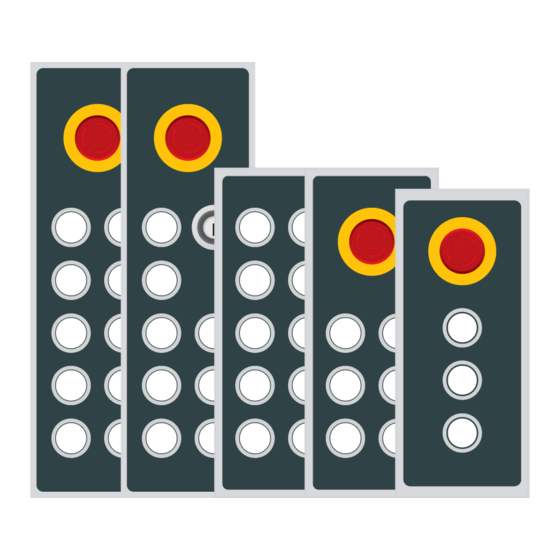

Product description Product description Product overview The C9900-Mxxx EtherCAT button modules are decentralized button input modules designed for installation in control cabinets and plants. The modules, which are implemented in IP65 (front side) and IP40 (rear side), are characterized by the fact that actions or status displays are visible directly on the module. -
Page 9: Connections
Product description Connections Emergency stop EtherCAT Out EtherCAT In Power supply 3.2.1 Power supply Power is supplied to the button module via the 4-pin M12 socket. The protection class of the round connector is equivalent to the IP67 standard. Signal Signal +24 V DC 24V DC... -
Page 10: Emergency Stop Connection
Product description 3.2.3 Emergency stop connection The emergency stop in the push-button extension is connected via the 5-pin connector. Pin assignment (emergency stop) Description NC 1 NC 1 NC 2 NC 2 Connection cable 3.3.1 Power cable with 90° 4-pin round connector Accessories Description C9900-K741 Power cable for Control Panel, drag-chain suitable, with 90°... -
Page 11: Power Cable With 4-Pin Round Connector
Product description 3.3.2 Power cable with 4-pin round connector Accessories Description C9900-K742 Power cable for Control Panel, drag-chain suitable, with 4-pin round connector, 5 m, consisting of: - Power cable 2 x 0.75 mm² conforming to UL, cores color-coded - Side A: Round 4-pin socket - Side B: not used C9900-K743 Power cable for Control Panel, drag-chain suitable, with 4-pin round connector, 10 m,... -
Page 12: Sensor Cable 90° (For Emergency Stop)
ZK2000-6300-0100 Sensor cable, M12, angled 90°, pin, 4-pin, A-coded, open end 10 m 3.3.6 M12 EtherCAT cable for (highly) flexible applications Accessories Description ZK1090-6xxx-xxxx "See Beckhoff I/O price list" Accessories 3.4.1 Torque wrench Accessories Description ZB8800 Torque wrench for M8 cables... -
Page 13: Twincat System Manager
Product description TwinCAT System Manager All key outputs (red, green and blue) must be set to high (1) in order to activate the light ring in white. Before you can use the device it must first be created in the TwinCAT System Manager. Proceed as follows: 1. - Page 14 Product description 4. Select the devices you want to use and confirm the selection with OK. 5. Confirm the request with Yes, in order to look for boxes. 6. Confirm the request whether to enable FreeRun with Yes. ð The device is inserted as a box in the tree view and displayed with the respective inputs and outputs (e.g.
-
Page 15: C9900-M993
Product description 3.5.1 C9900-M993 C9900-Mxxx Version: 1.0... -
Page 16: C9900-M994
Product description 3.5.2 C9900-M994 Version: 1.0 C9900-Mxxx... -
Page 17: C9900-M995
Product description 3.5.3 C9900-M995 C9900-Mxxx Version: 1.0... -
Page 18: C9900-M997
Product description 3.5.4 C9900-M997 Version: 1.0 C9900-Mxxx... -
Page 19: C9900-M899
Product description 3.5.5 C9900-M899 C9900-Mxxx Version: 1.0... -
Page 20: Mounting
Mounting Mounting Mounting the clamp straps max. 1.2 Nm max. 1.2 Nm max. 1.2 Nm max. 1.2 Nm Max. wall thickness 4 mm Version: 1.0 C9900-Mxxx... -
Page 21: Mounting The Push-In Strips
Mounting Mounting the push-in strips Push-in strips Clamping plate for push-in strips The ordered push-in strips are fixed behind the clamping plate. C9900-Mxxx Version: 1.0... -
Page 22: Push-In Strips
Mounting Push-in strips Version: 1.0 C9900-Mxxx... -
Page 23: Dimensions
Dimensions Dimensions C9900-M899 C9900-Mxxx Version: 1.0... - Page 24 Dimensions C9900-M993 Version: 1.0 C9900-Mxxx...
- Page 25 Dimensions C9900-M994 C9900-Mxxx Version: 1.0...
- Page 26 Dimensions C9900-M995 Version: 1.0 C9900-Mxxx...
- Page 27 Dimensions C9900-M997 C9900-Mxxx Version: 1.0...
-
Page 28: Technical Data
Technical data Technical data DANGER Risk of explosion! The button modules must not be used in potentially explosive atmospheres! Properties Description Dimensions See chapter Dimensions [} 23] Ordering information C9900-M993 - 1 x emergency stop (Rafix 22FS+) - 8 x short-stroke keys - 1 x twist lock C9900-M994 - 1 x emergency stop (Rafix 22FS+) - Page 29 Technical data Properties Description Weight C9900-M993 Approx. 980 g C9900-M994 Approx. 980 g C9900-M995 Approx. 790 g C9900-M997 Approx. 710 g C9900-M899 Approx. 670 g Operating temperature Operation 0...50°C Storage -20 °C to +60 °C Transport -20 °C to +60 °C Permissible relative air 95%, no condensation humidity Certification...
-
Page 30: Support And Service
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there.
