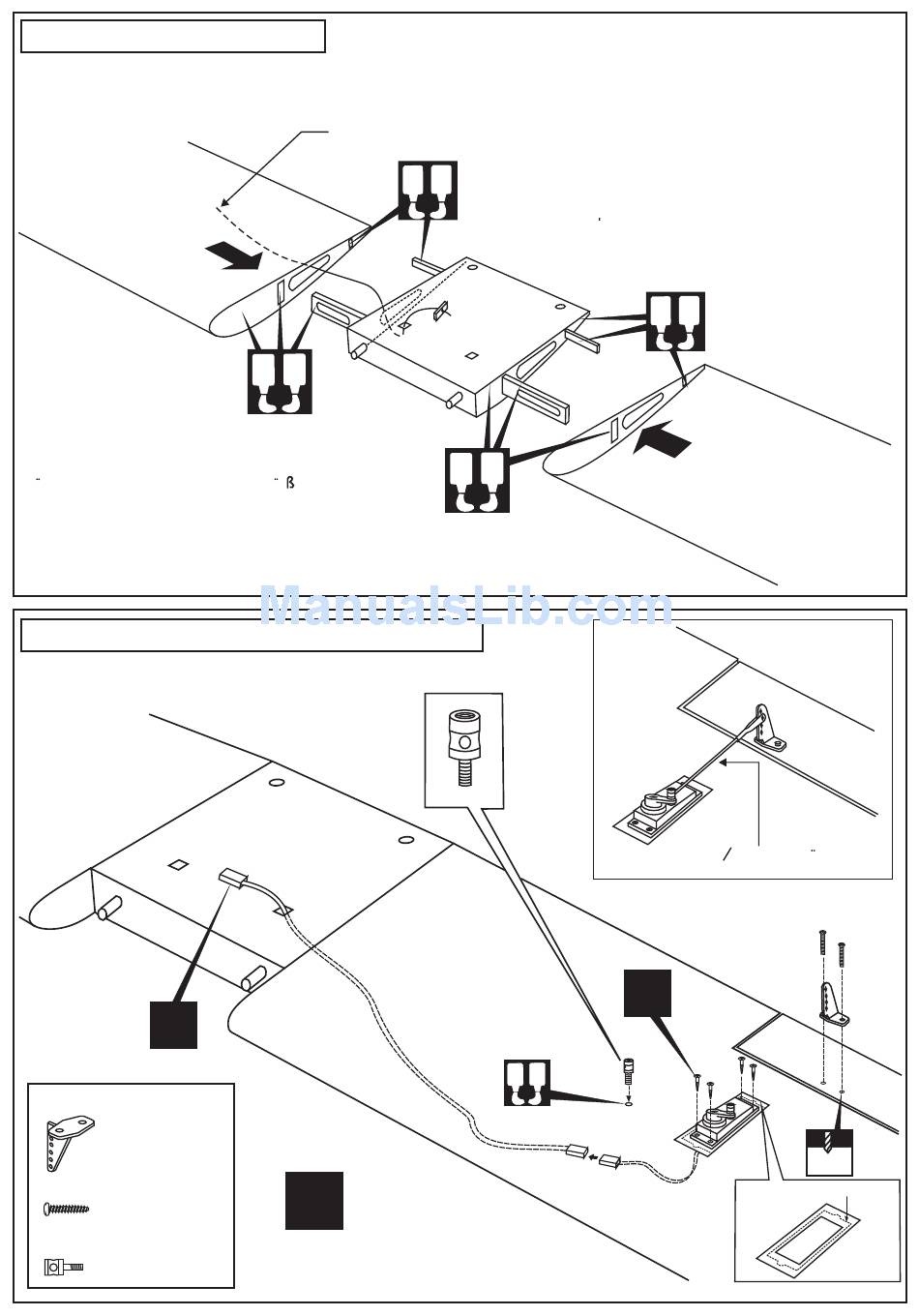

4- Joining the wing
Die Teile probehalber zusammenstecken
und ggf. etwas nacharbeiten.
WARNING: Securely glue together, if coming of
during flights, you lose control of your plane
which lead to accidents.
Fuhren Sie die Verkiebungen mit gro ter
Sorgfalt aus.
IMPORTANT:
Please do not clean off the excess epoxy on the wing with strong solvent
or pure alcohol, only use kerosene to keep the colour of your model not fade.
5- Installing the linkages / Einbau RC-Anlage
X
Plastic control horn
............................2
2x20mm screw
......................4
Linkage Stopper set
.....................2
/ Fläche
BOTTOM - VIEW / Unteransicht
To aileron extension cord
A B
Gestängeanschluss
L/R
BOTTOM - VIEW / Unteransicht
1-Trial fit each part before gluing . Be certain
that there are no gaps. If the parts will join,
but with a gaps, sand or trim the parts a little
at a time until the parts meet exactly with no
gaps.
2-Check for the correct dihedral angle
3-When joining the wing halves it is extremely
important to use plenty of epoxy (30 minutes
A B
epoxy).
4-Carefully slide the wing halves together,
ensuring that they are accurately aligned,
Firmly press the two halves together, allowing
the excess epoxy run out
A B
A B
A B
1.2mm O Alenk-Gestange
2x20mm screw
X
Cut here for standard servo
2mm
