VQ Model VQA037Y Instruction Manual page 3

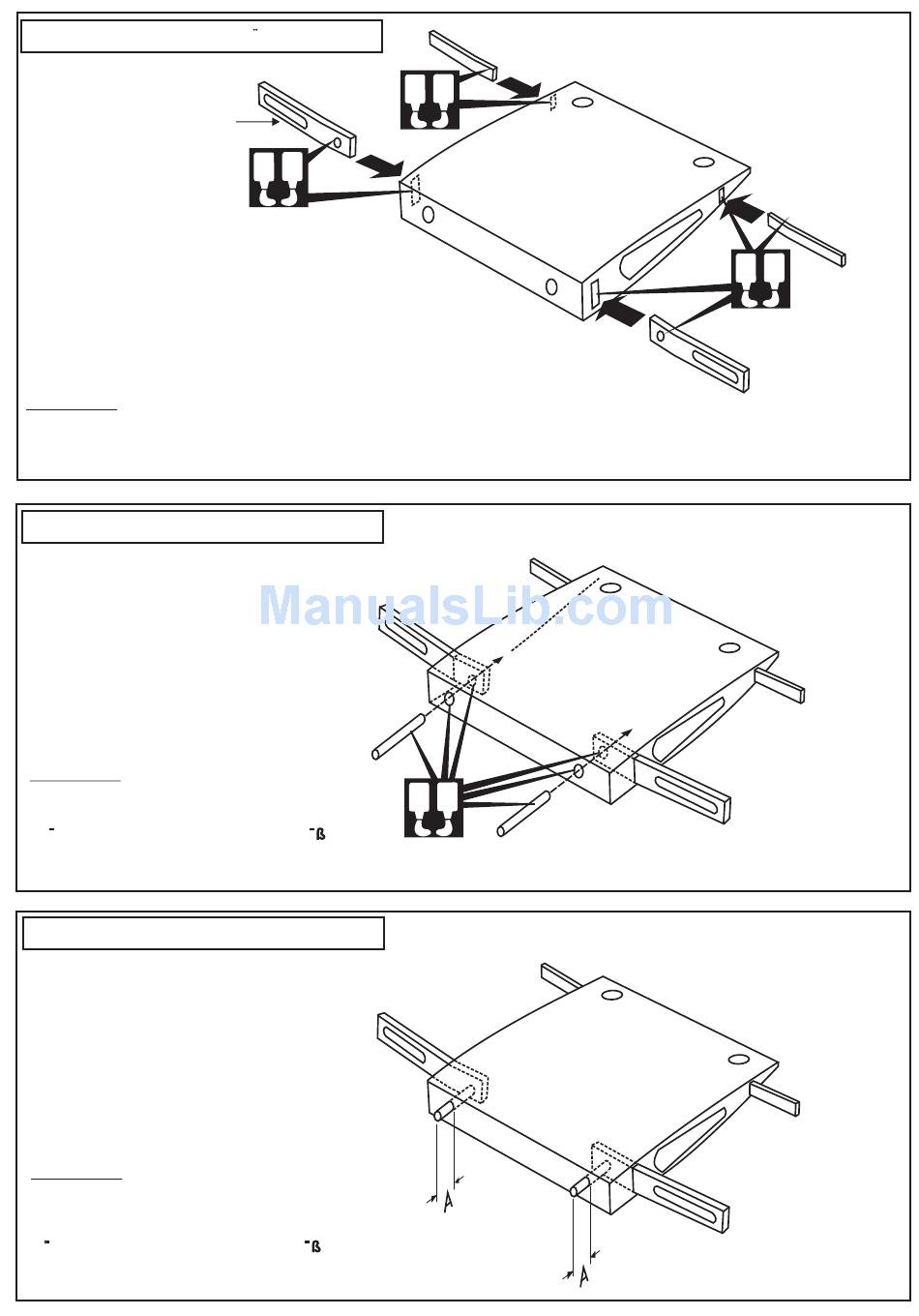

1- Wing Joiner / Flachenverbinder
6mm plywood
Tragflächenverbinder
1-Trial fit each part before gluing . Be certain
that there are no gaps. If the parts will join,
but with a gaps, sand or trim the parts a little
at a time until the parts meet exactly with no
gaps.
2-Check for the correct dihedral angle
3-When joining the wing halves it is extremely
important to use plenty of epoxy (30 minutes
epoxy).
WARNING!: Securely glue together, if coming of
during flights, you lose control of your plane
which lead to accidents.
2- Wing Joiner / Flächenverbinder
Trial fit each part before gluing . Be certain
that there are no gaps. If the parts will join,
but with a gaps, sand or trim the parts a little
at a time until the parts meet exactly with no
gaps.
Die Teile probehalber zusammenstecken
und ggf. Etwas nacharbeiten.
WARNING!: Securely glue together, if coming of
during flights, you lose control of your plane
which lead to accidents.
Fuhren Sie die Verklebungen mit gro ter
Sorgfalt aus
3- Wing Joiner / Flächenverbinder
WARNING!: Securely glue together, if coming of
during flights, you lose control of your plane
which lead to accidents.
Fuhren Sie die Verklebungen mit gro ter
Sorgfalt aus
A B
A B
A B
A = 10mm
3mm plywood brace
Tragflächenverbinder
6mm plywood brace
Tragflächenverbinder
TOP VIEW / Draufsicht
7mm diameter wooden dowel
A B
TOP VIEW / Draufsicht
TOP VIEW / Draufsicht
