VQ Model VQA037Y Instruction Manual page 2

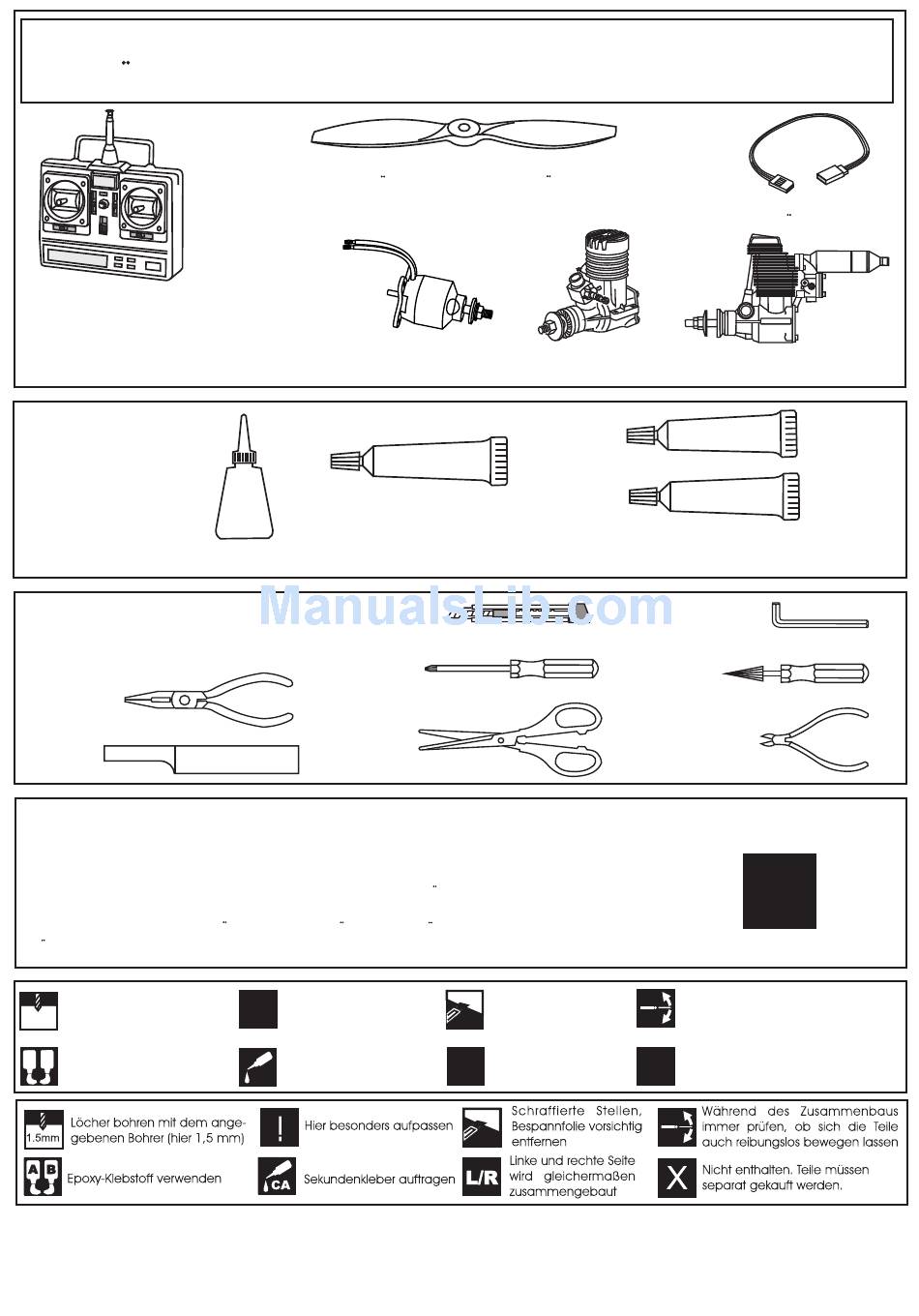

REQUIRED FOR OPERATION (Purchase separately)
BENOTIGTE KOMPONENTEN (Nicht im Lieferumfang enthalten)
Minimum 5 channel radio
for airplane
Minimum 5 Kanal
Fernsteuerung
Cyanoacrylate Glue
Sekundenkleber
Tool Required/ Erfoderliches Werkzeug
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
The pre-covered film on ARF kit may wrinkle due to variations of temperature.
Store model in a cool and dry place for awile.
Then, staring with low heat, you may carefully use a hair dryer to smooth out wrinkels.
Die Bespannung des Modells kann durch Temeratureinflusse erschlaffen oder Falten
werfen z.b bei zu starker Sonnenenstrahlung oder Hitze.
Stellen Sie das Modell zunachst an einen kuhlen Platz fur eine bestimmte Zeit. Danach
konnen Sie versuchen die restlichen Falten vorstichtig mit einem Haartrockner zu behandeln.
Drill holes using the stated
size of drill
1.5mm
(in this case 1.5 mm Ø)
A B
Use epoxy glue
CONVERSION TABLE
3.0mm = 1/8"
1.0mm = 3/64"
4.0mm = 5/32"
1.5mm = 1/16"
5.0mm = 13/64"
2.0mm = 5/64"
6.0mm = 15/64"
2.5mm = 3/32"
Propeller 11x8 for electric motor / 11x6 for glow engine
Luftschraube 11x8 fur Elektromotor / 11x6 fur Verbrennungsmotor
Brushless Motor
PICHLER BOOST 40
Brushless ESC
Brushless Regler
Battery / Flugakku LEMONRC 3700-11.1V
SILICON
CA
!
Take particular care here
Apply cyano glue
CA
10mm = 13/32"
12mm = 15/32"
15mm = 19/32"
20mm = 51/64"
.46 cu.in. (7.5cc)
Silicon Glue
Silikonkleber
Hatched-in areas:
remove covering
film carefully
Assemble left and right
L/R
sides the same way.
25mm = 1"
30mm = 1-3/16"
45mm = 1-51/64"
Extension cord
Servoverlangerungskabel
.52 cu.in (8.5cc)
EPOXY A
EPOXY B
Epoxy Glue (30 minutes type)
Epoxy-Klebstoff (30min)
!
Check during assembly that these
parts move freely, without binding
Not included.
X These parts must be
purchased separately
